SECTION 3 BACKGROUND MUSIC
3.1 Installing Background Music
Background Music (BGM) sends music from a customer-provided music
source to speakers in keysets. If an extension user activates it, BGM plays
whenever the user’s extension is idle.
1. Connecting to the GCD-CP10:
Connect an RCA line from the CN8 or CN9 connector on the GCD-CP10
to the appropriate location on the extension cross-connect block.
2. Connect the two-conductor station cable from the cross-connect block to
the external music source.
3. Install bridging clips as required.

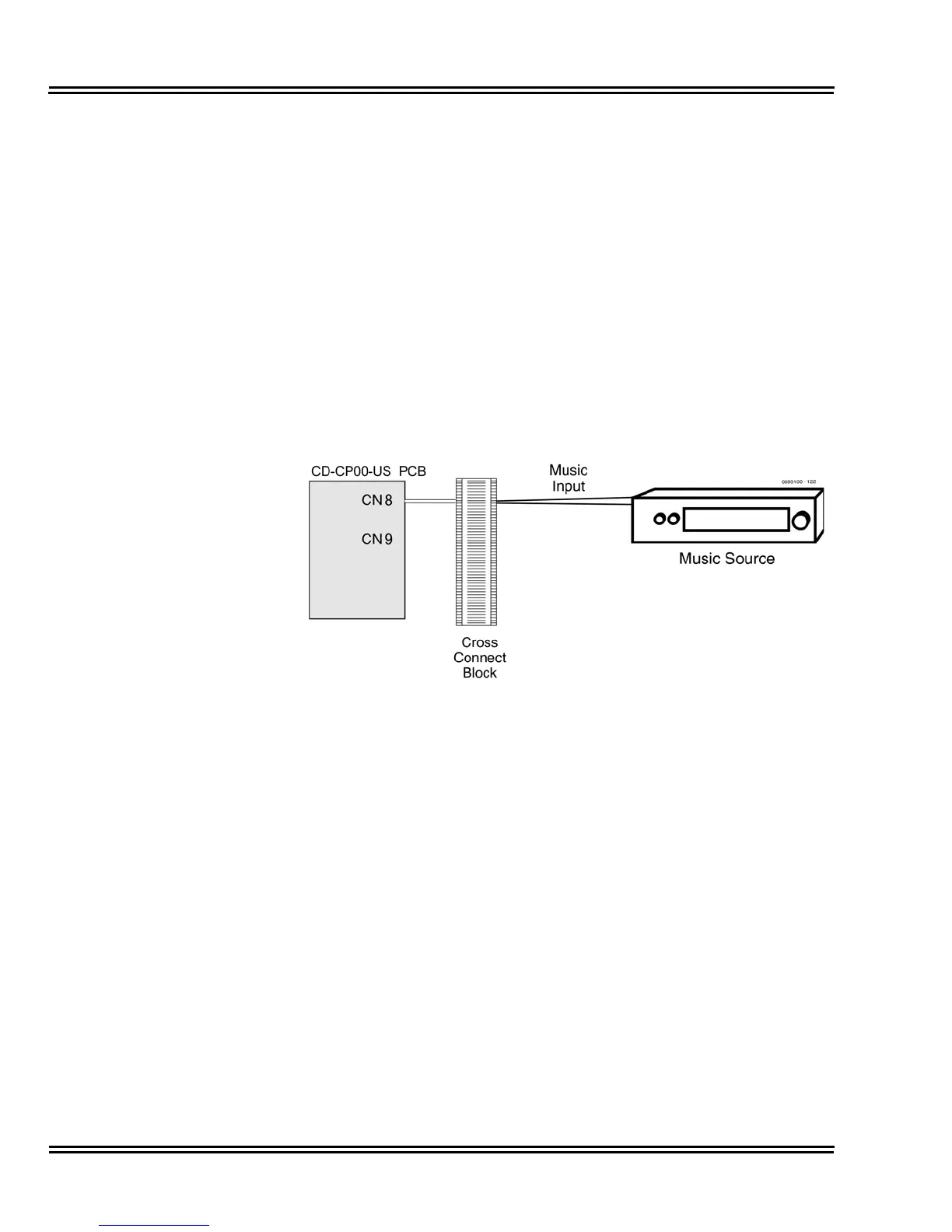

Figure 6-10 CPRU Connections
