Issue 1.2 UNIVERGE SV9100
4 - 38 Installing the SV9100 Blades
4.2.2 Installation
The GPZ-8DLCB is installed on the GCD-8DLCA. To install:
1. Connect the GPZ-8DLCB to the CN2 connector on the
GCD-8DLCA blade. Refer to Figure 4-9 GCD-8DLCA/GCD-
16DLCA/ Blade on page 4-32 for the location of the connectors
on the blade.
2. Install the GCD-8DLCA into a slot.
3. Each CNx01 connector (CN101, CN201, CN301, CN401) is
used to connect up to four digital extensions.
4.2.3 GPZ-8DLCB Daughter Board Cable Connection
The GPZ-8DLCB blade has connections for CN301 and CN401
Refer to for connector locations.
The following tables show the cable connections of the two RJ-61
connectors on the GPZ-8DLCB.

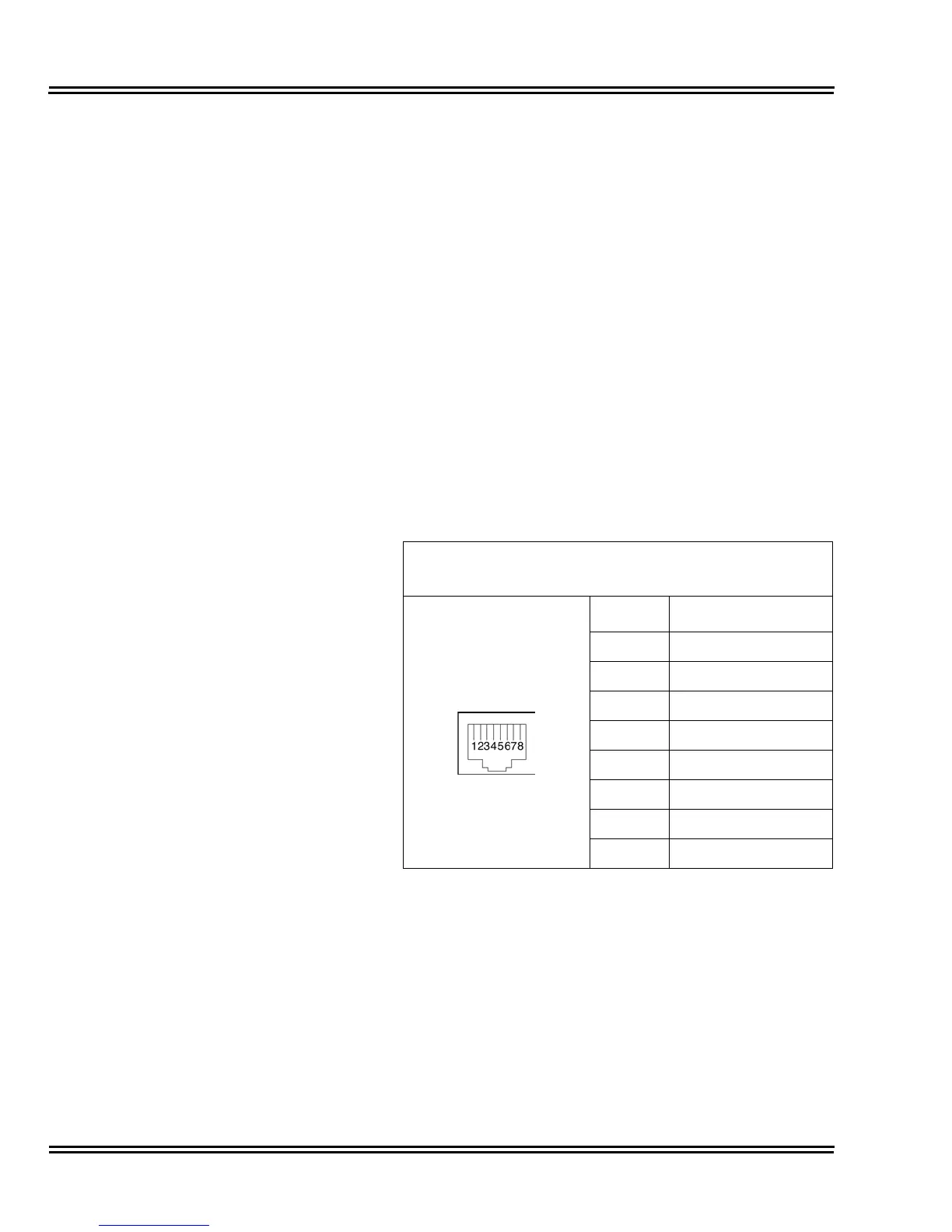

Table 4-17GPZ-8DLCB CN301 Connection
RJ-61 Cable Connector
CN301 (ports 9~12)
Pin No. Connection
1 (T4) Tip for port 12
2 (T3) Tip for port 11
3 (T2) Tip for port 10
4 (R1) Ring for port 9
5 (T1) Tip for port 9
6 (R2) Ring for port 10
7 (R3) Ring for port 11
8 (R4) Ring for port 12
