8. Align the door tabs with hinges and reattach the cover.
9. Close the GPZ-BS11 blade cover.
1.1.2.4 Connect the Controlling and Expansion Chassis

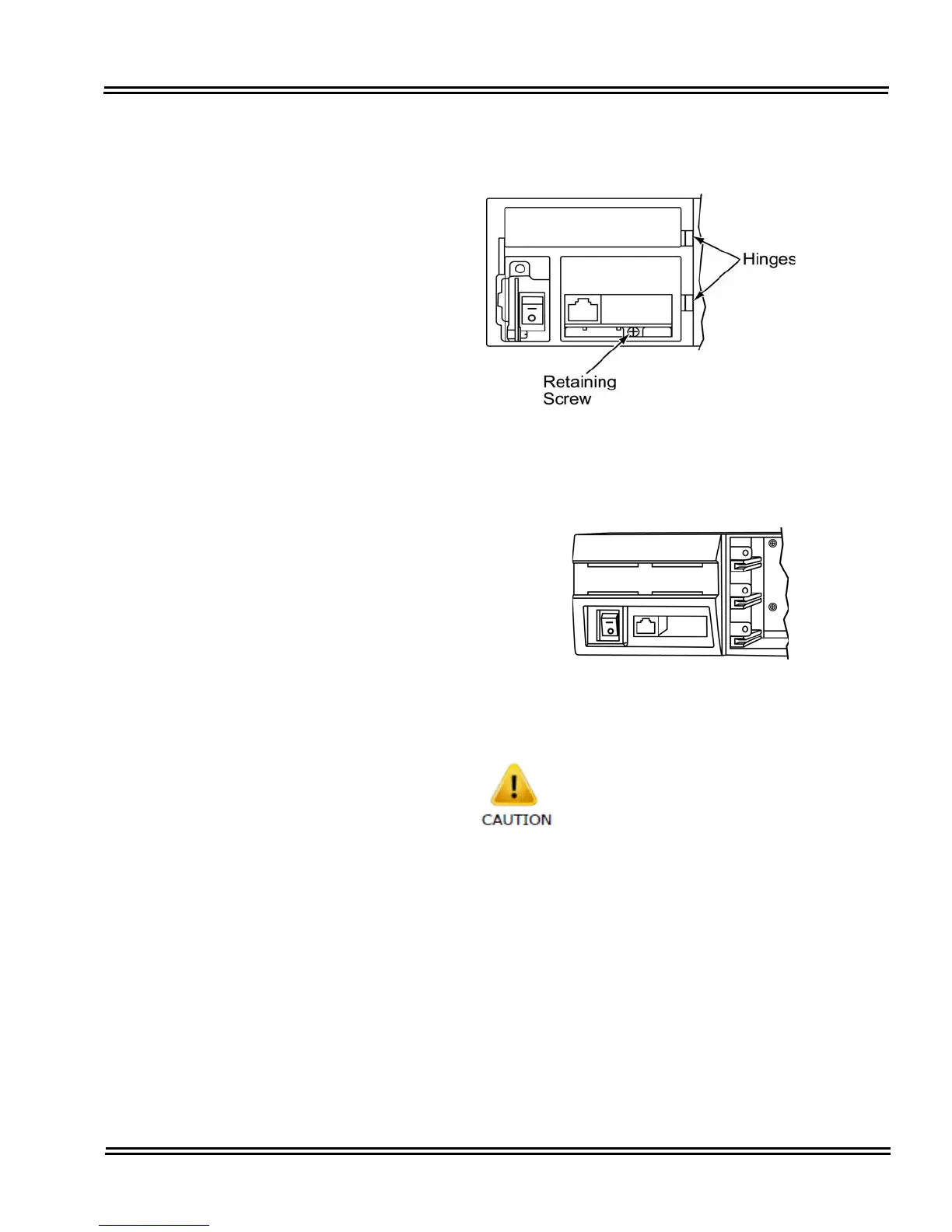

Figure 3-18 GPZ-BS11 Blade Installed
Figure 3-19 GPZ-BS11 Installed (Cover Closed)
Installment of the GPZ-BS10 blade and
GPZ-BS11 blade(s) must be completed prior to
installation of the provided (CAT 5) expansion
cabling
