5 - 78 Installing DT Series Digital and IP Multiline Terminals
8. Open the small door covering the side option
connectors by pulling the cover handle to the front.
9. Connect the cable from the 8LK-L UNIT to the side
option connector (see Figure 5-75 Install the 8LK-L
UNIT Cable) on the multiline terminal and close the
cover.
10. Attach the side panel to the side of the 8LK-L UNIT.
11. Return the multiline terminal to the buttons side up
position.
12. Complete the installation by reattaching both plastic
panels to the front of the multiline terminal.
5.2.2 8LKD (LD)-L (BK) UNIT/8LKD (LD)-L (WH) UNIT
Provides eight additional line keys to DT300 Series (DTL) terminals.
The unit features:
 Mounts directly to top side of terminal
 Supports Desi-less 2 LCD panels
 Eight line keys by four pages

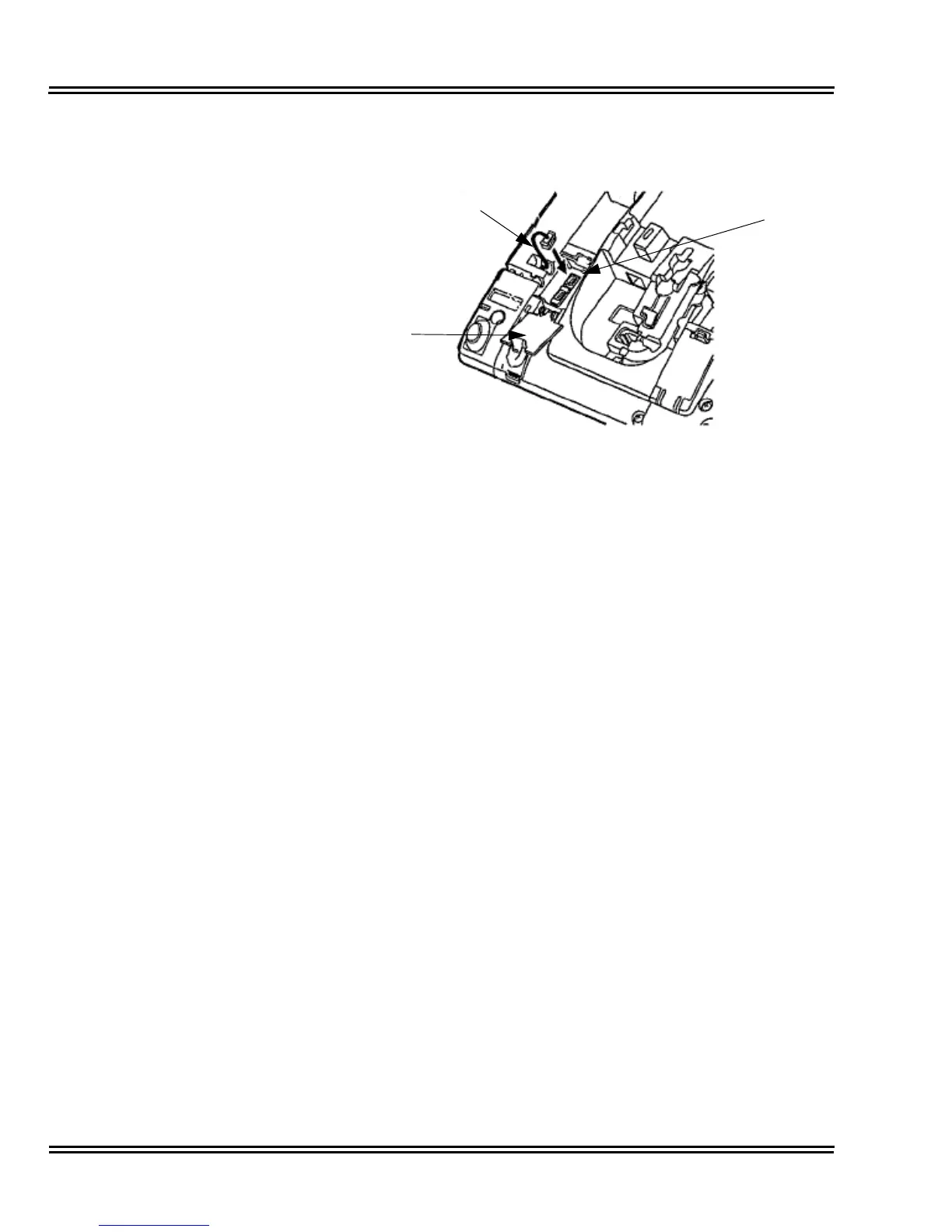

Figure 5-75 Install the 8LK-L UNIT Cable
Telephone
Connection Cable
Side Option
Connector
Cover
