Issue 1.2 UNIVERGE SV9100
4 - 84 Installing the SV9100 Blades
5.7.5 Connections
Figure 4-23 Voice Signal Connection for Type I And V on page 4-84
and Figure 4-24 Control Signal Connection on page 4-85 show the
signaling methods for circuit types.

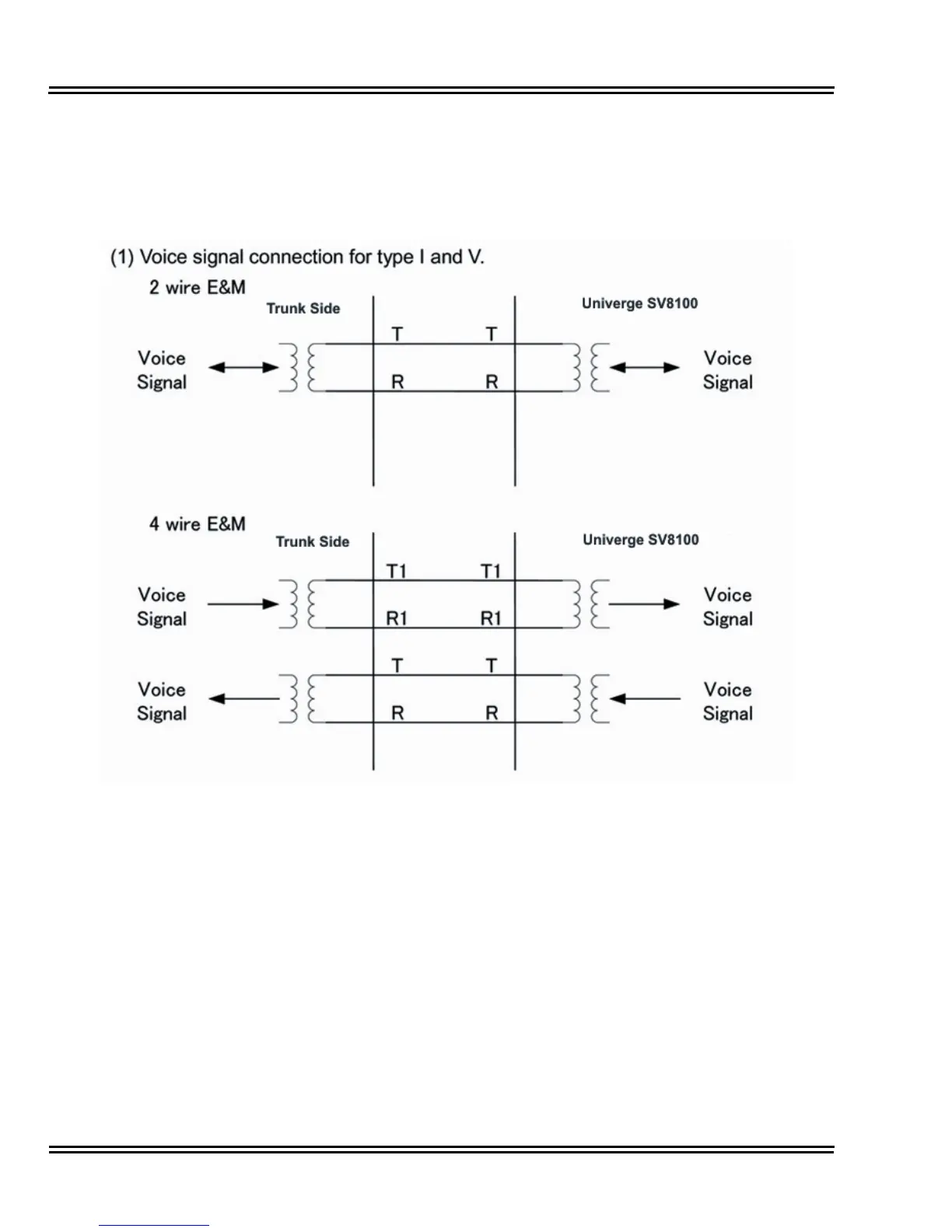

Figure 4-23 Voice Signal Connection for Type I And V
