10.9 Mounting the Base to a Standard Wall Plate
The base unit is designed to be mounted on standard wall plate. To attach the
wall mount stand to the base unit:
1. Slide the wall mount stand into the notches at the top of the base unit.
Rotate the wall mount stand down and snap it into place.
2. Plug the AC adapter into the base unit.
3. Place the AC adapter cord inside the molded channel of the wall mount

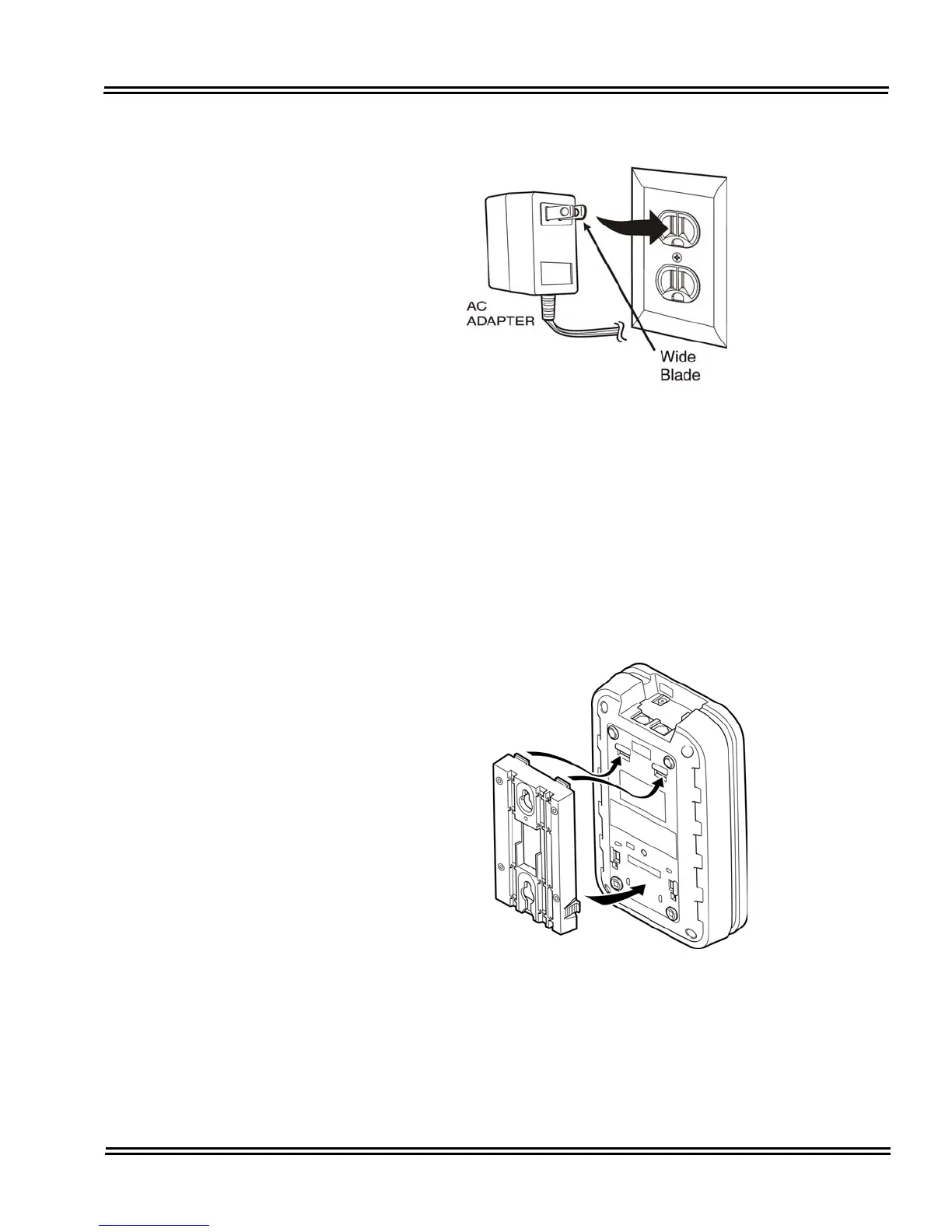

Figure 5-155 Polarized Plug
Figure 5-156 Attaching the Wall Mount Stand to the Base Unit
