NEC Univerge SV9100 - Connectors

Issue 1.2 UNIVERGE SV9100
4 - 72 Installing the SV9100 Blades
5.5.4 Connectors
The CN2 connector provides connection to four analog DID trunk
ports, which are polarity sensitive (tip-to-tip, ring-to-ring). The
OPX circuits, however, are not polarity sensitive. The DIOPU
requires one universal slot. (Refer to Figure 4-18 GCD-4DIOPB
Blade on page 4-70.) If Program 10-03-01 has OPX defined, note
that the blade consumes four (4DIOPU) trunks or eight (8DIOPU)
trunks and extension ports when installed. If OPX is not defined,
then only trunks ports are consumed.
Table 4-38 GCD-4DIOPB RJ-61 Cable Connector Pin-Outs on page
4-72 shows the pin-outs for the RJ-61 connector. Refer to Figure
4-18 GCD-4DIOPB Blade on page 4-70 for an illustration showing
the location of the connectors on the 4DOIPU blade.

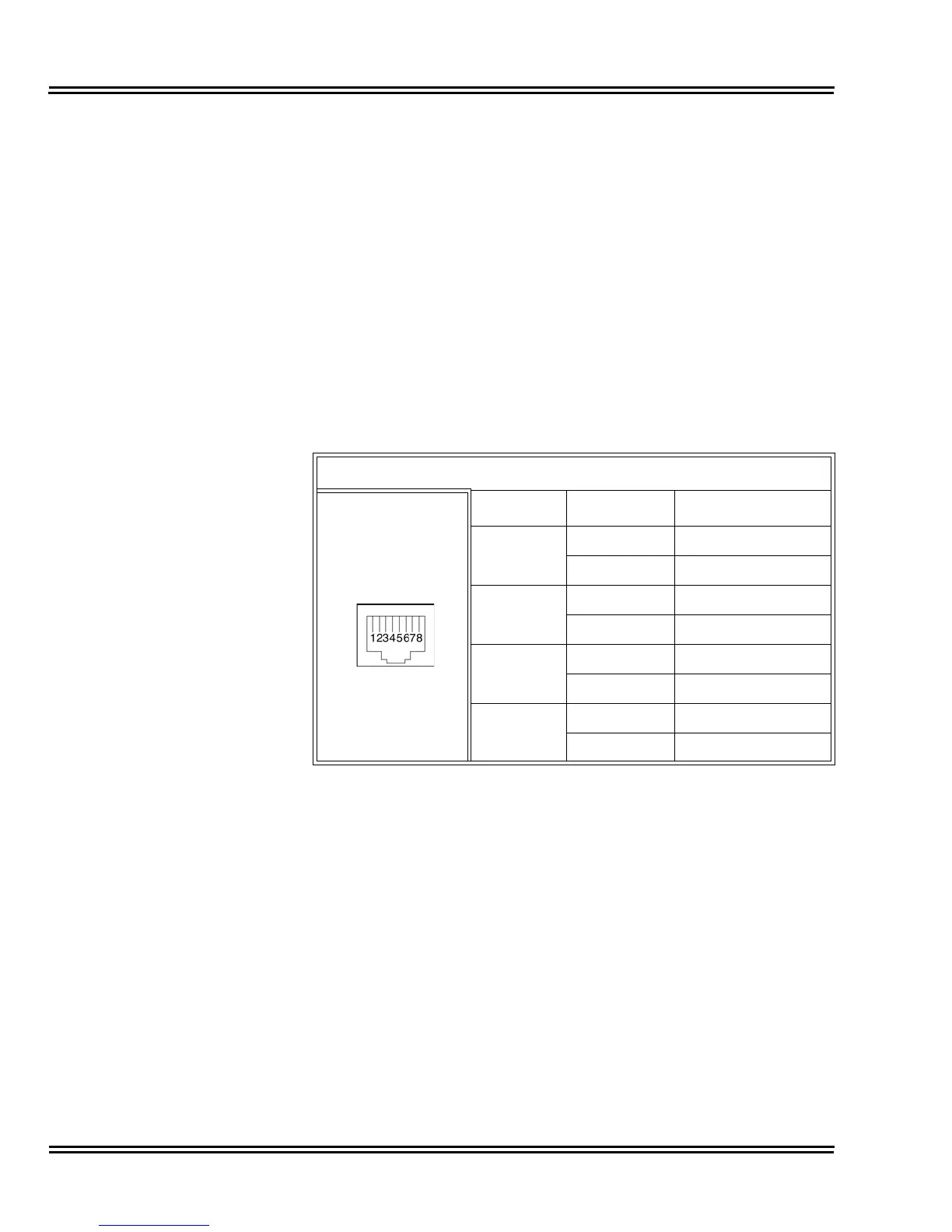

Table 4-38 GCD-4DIOPB RJ-61 Cable Connector Pin-Outs
RJ-61 Cable Connector – CN2
Line No. Pin No. Connection
15 Tip
4 Ring
23 Tip
6 Ring
32 Tip
7 Ring
41 Tip
8 Ring
