2.2 Installing an Extension or Trunk Blade
2.2.1 Installing the Blades
To install an extension/trunk blade with the system running:
1. Insert the blade within the guide rail and push the blade
securely into position. Tighten the thumb screws on either side
of the blade.
2. The Status LED starts flashing when the blade starts
processing (15 seconds).

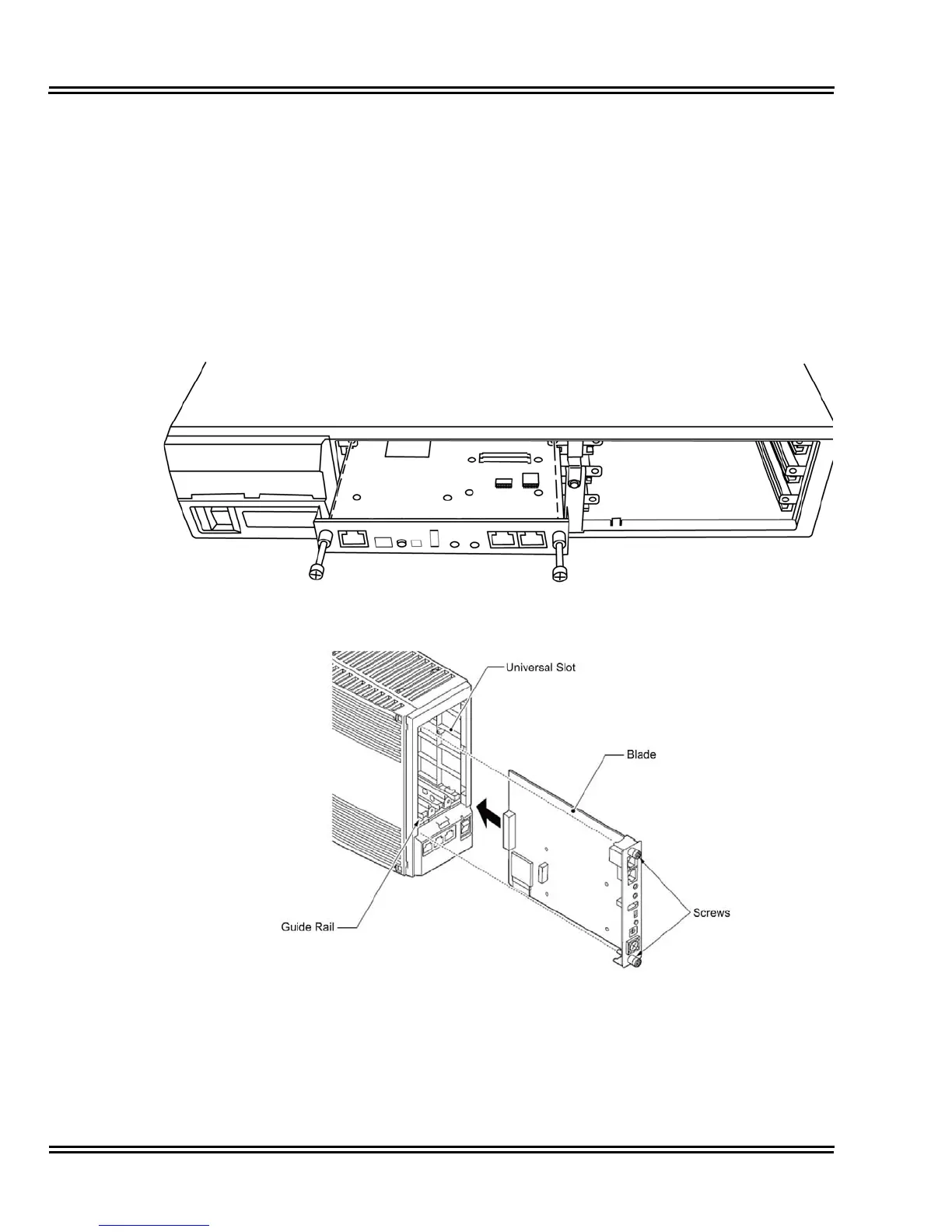

Figure 4-2 Inserting Blades in the Chassis
