UNIVERGE SV9100 Issue 1.2

System Hardware Manual 3 - 67

8. Apply power to chassis (refer to Chapter 4, 2.6 Powering Up the

SV9100 on page 4-9).

6.2.4 CHS LARGE BATT BOX Fuse Replacement

1. Loosen screw on front of CHS LARGE BATT BOX.

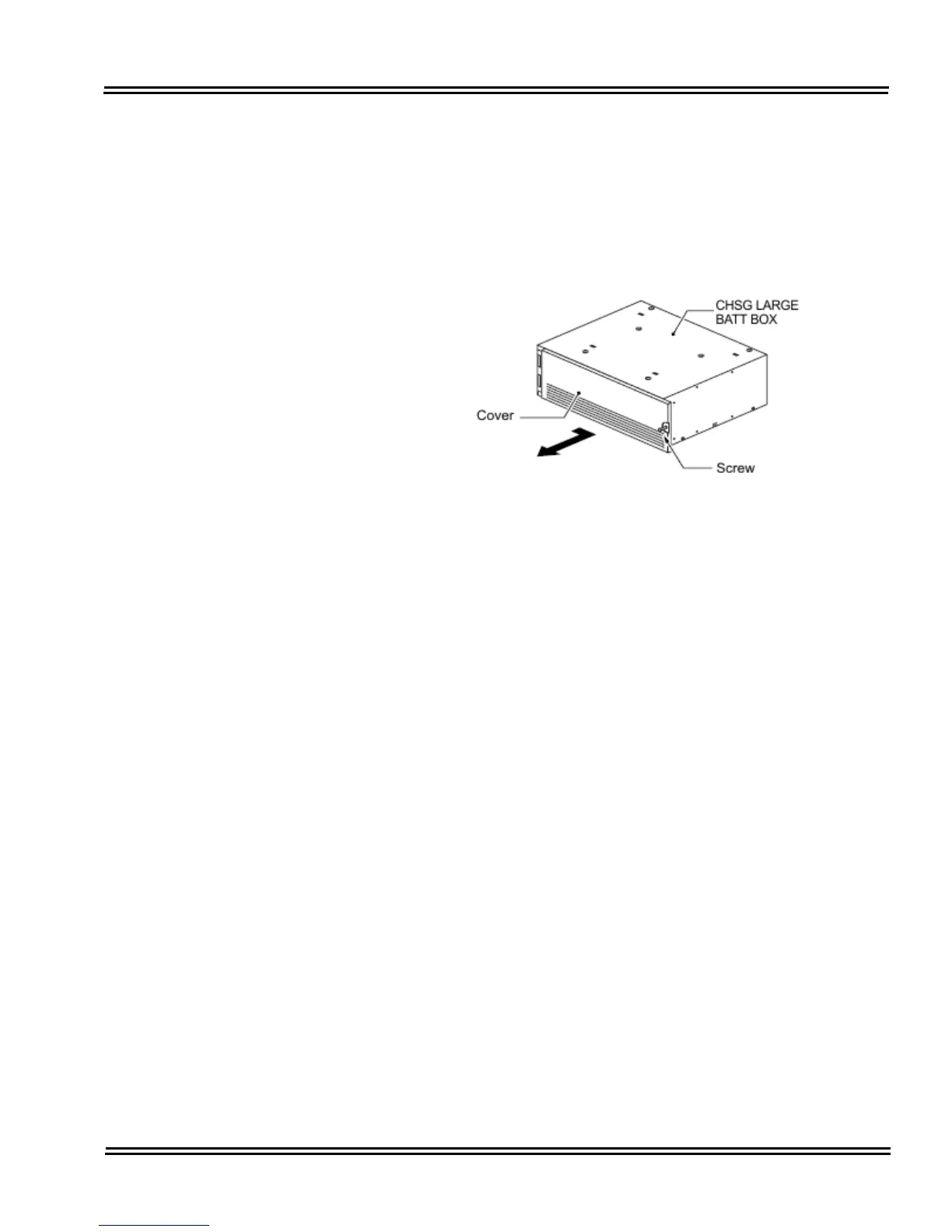

Figure 3-93 Removing CHSG LARGE BATT BOX Cover
