7.4 Installing the Bluetooth Cordless Handset
The BCH-L (BK) UNIT is an optional device that transforms the standard
DT300 series multifunctional telephone into a cordless terminal. This section
explains how to transform the standard hand-set into a BCH-L (BK) UNIT. The
BCH-L (BK) UNIT cannot be connected to the DTL-2E-1, DTL-6DE-1, DT400,
DT700 or DT800 telephones.
7.4.1 Installing the Bluetooth Handset Cradle
1. Turn multiline terminal upside down.
2. Unplug the line cord and handset cord from the multiline
terminal.
. Only one BCH-L (BK) UNIT can be attached to the DTL multiline
terminal.
3. Lower the tilt leg to the first position (refer to Figure 5-120
Separate Tilt Leg from Leg Support).
4. Push the two stopper tabs through the slots to separate the tilt
leg from the leg support.
5. Lay the tilt leg and the leg support flat.
6. Press the two tabs locking the legs to the multiline terminal and
pull the legs toward you, lifting to remove (refer to Figure 5-121
Remove Legs From Multiline Terminal on page 5-110).

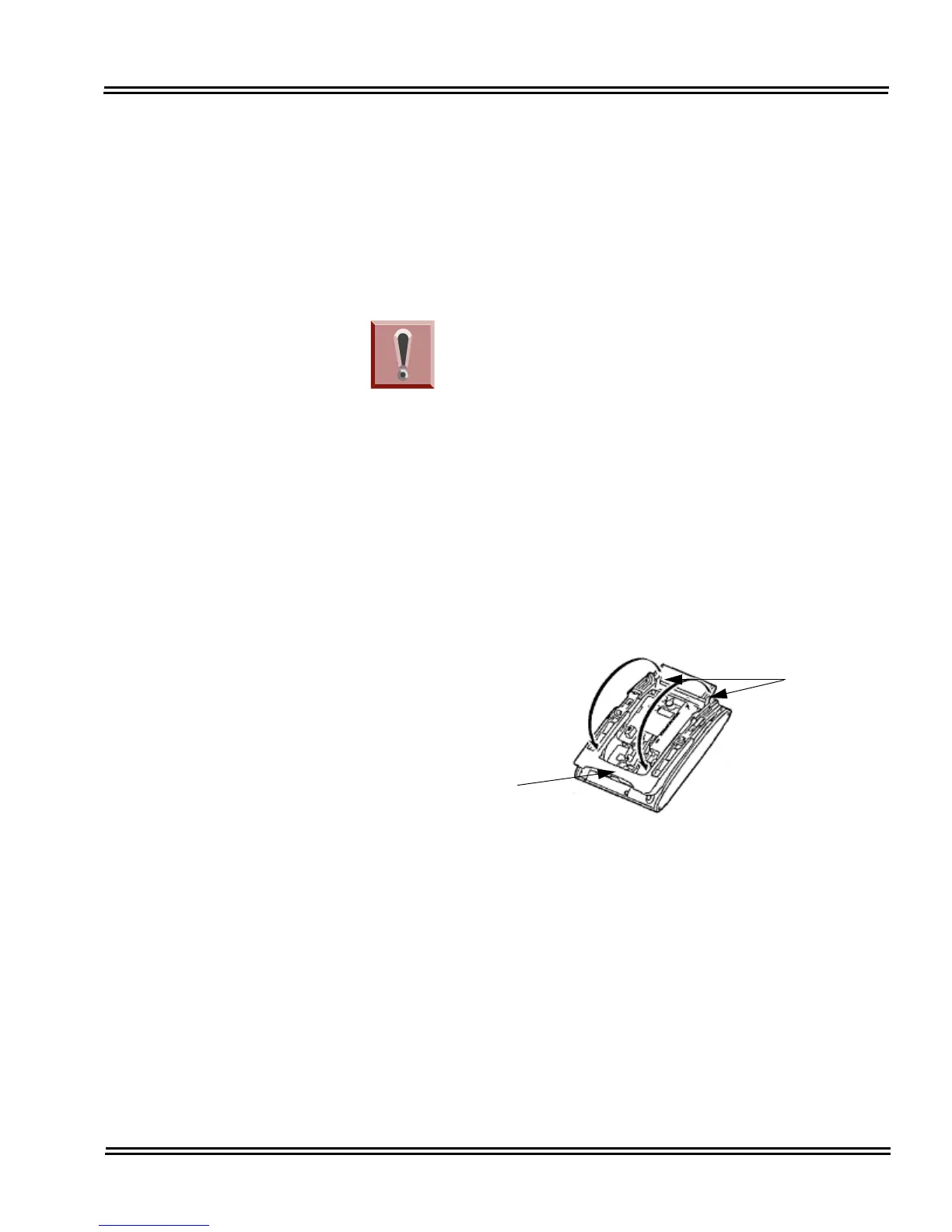

Figure 5-120 Separate Tilt Leg from Leg Support
