Issue 1.2 UNIVERGE SV9100
6 - 40 Installing SV9100 Optional Equipment
impedance (factory setting is 1).
11.4.2 Installing the APR-L UNIT
Perform the following to connect the APR-L UNIT to the Bottom
Option Interface located underneath the DTL multiline terminal.
. Only one APR-L UNIT can be installed.
1. Unplug the line cord from the keyset.
2. Turn the DTL multiline terminal upside down.
3. Lower the tilt leg to the first position (refer to Figure 6-30
Separate Tilt Leg from Leg Support).
4. Push the two stopper tabs through the slots to separate the tilt
leg from the leg support.
5. Lay the tilt leg and the leg support flat to expose APR-L UNIT
compartment.
6. Carefully pry loose the knockout covering the bottom option
interface (refer to Figure 6-31 Bottom Option Interface
Knockout on page 6-41).

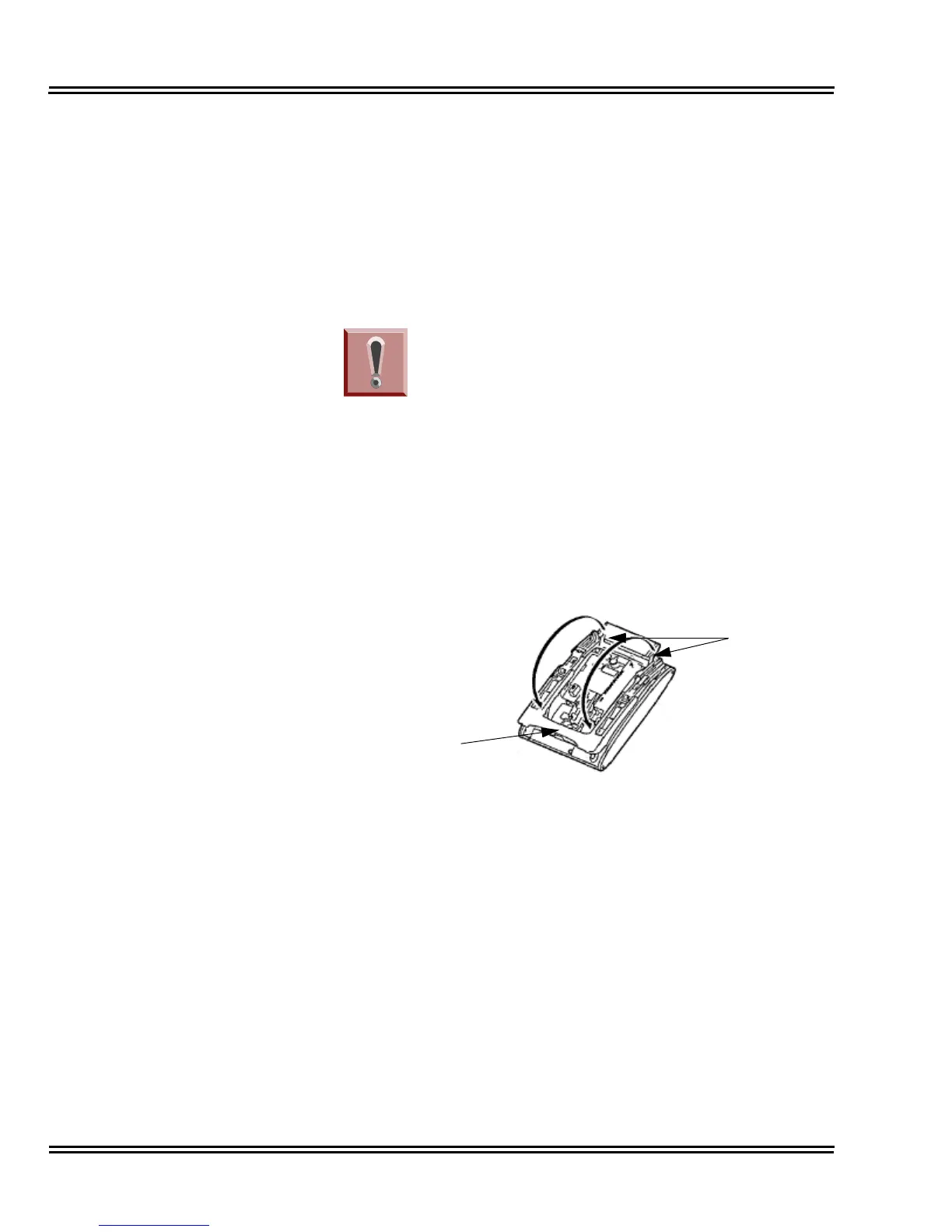

Figure 6-30 Separate Tilt Leg from Leg Support
To prevent possible damage to the APR-L
UNIT or the DTL multiline terminal during
installation or removal, disconnect the line
cord and the AC/DC adapter from the DTL
multiline terminal.
