NEC Univerge SV9100

Issue 1.2 UNIVERGE SV9100
5 - 42 Installing DT Series Digital and IP Multiline Terminals
3.2.5 ITZ-8LDG-3 (BK)/(WH) TEL
This IP value multiline terminal has eight line keys with display and is
available in both black and white. The terminal features:
 Modular design
 Four-step adjustable base
 Seven-color LED for incoming calls
 Two 224 X 96 full dot gray scale LCDs with cursor keys
 DESI-Less line key displays eight lines per page (four pages of eight
lines available using scroll key)
 Backlit Numbered Keypad for easy viewing
 10 Base-T/100 Base-TX/1000 BASE-T network interface
 Full-duplex handsfree operation
 Wideband handset
 IEEE 802.3af compliant
 XML open interface
 Backlit LCD

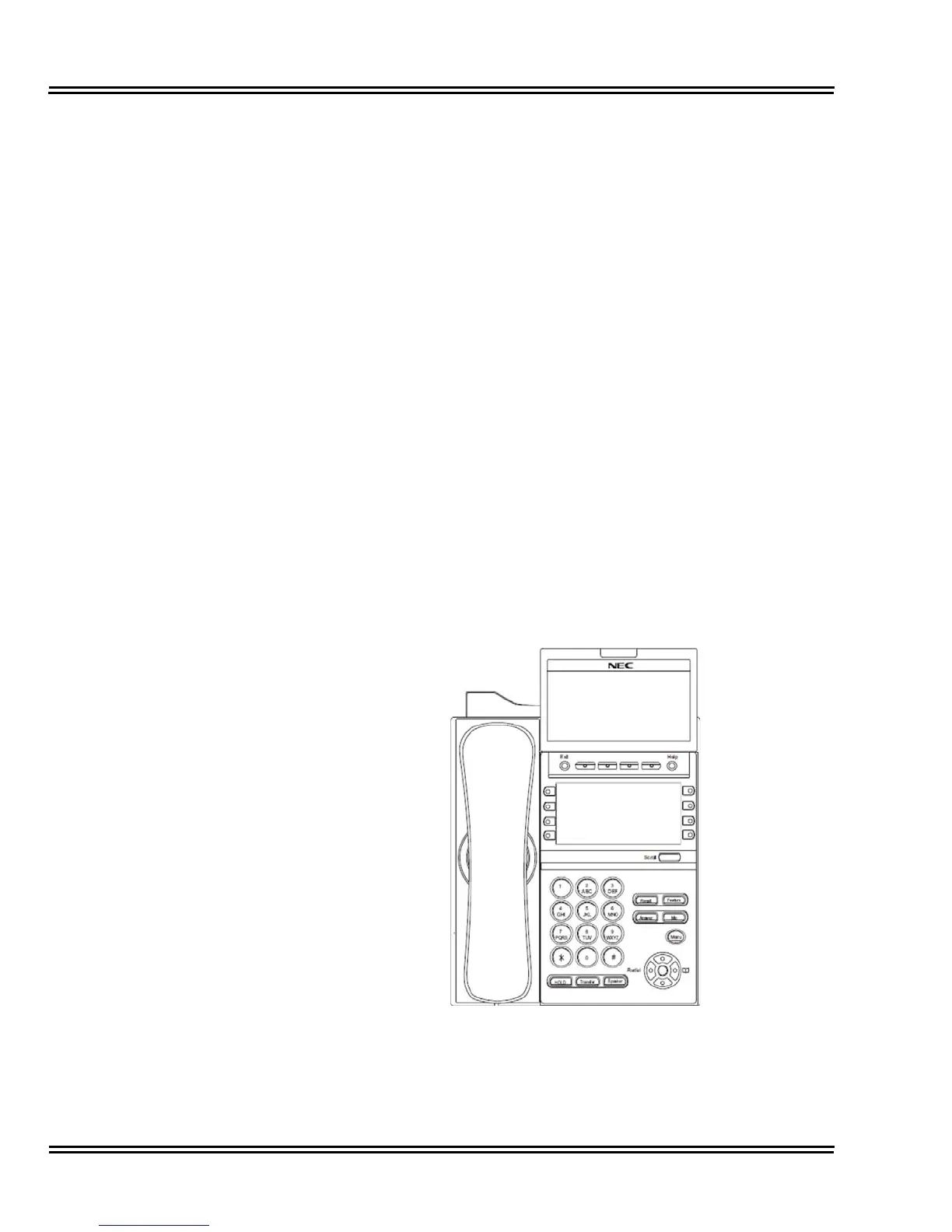

Figure 5-29 ITZ-8LDG-3 TEL
