Issue 1.2 UNIVERGE SV9100
5 - 82 Installing DT Series Digital and IP Multiline Terminals
11. Holding the LCD in place, turn the multiline terminal
button side down.
12. Install the screw (refer to Figure 5-81 Install Screw).
13. Attach the side panel to the side of the 8LKD (LD)-L
UNIT (refer to Figure 5-87 Install Screw on page
5-86).
14. Return the multiline terminal to the buttons side up
position.
15. Connect the line cord/LAN cable and the AC/DC
adapter to the DTL multiline terminal.
5.2.3 8LKI (LD)-L (BK) UNIT/8LKI (LD)-L (WH) UNIT
Provides eight additional line keys to DT700 Series (ITL) DESI-less
terminals. The unit features:
 Mounts directly to top side of terminal
 Supports Desi-less 2 LCD panels
 Eight line keys by four pages

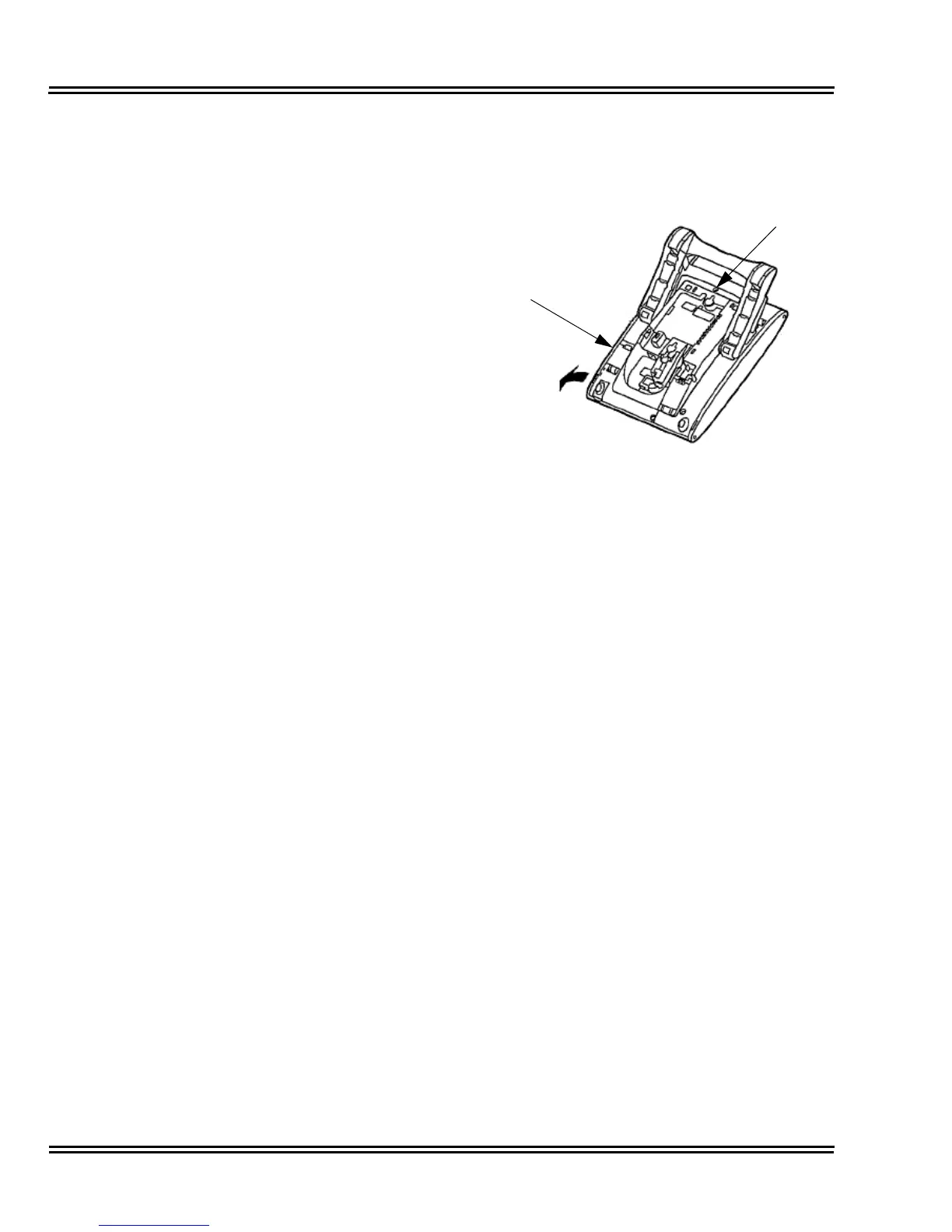

Figure 5-81 Install Screw
Side Panel
Screw
