Issue 1.2 UNIVERGE SV9100
3 - 36 Installing the SV9100 Chassis
6. Align the upper and lower bracket holes with the heads of
anchor bolts mounted on the wall and slide downward.
7. Connect grounding wire to chassis. Refer to Chapter 4
paragraph 1.3 Installing the 9.5” Chassis on page 3-18 for
complete details on grounding the system.
8. Refer for installation of the power cord to Chapter 6
paragraph 2.1 Installation and Safety Precautions on page
4-3 for installation of blades.
SECTION 3 FLOOR MOUNTING THE CHASSIS
3.1 Floor Mounting the 19” (CHS2UG) Chassis
The CHS2UG controlling and expansion chassis can be mounted on the floor
using the CHS BASE UNIT and the CHS2UG JOINT BRACKET KIT.
3.1.1 CHS2UG Chassis Installation
1. Use the template shown in below for required spacing before drilling

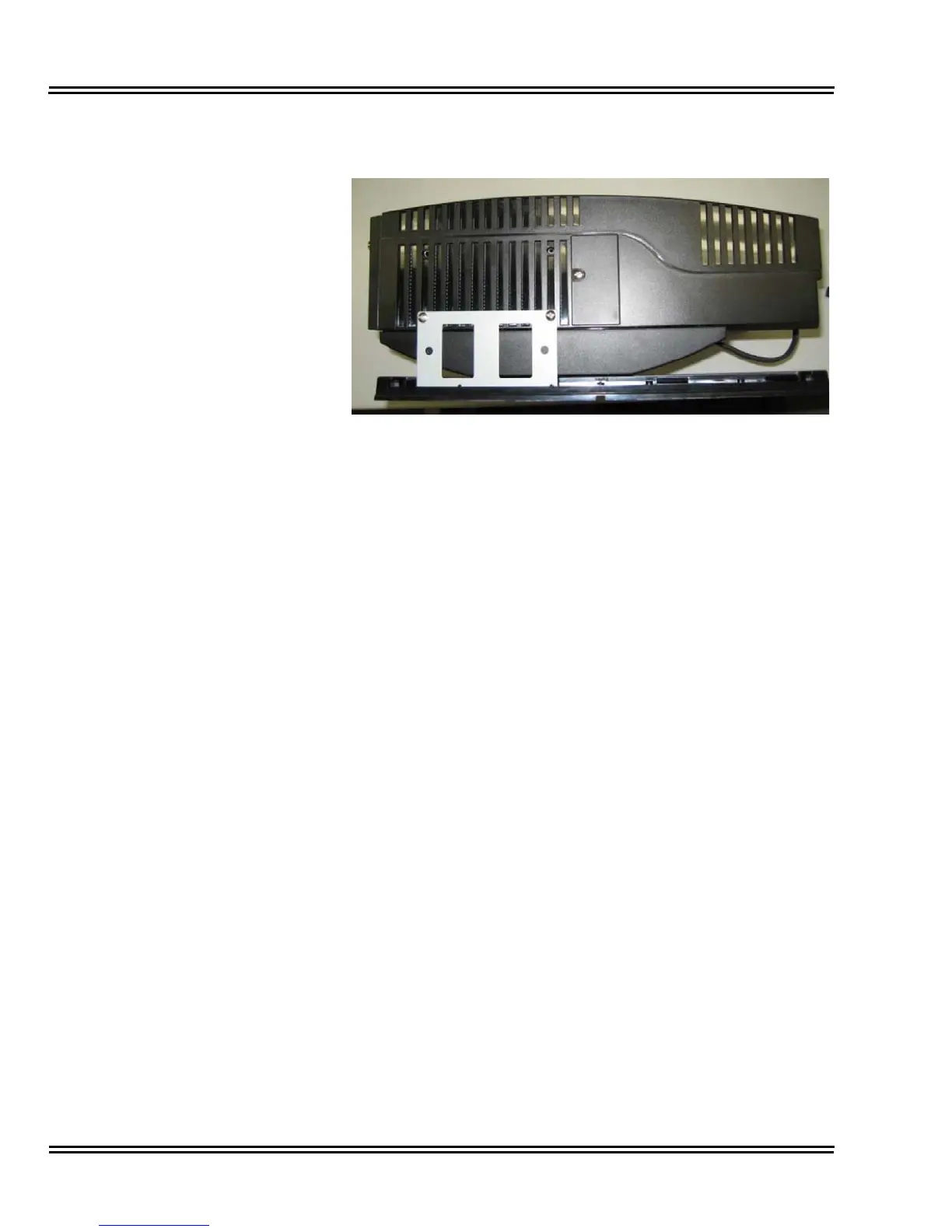

Figure 3-46 Wall Mount – Lower Side (Small Batt Box)
