UNIVERGE SV9100
Issue 1.2
System Hardware Manual
3 - 71
4.
Remove the
battery connector cap on the Base ch
assis and connect
the battery connection
cable.

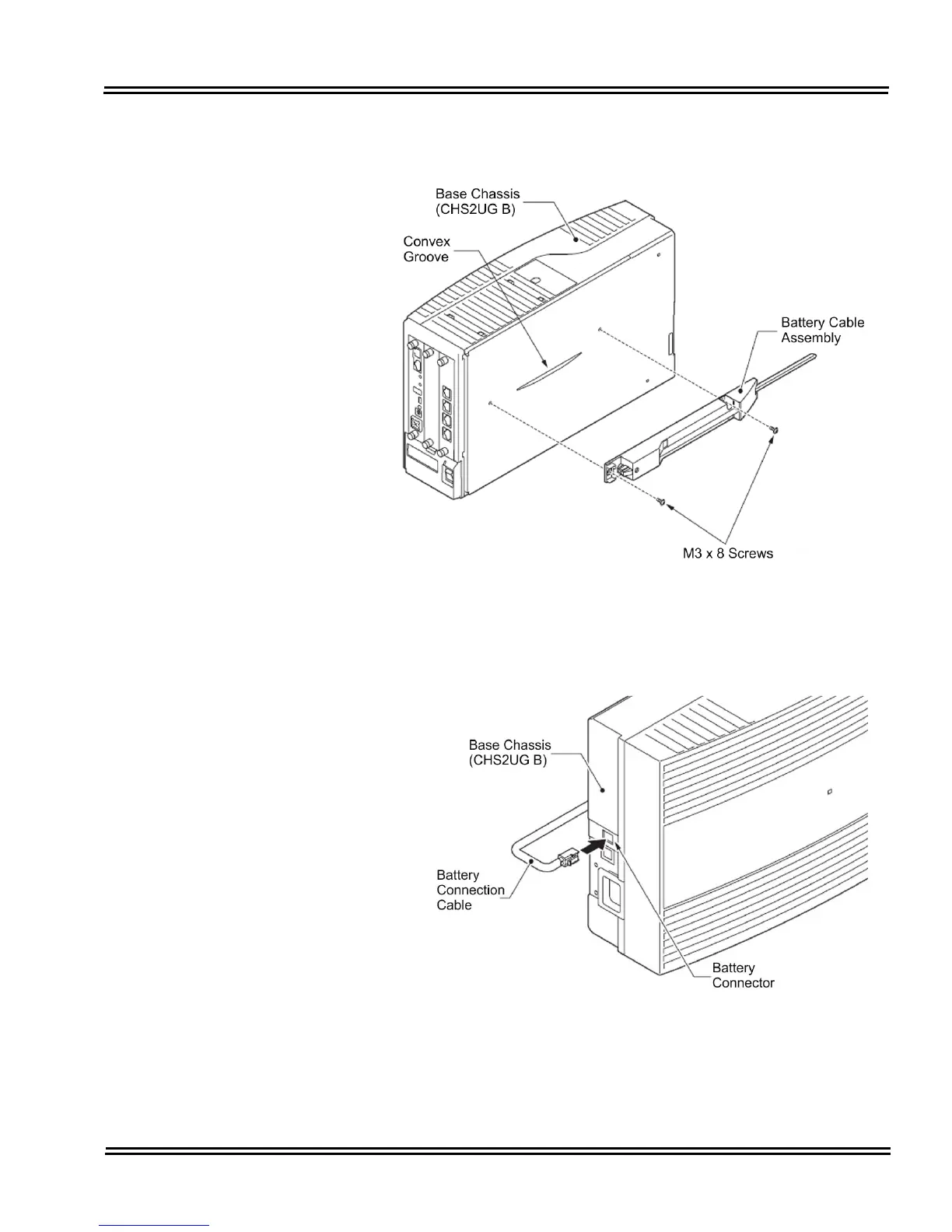

Figure 3-99 Inst
alling Battery Cable Assembly
Figure 3-100 Inst
alling Battery Connection Cable
