Issue 1.2 UNIVERGE SV9100
4 - 26 Installing the SV9100 Blades
BAT Lithium Battery Socket (for backup of SRAM memory
data)
Load (S5) Load Switch
S6 SENSE Switch

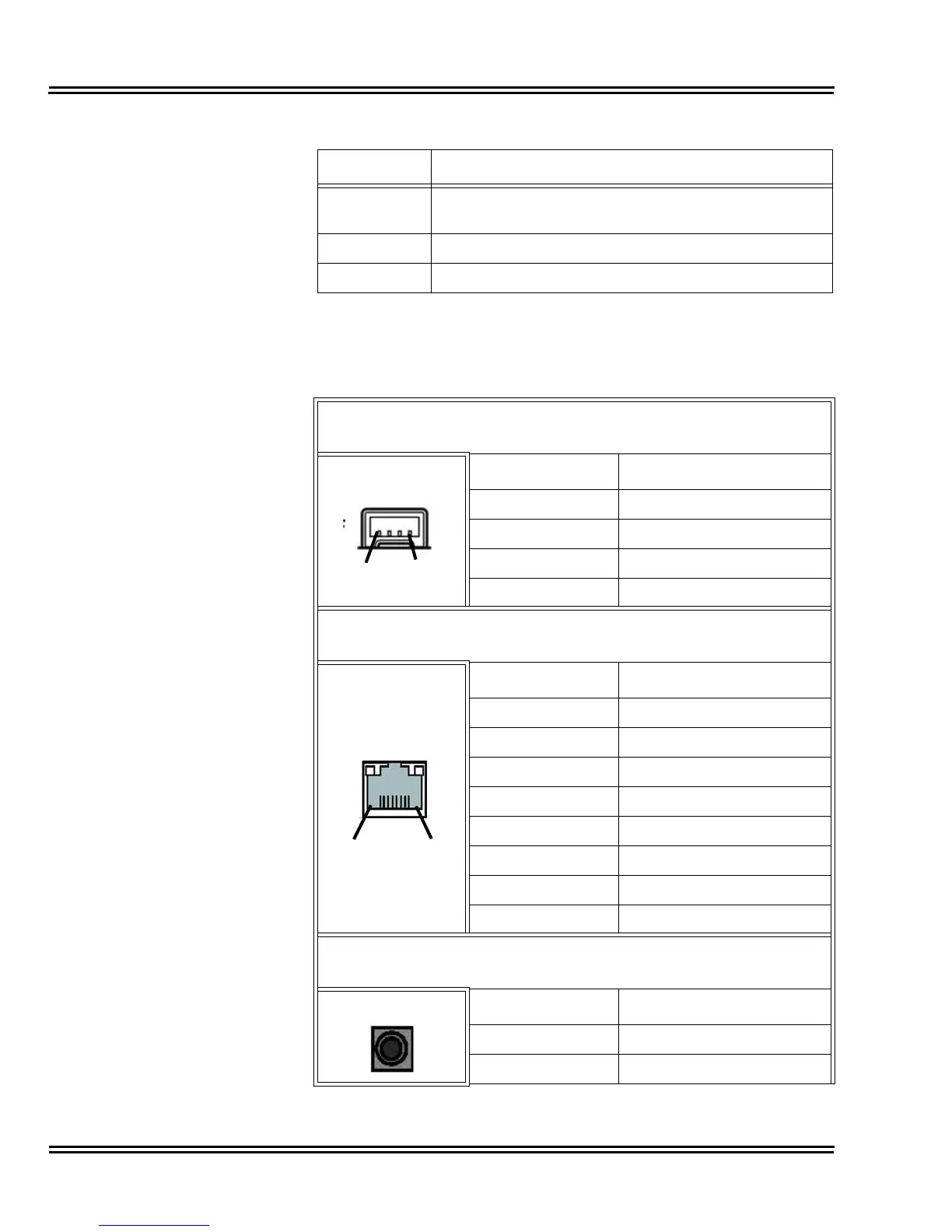

Table 4-10 GCD-LTA RJ45 Cable Connector Pin-Outs
USB Cable Connector – J13 (Type A, Female)
(USB 1.1/2.0 Standard)
Pin No. Signal
1Vcc
2-D
3+D
4GND
Ethernet Cable Connector – J4 (RJ-45)
(10Base-T/100Base-TX/1000Base-T Port)
Pin No. Connection
1Tx+
2Tx-
3Rx+
4–
5–
6Rx-
7–
8–
Pin Jack – CJ11/J12
(Polarity)
Pin No. Signal
1 EXT1
2 EXT2
Table 4-9 GCD-CP10 Connections (Continued)
Connector Connector Description
