Issue 1.2 UNIVERGE SV9100
5 - 46 Installing DT Series Digital and IP Multiline Terminals
5. Install the Line Cord in the groove. Refer to Figure 5-36 Line
Cord Groove (DT400).
6. Turn the terminal over and place it so the Line Cord can be
passed through the groove between the tilt legs. Refer to
Figure 5-34 Line Cord Groove Back of Terminal (DT300) on
page 5-45.

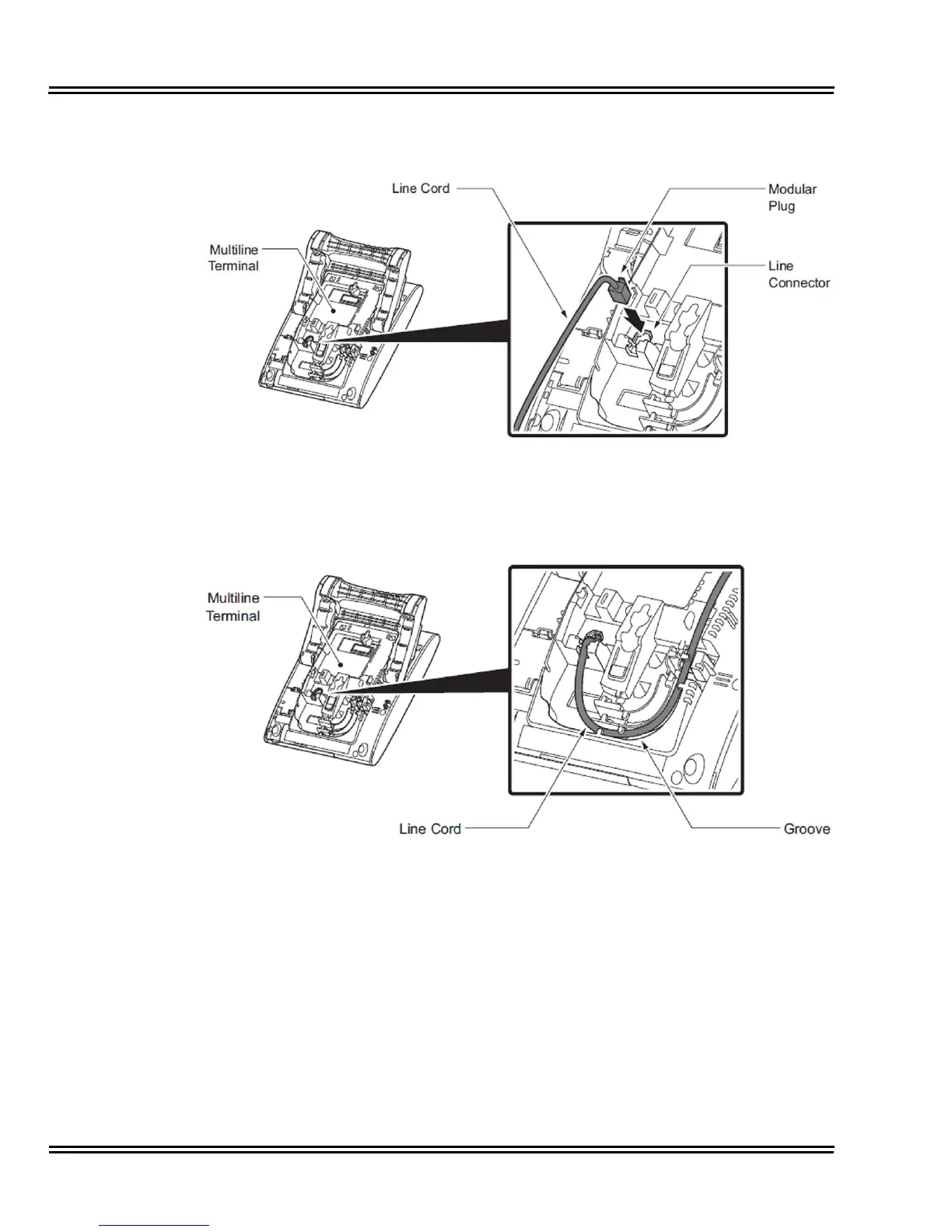

Figure 5-35 Installing the Line Cord (DT400)
Figure 5-36 Line Cord Groove (DT400)
