1. Use the template shown below for required spacing before drilling.
2. Mark and drill the six holes required for a wall installation.
3. Align screw holes in wall mount brackets with drilled holes.
4. Using six screws, secure the two wall mount brackets to the wall.

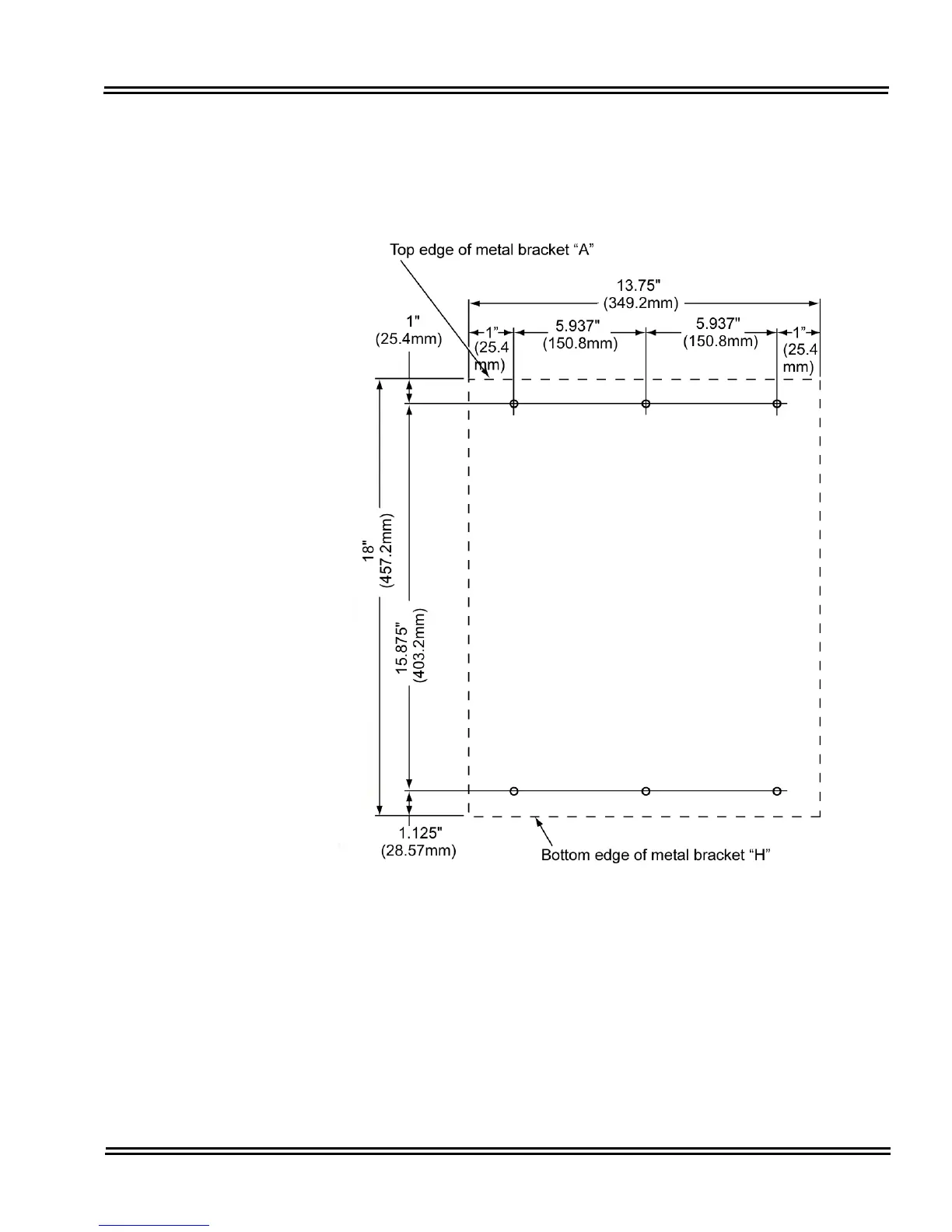

Figure 3-28 Wall Mount Spacing Guide (19” Chassis)
