NSK Megatorque PS Series User Manual

— 8-16 —
8.3. Extended Control Output
8.3.1. In-zone Output: ZONEA, ZONEB, and ZONEC
 The output reports that the Motor is in the predetermined zone.
Table 8-14: Signal logic of outputs of ZONEA, ZONEB and ZONEC
Logic Description
Open
Out of the zone
Closed
In the specified zone, or assuring the minimum
output elapsing time.
Table 8-15: Parameter related to the ouputs ZONEA, ZONEB and ZONEC
Signal name
(code)
Name
Initial
setting
Data range Unit
ZAS
ZBS
ZCS
Start point of zone A
Start point of zone B
Start point of zone C
0 0 to 2 621 439 pulse
ZAE
ZBE
ZCE
End point of zone A
End point of zone B
End point of zone C
0 0 to 2 621 439 pulse
ZAW
ZBW
ZCW
Zone A stability timer
Zone B stability timer
Zone C stability timer
0.0 0.0 to 10 000.0 ms
 The parameters ZAS (Start point of zone A) and ZAE (End point of zone A) set the zone. The
zone starts from the start point in the counting up direction of scale data and ends at the end
point as shown in the figure below.
◊ The zones B and C can be set by the parameters ZBS, ZBE, ZCS and ZCE respectively
in the same way described above. .

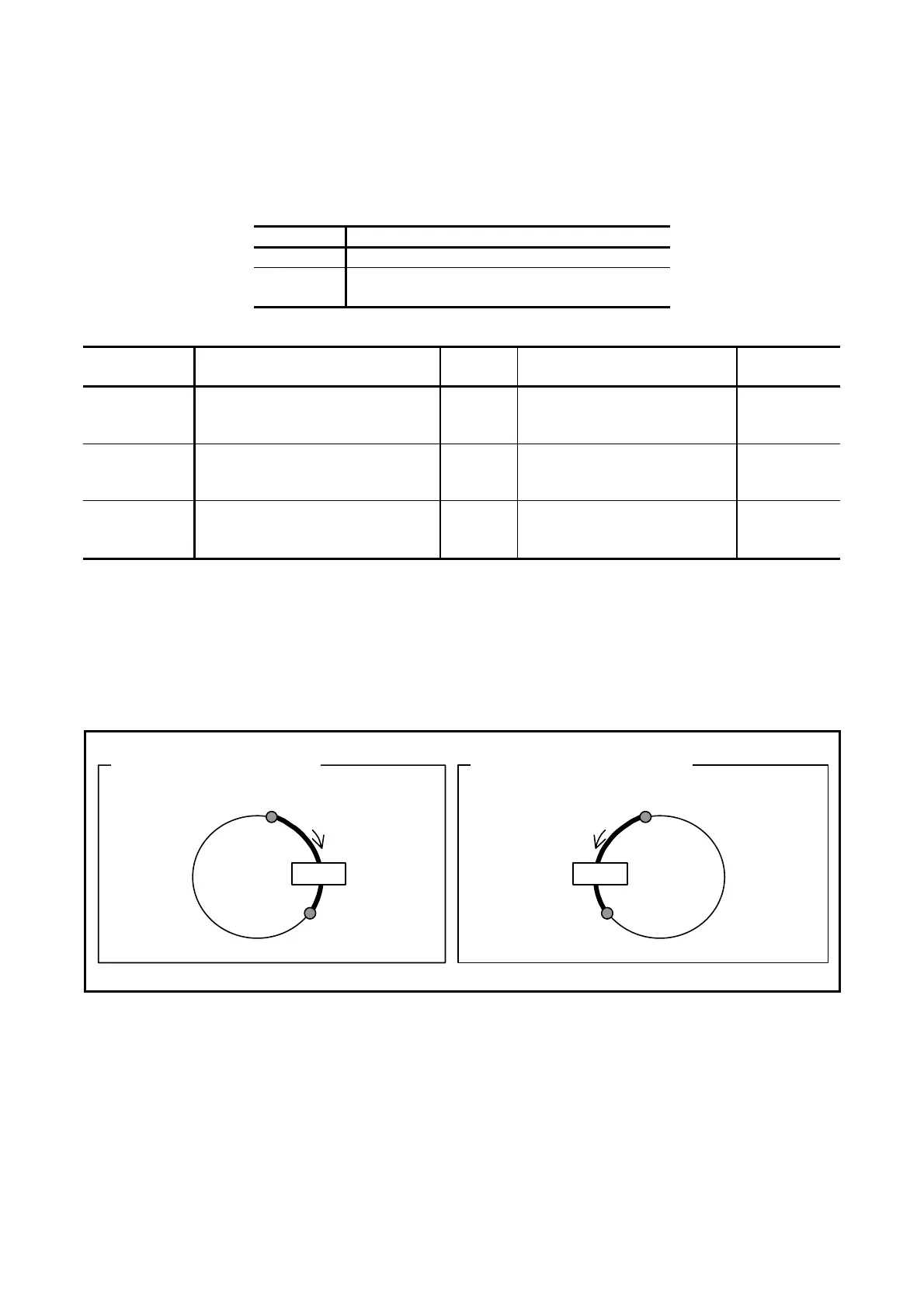

Fig 8-6: Setting of zone A
Count up direction
Zone A
ZBE: End point of
zone A
Count up direction
ZBE: End point of
zone A
Zone A
In case of the paraemter DI0 In case of the paraemter DI1
ZAS: Start point of zone A ZAS: Start point of zone A
