NSK Megatorque PS Series User Manual

— 8-49 —
8.8.1.2. Home Return Mode: OS5
 The OS5 mode is to detect the rising edge of the input HLS (Home position limit).
 Repeatability of the home position depends on the sensitivity of the limit sensor in this mode.

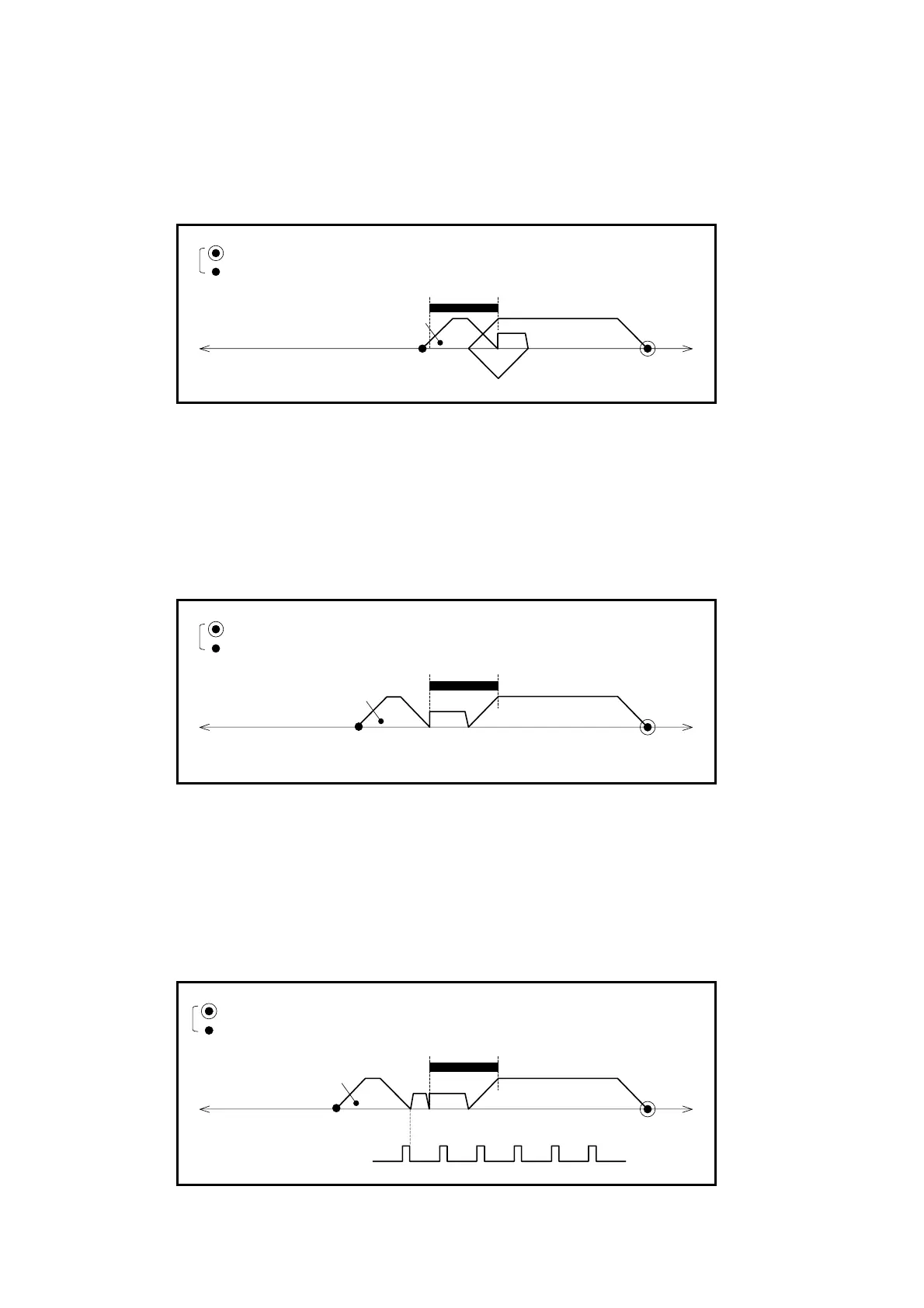

Fig 8-28: Operation pattern of Home Return (In case of OS5, DI0 and HD1)
: Home Return start position
: Home Return complete
position
Input HLS ON area
(Near-zero area)
CW direction* CCW direction
½
Velocity for CCW*
¾
Velocity for CW
HO
8.8.1.3. Home Return Mode: OS1
 The OS1 mode is to detect the signal rising edge of input HLS (Home position limit).
 Repeatability of the home position depends on the sensitivity of the limit sensor in this mode.
Fig 8-29: Pattern of Home Return Operation (In case of OS1, DI0 and HD1)
: Home Return start position
: Home Return complete postion
Input HLS ON
()Near-zero area)
Direction CW*
CCW direction
½
Velocity for CCW*
¾
Velocity for CW
HO
8.8.1.4. Home Return Mode: OS3
 The OS3 mode is to return to the position at the neared phase Z signal after detection of the
signal rising edge of the input HLS.
 The home position is set at the position of phase Z signal, thus assuring repeatability of home
position regardless of the sensitivity of the limit sensor.
Fig 8-30: Pattern of Home Return operation (Ion case of OS3, DI0 and HD1)
: Home Retun start position
: Home Return complete position
Input HLS ON
(Near-zero area)
CW direction*
CCW direction
½ Velocity for
CCW*
¾ Velocity for
CW
Phase
Z
HO
