2.6.2. EDC Driver Unit

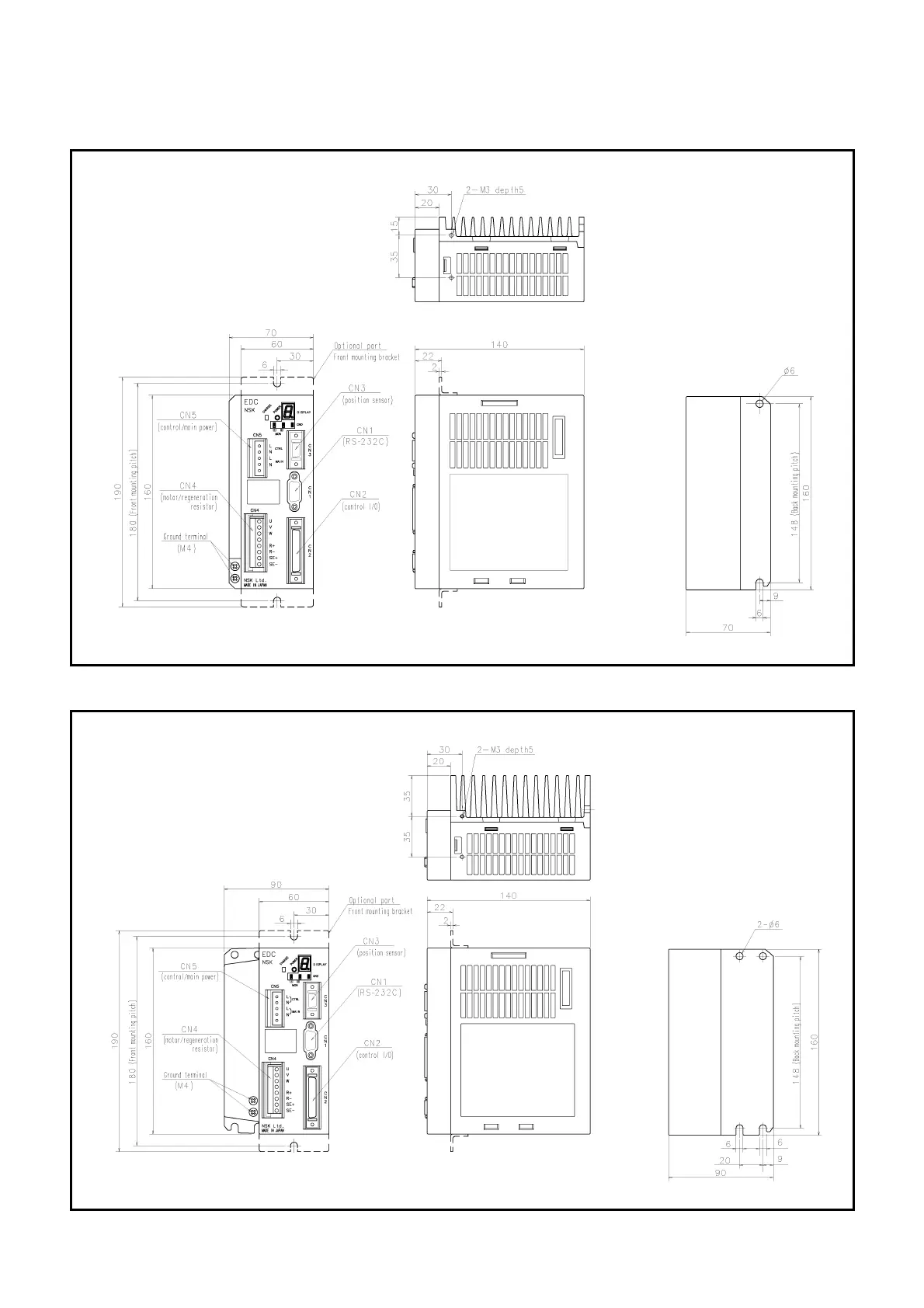

Fig 2-15: EDC Driver Unit (Motor type: PS1006, PS1012, PS1018, PS3015, and PS3030)
Fig 2-16: EDC Driver Unit (Motor type: PS3060, and PS3090)
