— 2-16 —
2.6.3. Cable Set
Caution : If you connect the cable to a moving part, be sure to use a flexible type
cable.
2.6.3.1. Stationary Cable
Caution : Bending radius of Motor and resolver cables shall be R45 mm or over.

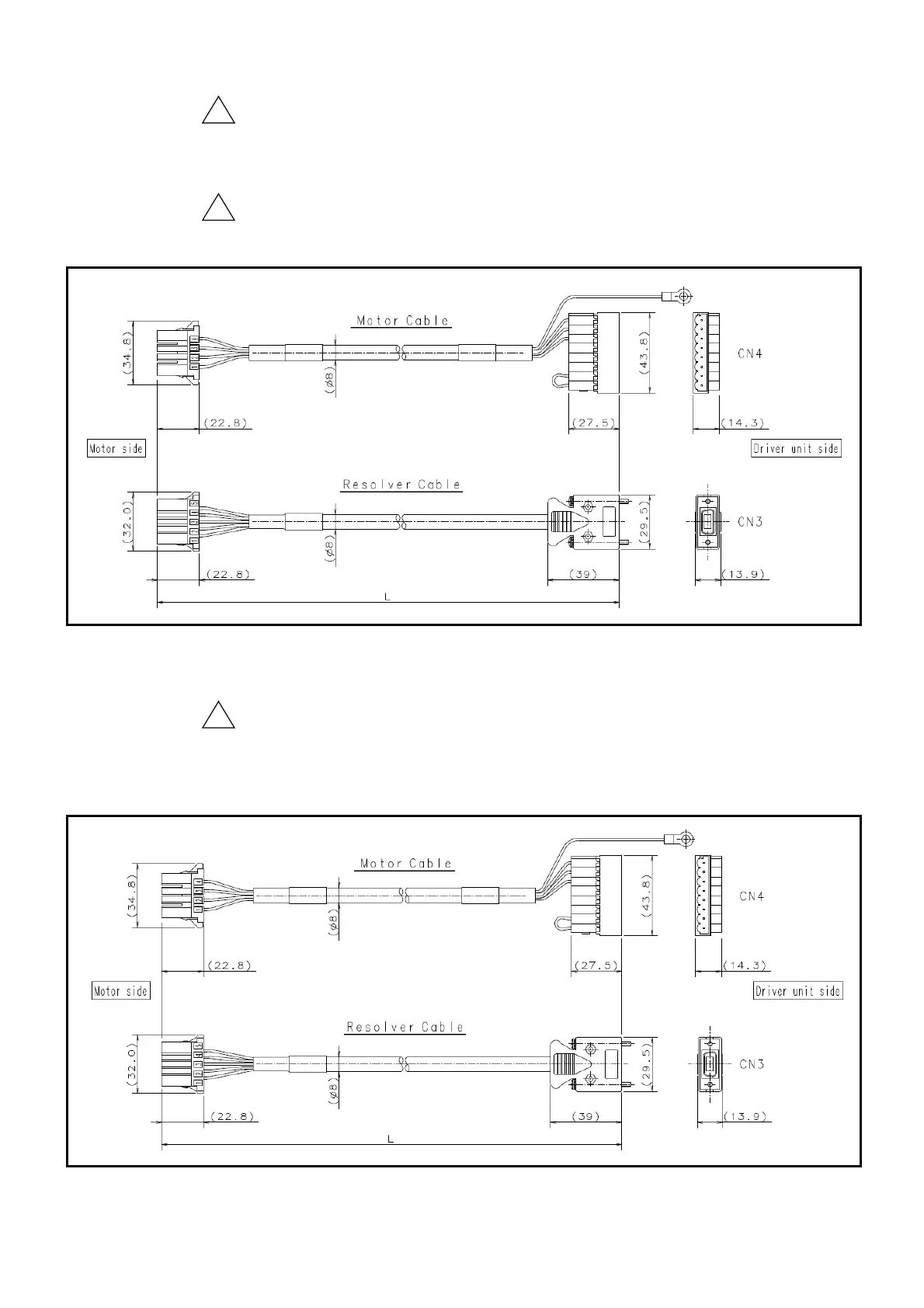

Fig 2-19: Cable Set (Fixed type: M-C×××SCP03)
2.6.3.2. Flexible Cable
Caution : The bending radius of Motor and resolver cables shall be R80 mm or
over. The radius of cables at the connecting position shall be R40
mm or over.
Fig 2-20: Cable Set (Flexible type: M-C×××SCP13)
