NSK Megatorque PS Series User Manual

— 2-31 —

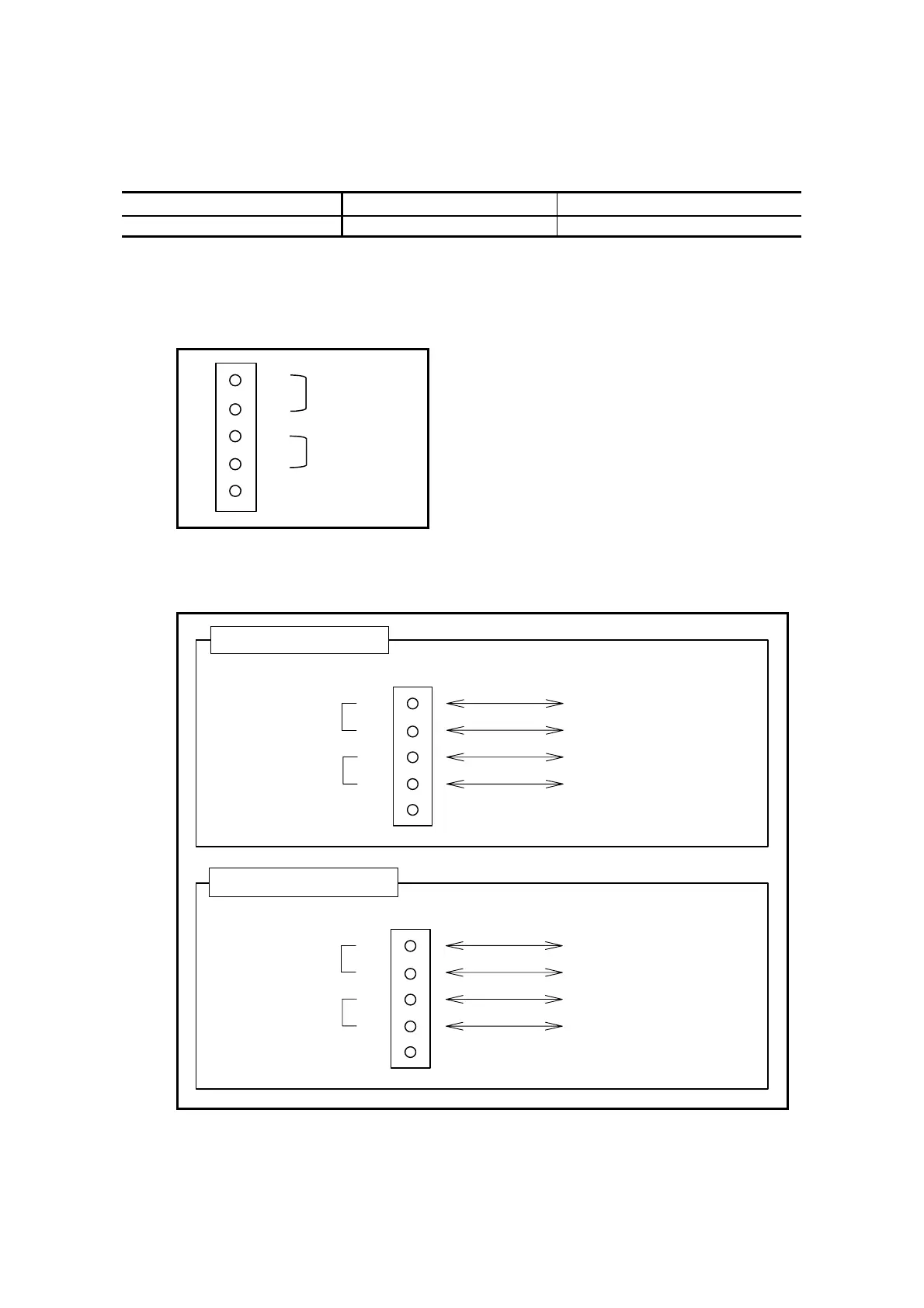

2.12. CN5: Connector for Power Supply
 The table below shows the connectors for CN5 and the connector of user device.
Table 2-24: Connector list
Connector of Driver Unit
WAGO Corporation 231-565/001-000 or equivalent
Mating connector
WAGO Corporation 231-305/026-000 or equivalent
2.12.1. CN5 Pin-Out
Fig 2-32: Pin-out
L
N
L
N
Control power
5
4
3
2
1
Main power
2.12.2. CN5 Wiring Diagram
Fig 2-33: Wiring diagram
Control power
Single phase 200 [VAC]
Control power
Single phase 100 [VAC]
Main power
Single phase 100 [VAC]
Main power
Single phase 200 [VAC]
MAIN
200-230 [VAC]
CTRL
200-230 [VAC]
L
N
In case of 100 [VAC]
In case of 200 [VAC]
L
N
MAIN
100-115 [VAC]
CTRL
100-115 [VAC]
L
N
L
N
CN5
CN5
