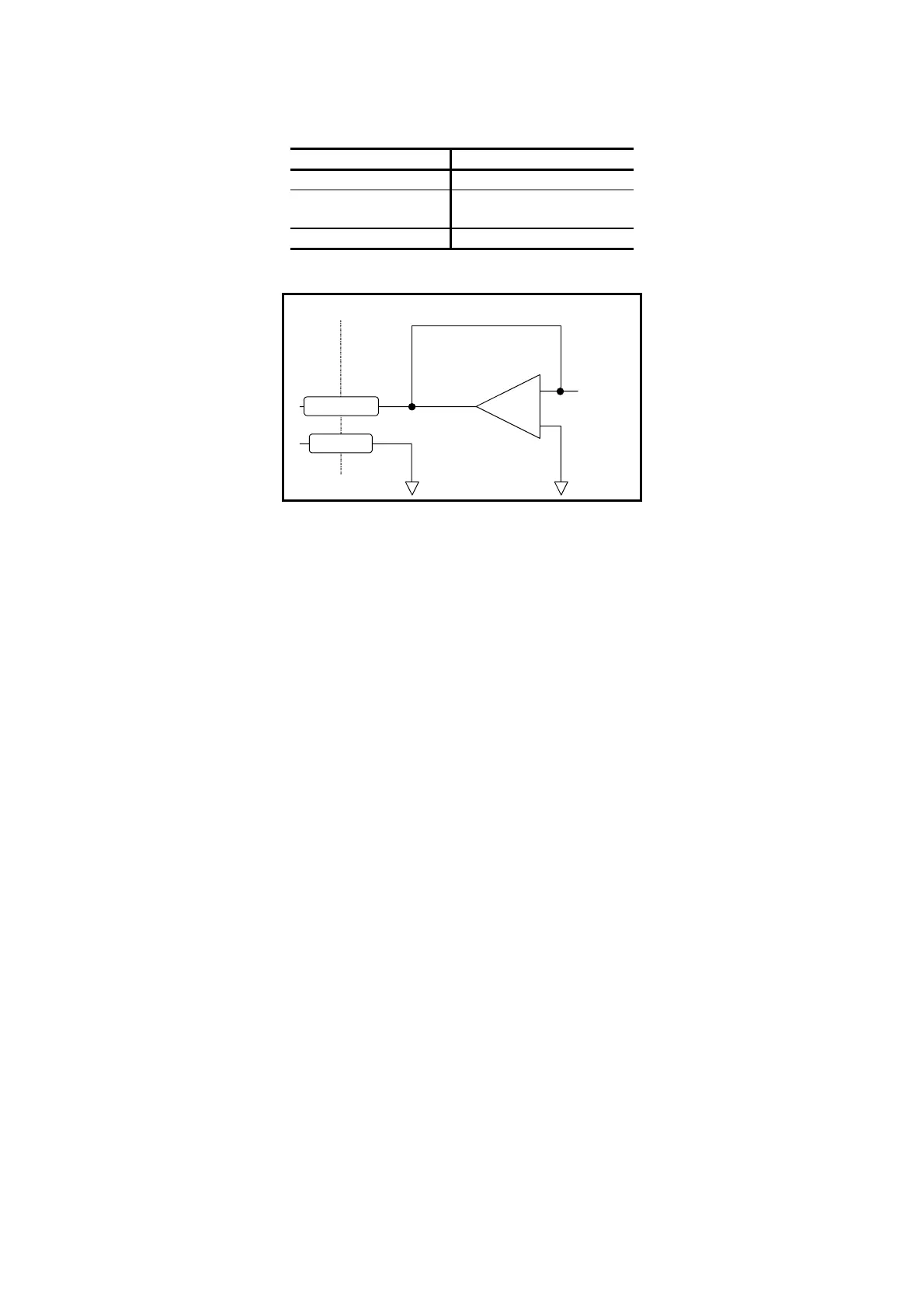

2.9.2.5. Analog Monitor Output

Table 2-19: Analog monitor specification

Item Specification

Output format

Op-amp

Maximum output

voltage

5 V

Saturated current

4 mA or less

Fig 2-29: Analog monitor

MON1

，

GND

－

＋
