— 2-25 —

2.9.2. CN2 Interfacing

2.9.2.1. General Input Signal

Applied inputs: SVON, EMST, OTP, ACLR, PRG0 to PRG7, JOG, DIR, and STP

Table 2-15: General specifications

Item Specification

Input voltage

24 VDC ± 10%

Input impedance

3.9 kΩ

Maximum current

10 mA or less (per input)

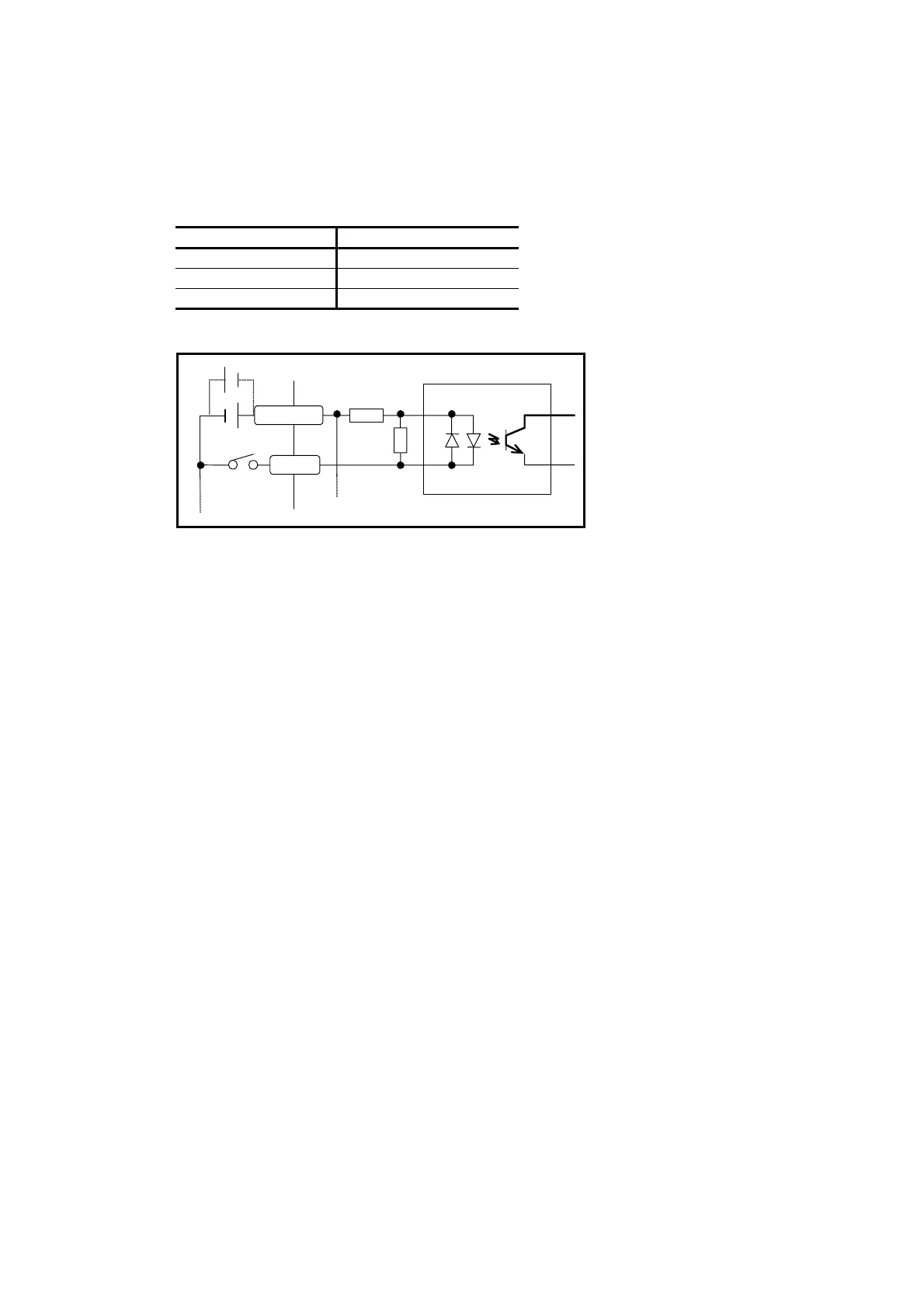

Fig 2-23

3.9 kΩ

560 Ω

Driver Unit side

∗

24 VDC

* You may reverse the polarity of the external power supply and connect as

“minus • common.”
