NSK Megatorque PS Series User Manual

— 3-5 —

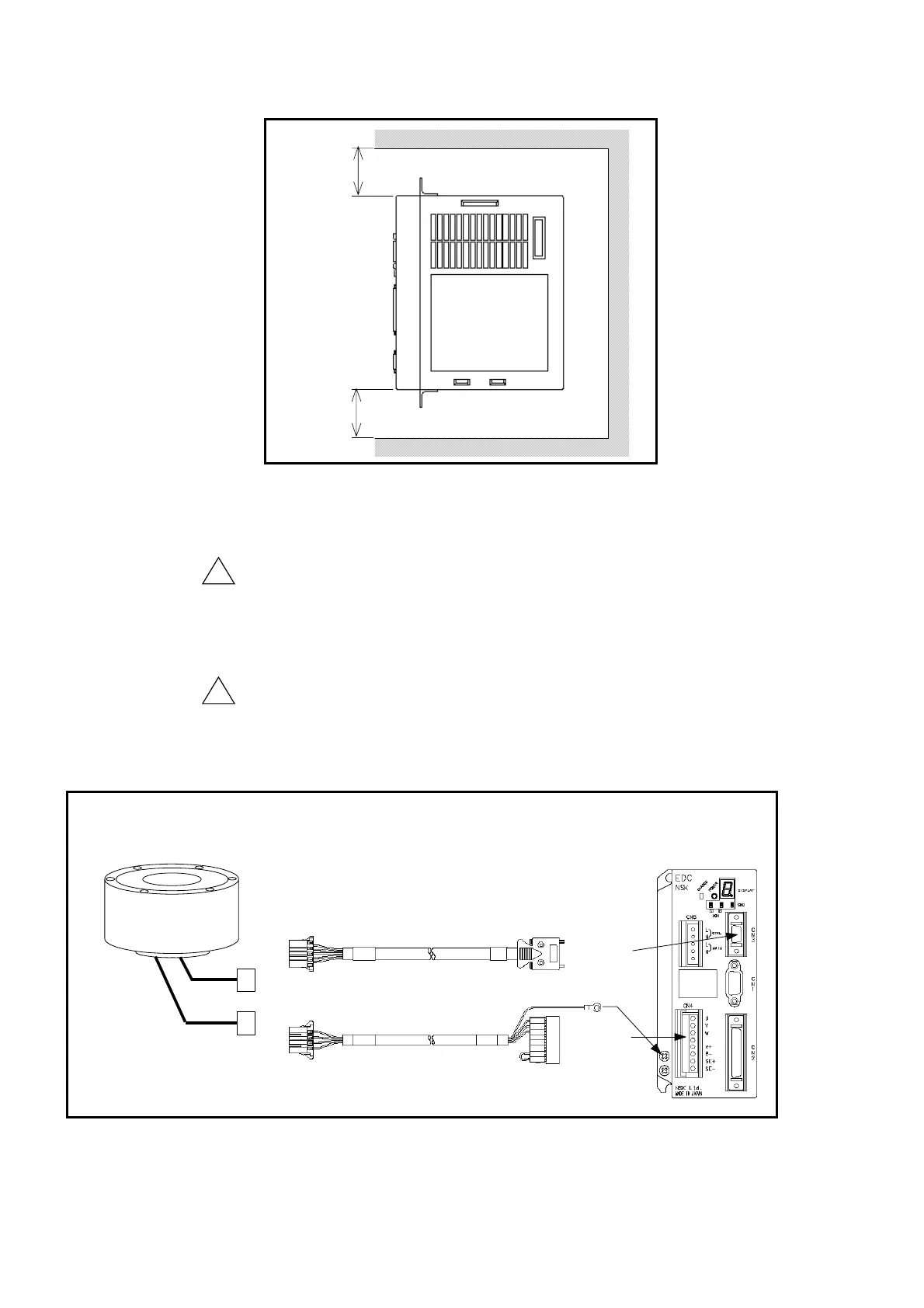

Fig 3-5: Installation of Driver Unit
100 mm or more
100 mm or more
3.3. Wiring
3.3.1. Connection of Cable Set
！
Caution : Do not cut the Motor cable to change the length shorter or longer or do
not hook it up to other cable. You need to separately purchase the
cable with specified length.
The standard cable length is available in 1 to 10 meters (in increment
of 1 meter), and in 15, 20 and 30 meters.
！
Caution : Do not place the power lines (AC main power and Motor cable) and the
signal lines in close proximity. Do not tie wrap them and not to put in
the same duct or conduit.
Fig 3-6: PS series Megatorque Motor
To CN3
To CN4
To ground terminal
