— A-9 —

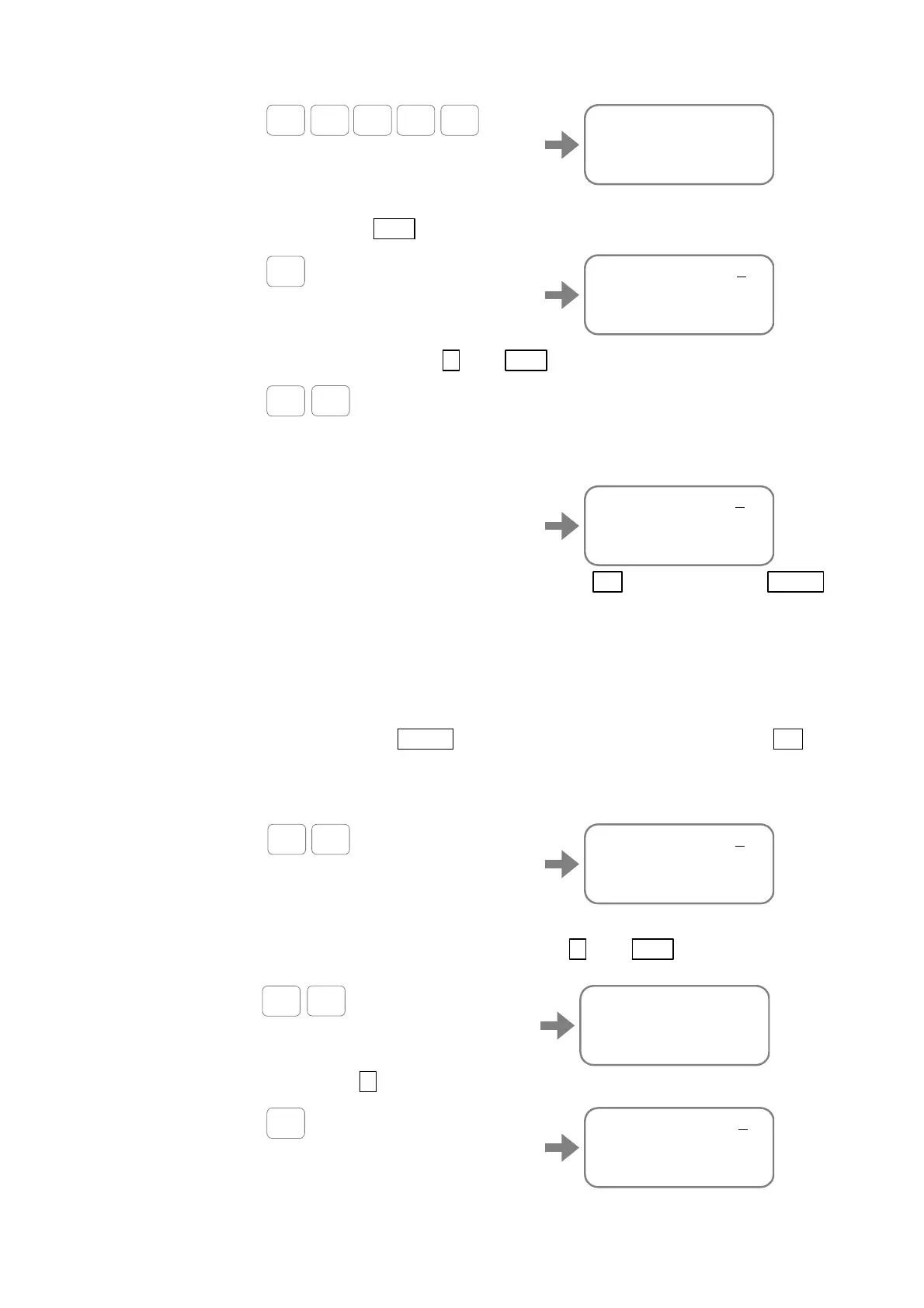

(3) For an example, name the file as “EDC01”.
［
Upload
］
File Name EDC01_
C D E 0
?
1
#
An input of the ENT key calls up the confirmation screen to start uploading.
［
Upload EDC01
］
?
1:Yes
2:No
ENT
(4) Press the keys in order of 1 and ENT to start uploading.
ENT
1
#
The display scrolls in high speed while uploading. At the completion of uploading, the
display menu changes to the editing menu in the user state.
［
Editor
］
?
1:Upload
2:Delete
3:Download
It changes to the normal mode by a press of the BS while pressing the SHIFT
key.
How to restore the parameter settings
1) Execute restoring the parameter settings using the memory function of the Handy Terminal
FHT21.
(1) While pressing the SHIFT
key in the command waiting state, press the BS key
for approximately 3 seconds.
The mode changes from the normal node to the user mode and the menu will be on the
display.
［
Editor
］
?
1:Upload
2:Delete
3:Download
BS SHIFT
(2) Execute downloading (Transfer the setting to the memory of the Driver Unit from the
Handy Terminal). Press the keys in order of 3
and ENT to change the display
menu for inputting the file number.
［
Download
］
?
1:EDC01 2:
3: 4:
5:
6:
ENT
3
<
Input the key 1
for the file “EDC01” for restoring.
［
Download
］
1
1:EDC01 2:
3: 4:
5:
6:
1
#
To Next Page
