NSK Megatorque PS Series User Manual

— 8-37 —
 The System will perform the positioning on this user scale
◊ Set “AQ3” for a shorter way positioning to the grid on 270° [angle degree],
◊ Execute the command “IQ1” for positioning from current position to 90° [angle
degree] in the plus direction.

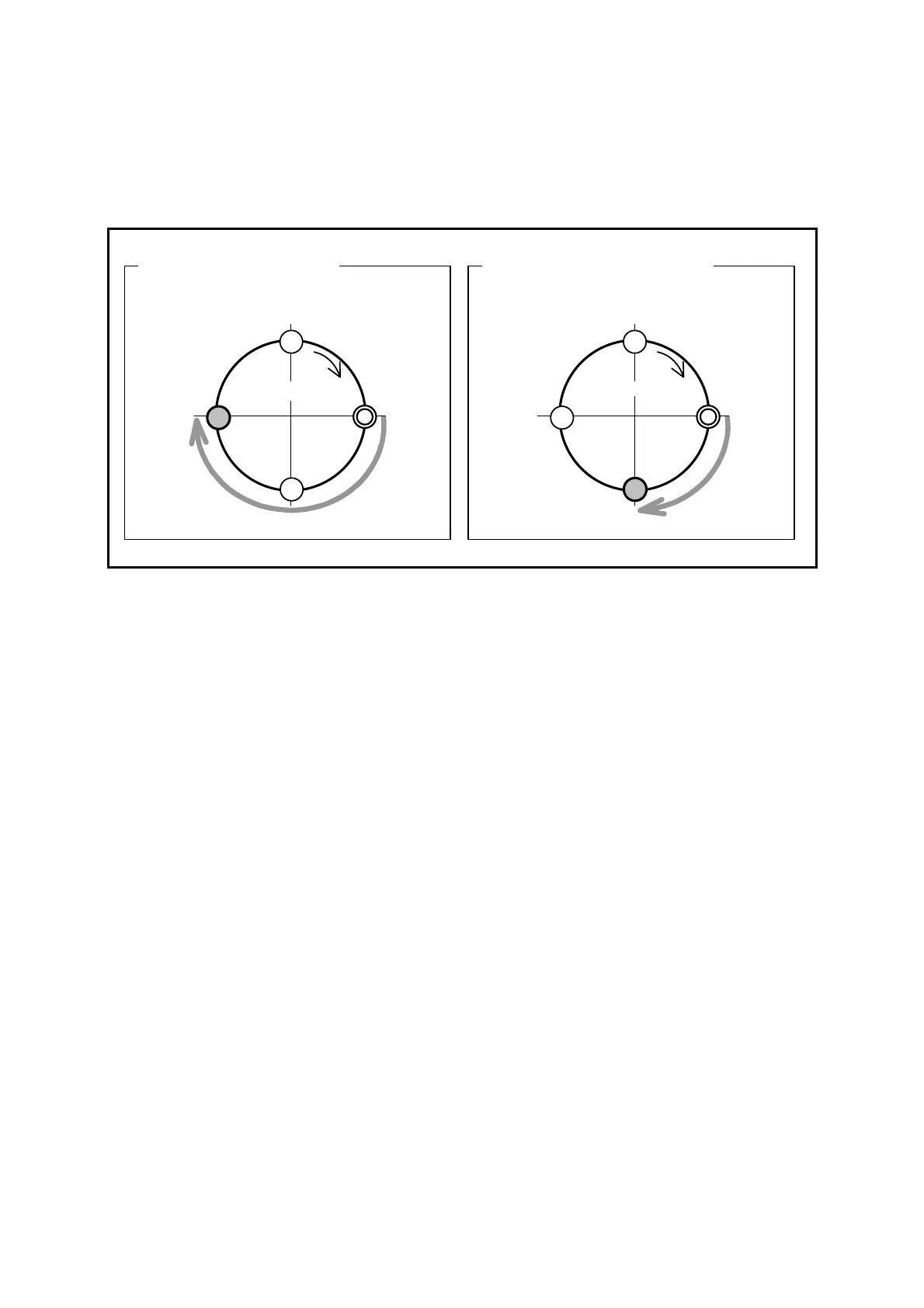

Fig: 8-18: User scale positioning
Target
position
Absolute positioning
(In case of AQ3)
1
0
2
3
Current
position
0°: Home position
180°
90°
270°
Count up
Incremental positioning
(In case of IQ1)
1
0
2
3
Current
position
0°: Home position
180°
90°
270°
Count u
p
Target
position
 For a positioning in units of 1/1000 [°], set as “QR360000.”
 Resolution of the YSB series Megatorque Motor, one of another Megatorque Motor series of
NSK”, is 819 200 [count/revolution]. For setting the same resolution of the YSB series Motor,
set as “QR819200.”
