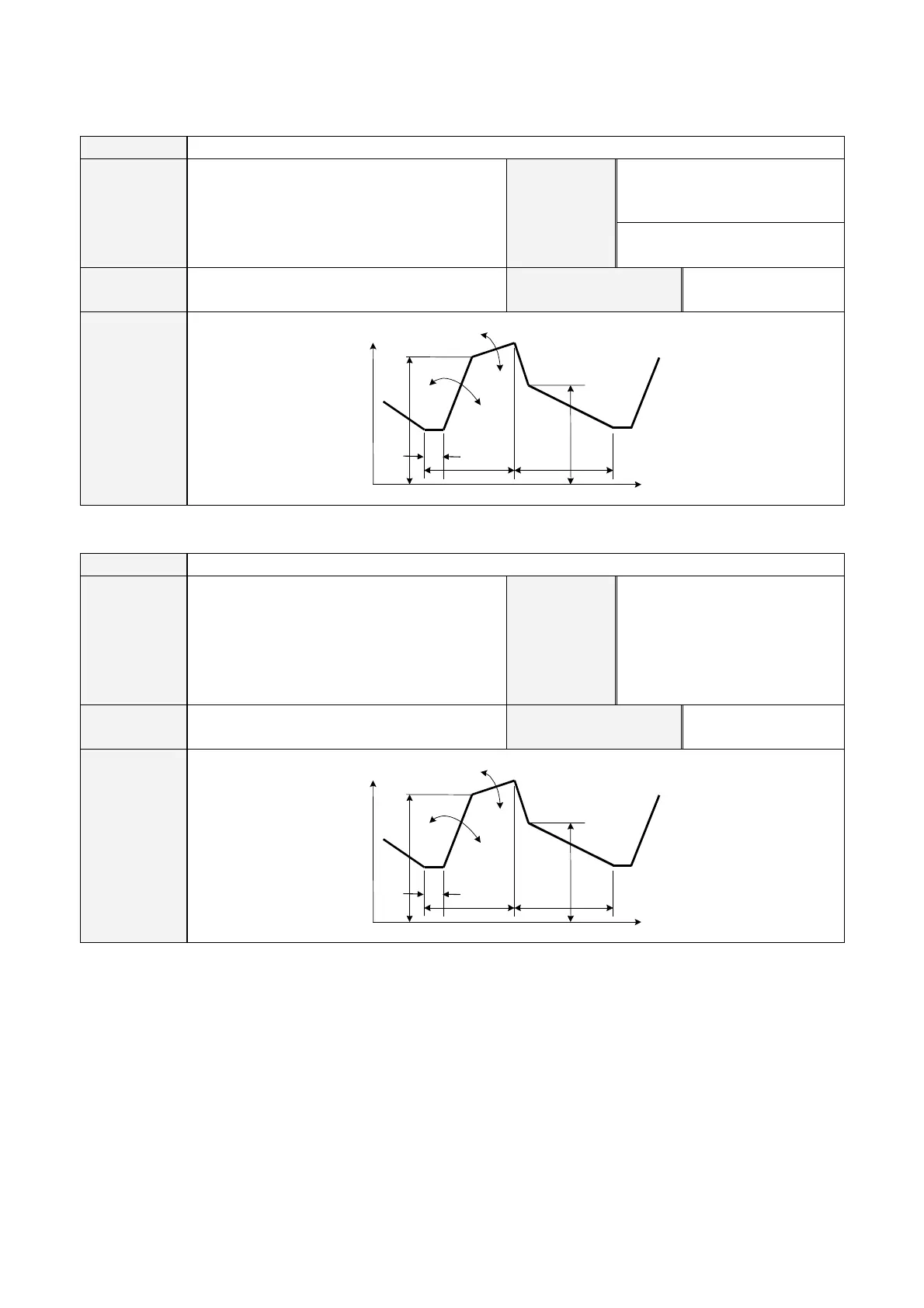

Panasonic VR2 Series - Isc; Isl1

16-19

16-5-22. ISC
Format
ISC [Value]
Function It adjusts short-circuit amperage slope of the
welding current waveform.
Value
Condition Weld package.
Fine adjustment value which will
be added to the system set value.
[-3 - +3]
Lock condition Arc lock (Internal execution). *
Syntax check None.
Executing +1 adjustment twice
does not result in +2.
Example Adjust the system set value by +1.
ISC +1
The same command in
conventional models
ISC

Amperage
Time
Shorted Arc
ISC
ISL1
ISL2
IAC
(+)
(+)
(-)
(-)
TSO
16-5-23. ISL1
Format
ISL1 [Value]
Value Function It adjusts short-circuit amperage slope 1 of
welding current waveform.
Increase the value to make the slope gentler.
Fine adjustment value which will
be added to the system set value.
[-7 - +7].
Condition Weld package. *
Lock condition Arc lock (Internal execution).
Executing +1 adjustment twice
does not result in +2.
Syntax check None.
Example Adjust the system set value by +1.
ISL1 +1
The same command in
conventional models
ISL1

Amperage
Time
Shorted Arc
ISC
ISL1
ISL2
IAC
(+)
(+)
(-)
(-)
TSO
