Panasonic VR2 Series - Isl2; Penet; Pfall; Pfrq

16-20

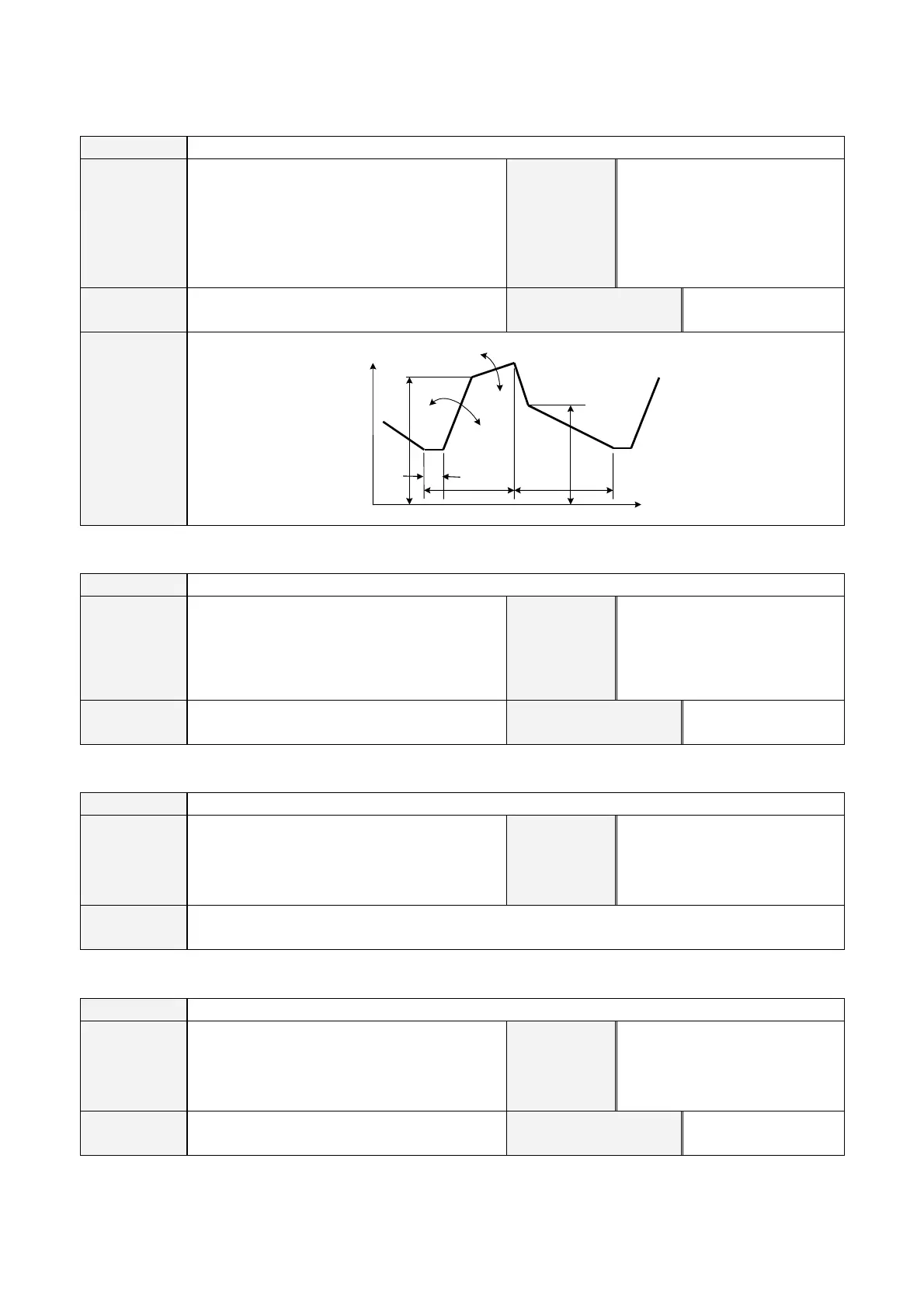

16-5-24. ISL2
Format
ISL2 [Adjustment value]
Value Function It adjusts short-circuit amperage slope 2 of
welding current waveform.
Increase the value to make the slope gentler.
Fine adjustment value which will
be added to the system set value.
[-7 - +7].
Condition Weld package. *
Lock condition Arc lock (Internal execution).
Executing +1 adjustment twice
does not result in +2.
Syntax check None.
Example Adjust the system set value by +1.
ISL2 +1
The same command in
conventional models
ISL2

Amperage
Time
Shorted Arc
ISC
ISL1
ISL2
IAC
(+)
(+)
(-)
(-)
TSO
16-5-25. PENET
Format
PENET [Adjustment value]
Function It adjusts penetration control value. Value
Condition Weld package.
Fine adjustment value which will
be added to the system setting
value.
Lock condition Arc lock (Internal execution). *
Syntax check None.
Executing +1 adjustment twice
does not result in +2.
Example Adjust the system set value by +1.
PENET +1
The same command in
conventional models
PENET
16-5-26. PFALL
Format
PFALL [Adjustment value]
Function It adjusts the pulse fall angle. Value
Condition Weld package.
Lock condition Arc lock (Internal execution).
Syntax check None.
Panasonic fully digital welding
power sources: [-50 - +50]
Other power sources: [-5 - +5]
Example Adjust the pulse fall angle set value by +1.
PFALL +1
16-5-27. PFRQ
Format
PFRQ [Pulse frequency]
Function It adjusts pulse frequency.
Condition Weld package.
Pulse
frequency
Lock condition Arc lock (Internal execution).
Syntax check None.
Panasonic fully digital welding
power sources: [-50 - +50]
Other power sources: [-5 - +5]
Example Adjust the system set value by +1.
PFRQ +1
The same command in
conventional models
PFRQ
