9-3. High-speed input
* Available when “Touch sensor” option is provided or with a MIG/TIG force system.
An input which has priority over other user inputs. The input is useful to use with a device that requires immediate
response.
Click
>>
Set
>>
IN/OUT
>>

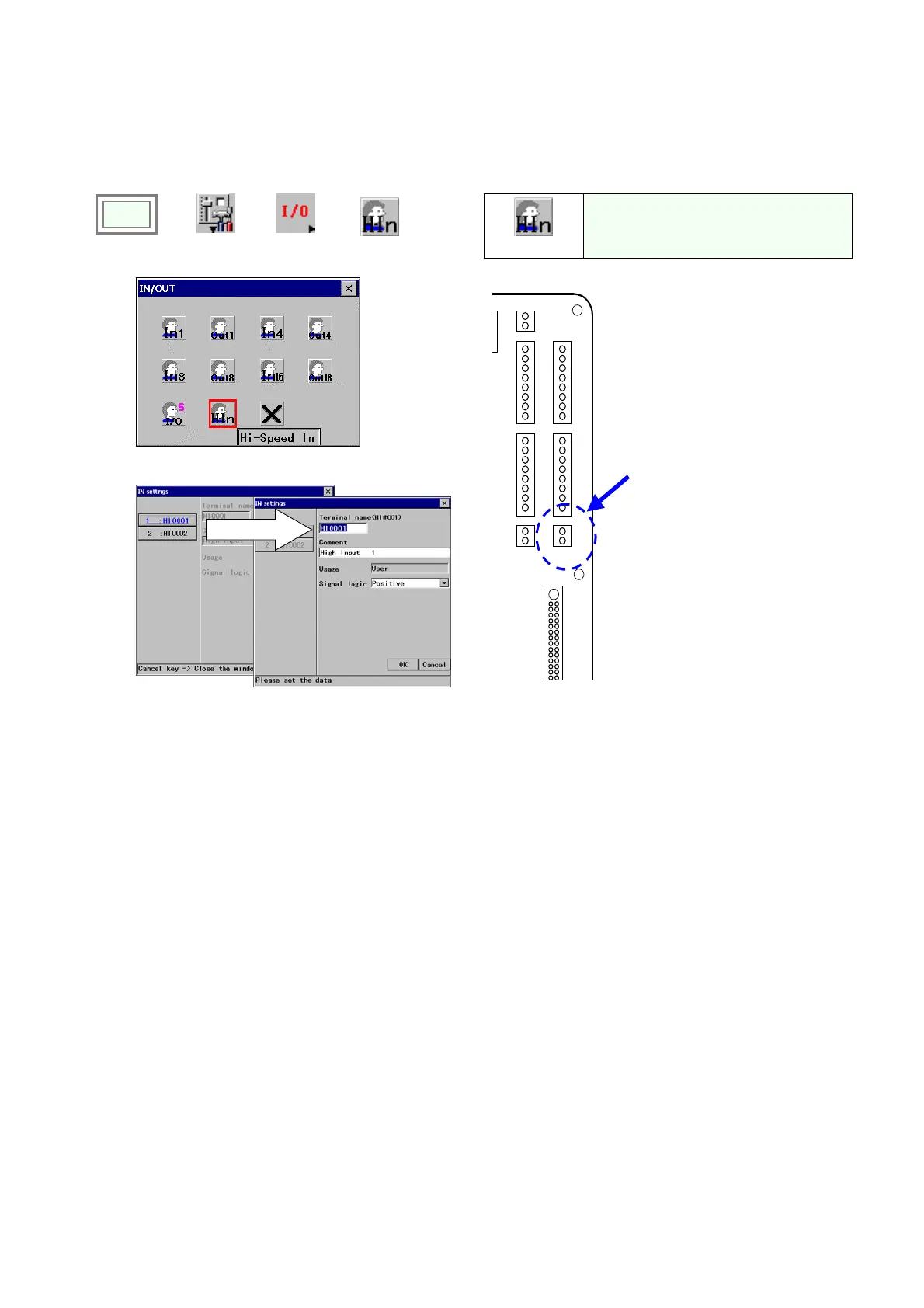

Hi-Speed In Hi-Speed In
Sets one-bit input terminal (In) and
output terminal (Out).
Î
Î
Select a number
U24V
M
STATUSIN1〜8 STATUSOUT1〜8 EXIN1〜2
IN1〜8
OUT1〜8
IN9〜40
EXOUT1〜2
1B 1A
Terminals are labeled
“EXIN1-2” and located
between status output
terminals and user input
terminals 9-40 OUT” on the
sequence board ZUEP5711.
Set parameters and click the OK button.

