3‐32 GettingStartedExpressionMR400Instructions forUse
–Portuguese
– Italiano
–Dansk
–Svenska
–Norsk
–NLD
• ECGNotchFilterappliesanotchfiltertotheECGsignal:
–Off
–50Hz
– 60Hz(Default)
• PressureUnitssetstheunitofmeasureforP1,P2, andNIBPpressurereadings:
–mmHg(Default)
–kPa
• GasUnitssetstheunitofmeasurefor
CO2pressurereadings:
– mmHg(Default)
–kPa
ECG Tests
AccessestestingfunctionsforECG.

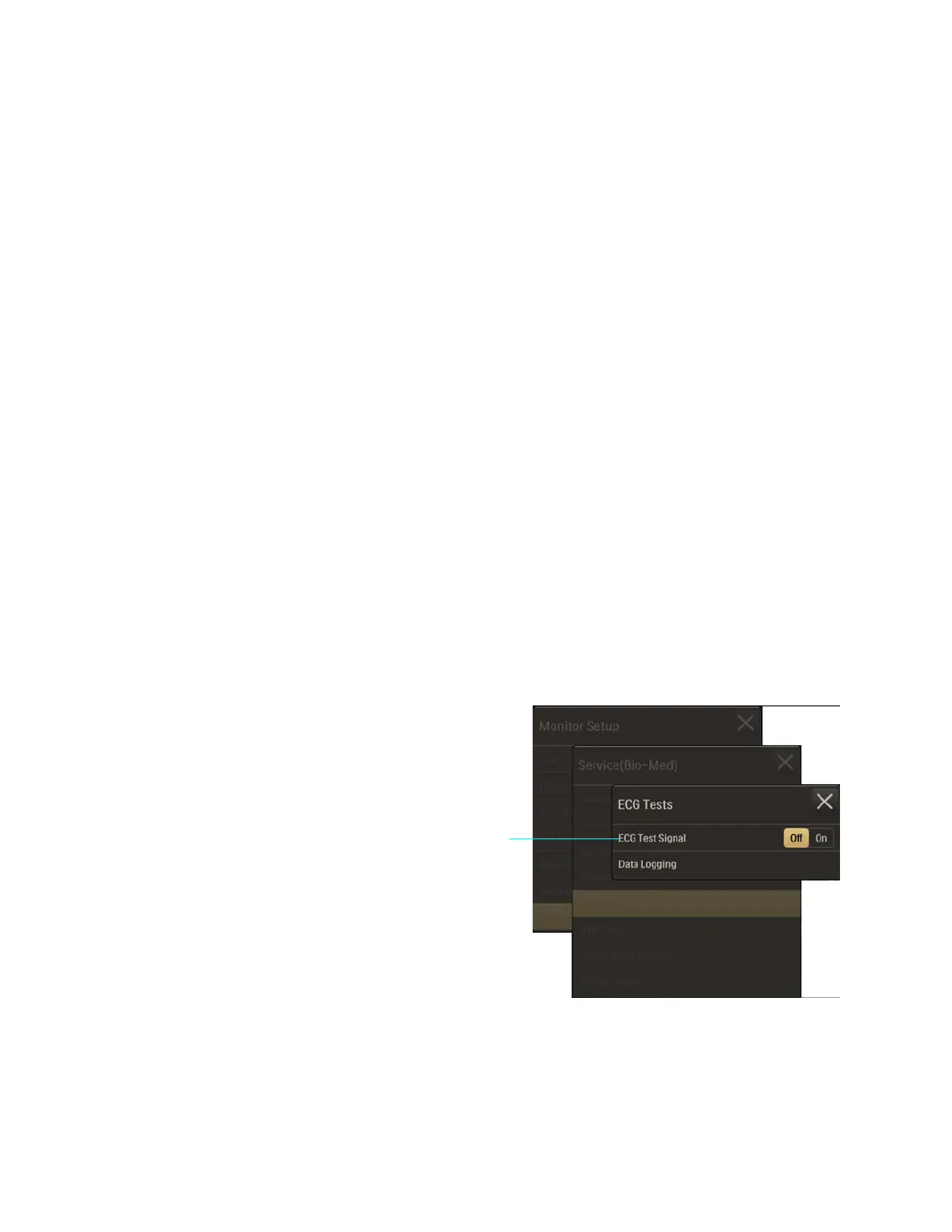

ToopentheECGTestsmenu
PresstheSetupkeyandthenthe
Monitorkey.OntheMonitorSetup
menu,selectService(Bio‐Med). Onthe
Service(Bio‐Med)menu,selectECG
Tests.
Thefollowingmenuitemsare
available:
• ECGTestSignalcontrolsawECG
module‐generated
1mVpeak‐
to‐peaksquarewave,where60
BPMwillbedisplayedintheECG
VSboxandECGTestSignalwillbedisplayedinthealarmflagarea(andprintedwhen
outputtotheprinter,ifequipped):
– Offdoesnottransmitthetestsignal.(Default)
– Ontransmitsthetest
signal.
1ECG Signal Test
