Information Bar

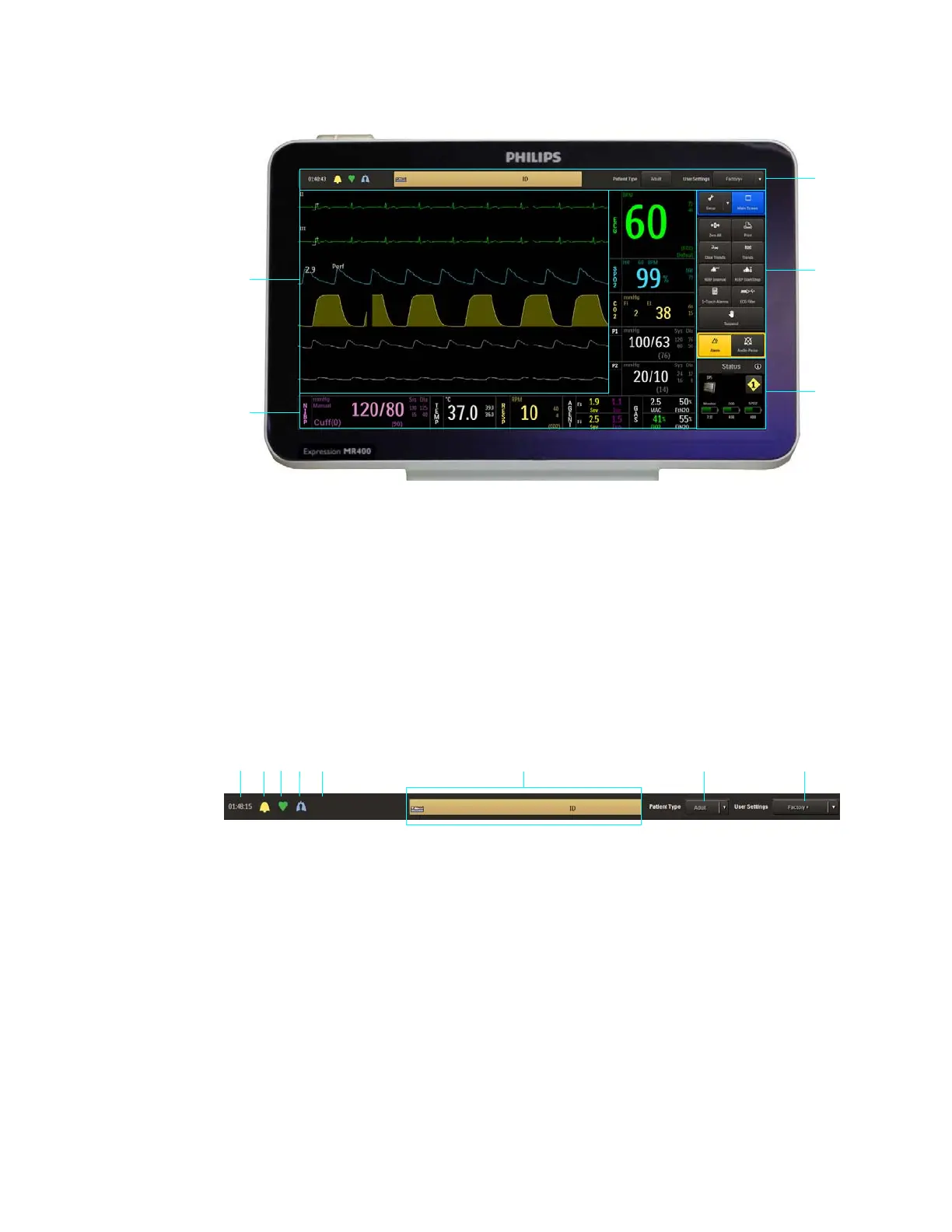

Theinformationbarprovidesgeneraluse,vitalsigndetectionandpatientinformation.
1 Information bar
2 Soft keypad
3 Status information pane
4 Vital sign boxes
5 Vital sign traces
4
3
2
1
5
1Set Time indication, and when pressed accesses the date; see
page 3-13.
2 Alarm sound state indication; see page 4-4.
3 Heart beat detection indication (and provides a detection tone)
according to the HR Tone Source setting; see page 3-21.
4 Respiration detection indication when CO2-derived respiration is
on and within specified limits, flashing at a frequency that matches
the current breath rate.
1
23
4 8
6 7
5
