10‐4Monitoring RESPExpressionMR400InstructionsforUse

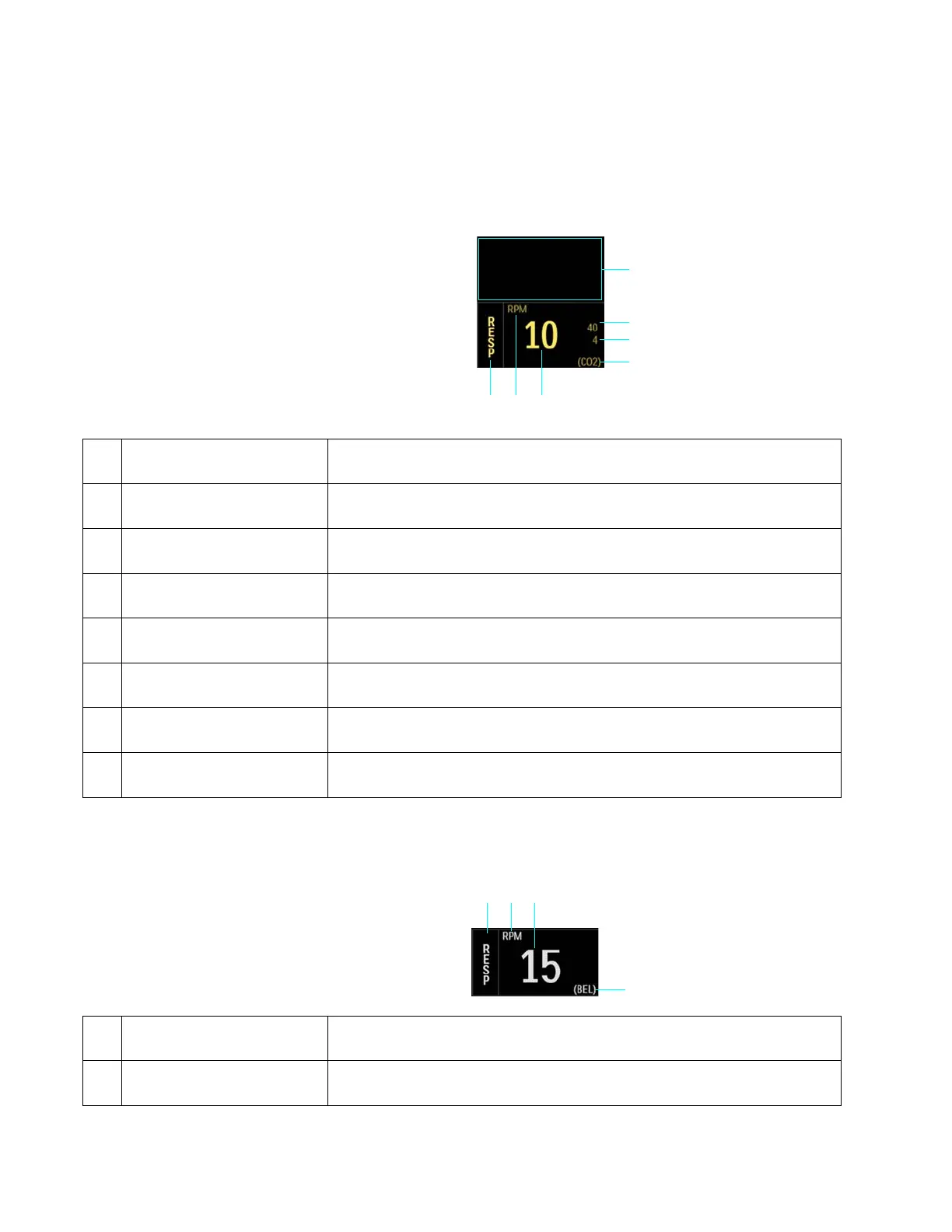

• WhenRESP>Source>CO2isselected,theCO2‐deri vedrespirationmeasurementand
alarmlimitsettings(displayedinthesamecolorastheCO2VSboxdata)willpopulatethe
RESPVSbox.
•WhenRESP>Source>BEL
isselected,thebellows‐derivedrespirationmeasurement
(displayedinwhite)willpopulatetheRESPVSbox.
5
2
3
4
1
6
7
Item Name Definition
1 Alarm flag area Displays CO2 (RESP) alarm flags when detected; see page 4-31.
2 Respiration rate upper alarm
limit
Is the upper limit setting for the CO2 (RESP) alarm, and accesses the CO2
(RESP) Alarm Limits menu (when Source isCO2)
3 Respiration rate lower alarm
limit
Is the lower limit setting for the CO2 (RESP) alarm, and accesses the CO2
(RESP) Alarm Limits menu (when Source isCO2)
4 Source label Is the source used for the respiration monitoring, where CO2 is CO2-derived;
see page 10-7
5 Respiration rate numeric Is the patient’s detected respiration rate measurement
6 Unit of measure
Indicates that the respiration rate numeric is given in RPM (respirations per
minute)
7 RESP VS box label
Indicates the respiration vital sign parameter, and accesses the RESP
menu
1
2
3
4
Item Name Definition
1 RESP VS box label
Indicates the respiration parameter, and accesses the RESP
menu
