146

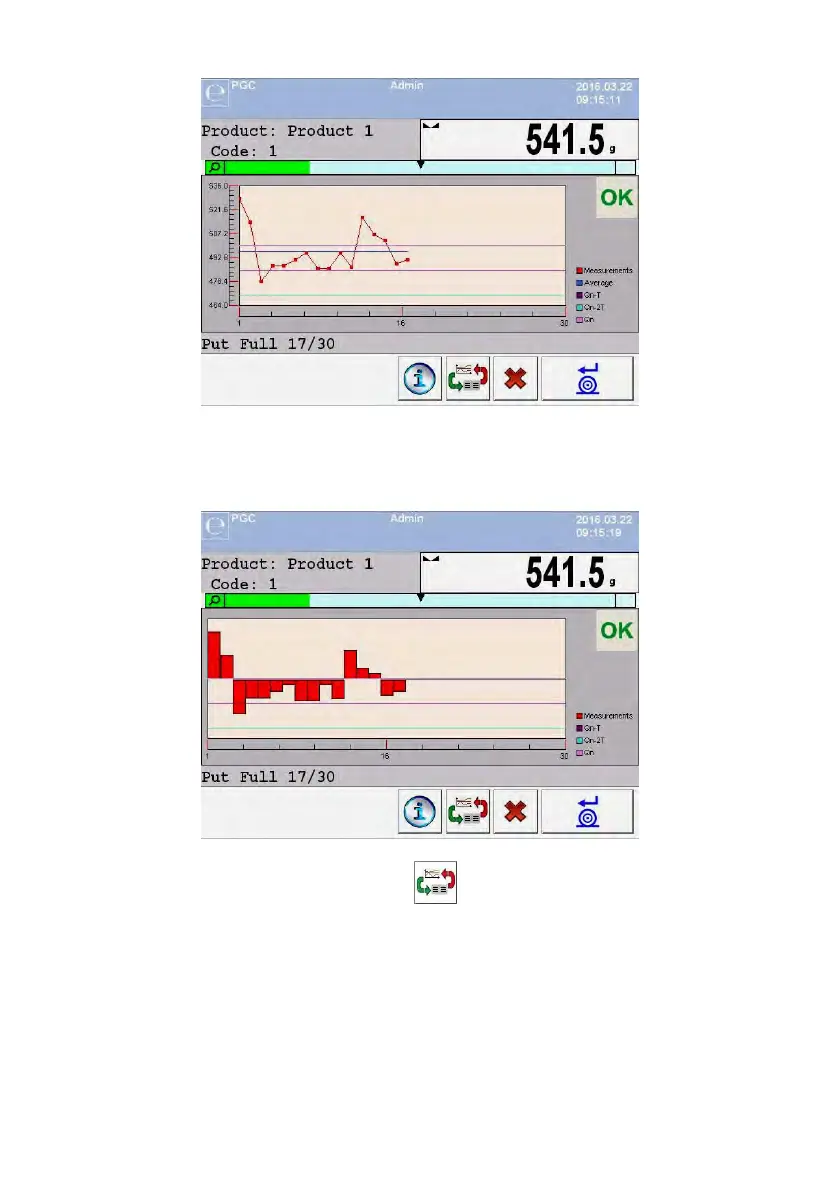

Additionally, pressing the workspace area enables an operator to change

its format (from a line chart to a bar chart):

In order to disable the chart press

key for the second time.

After completing the control the scale generates a process summary, and

the accomplished control is automatically saved in the scale database:
