RL78/G15 CHAPTER 6 TIMER ARRAY UNIT
R01UH0959EJ0110 Rev.1.10 Page 251 of 765
Mar 7, 2023

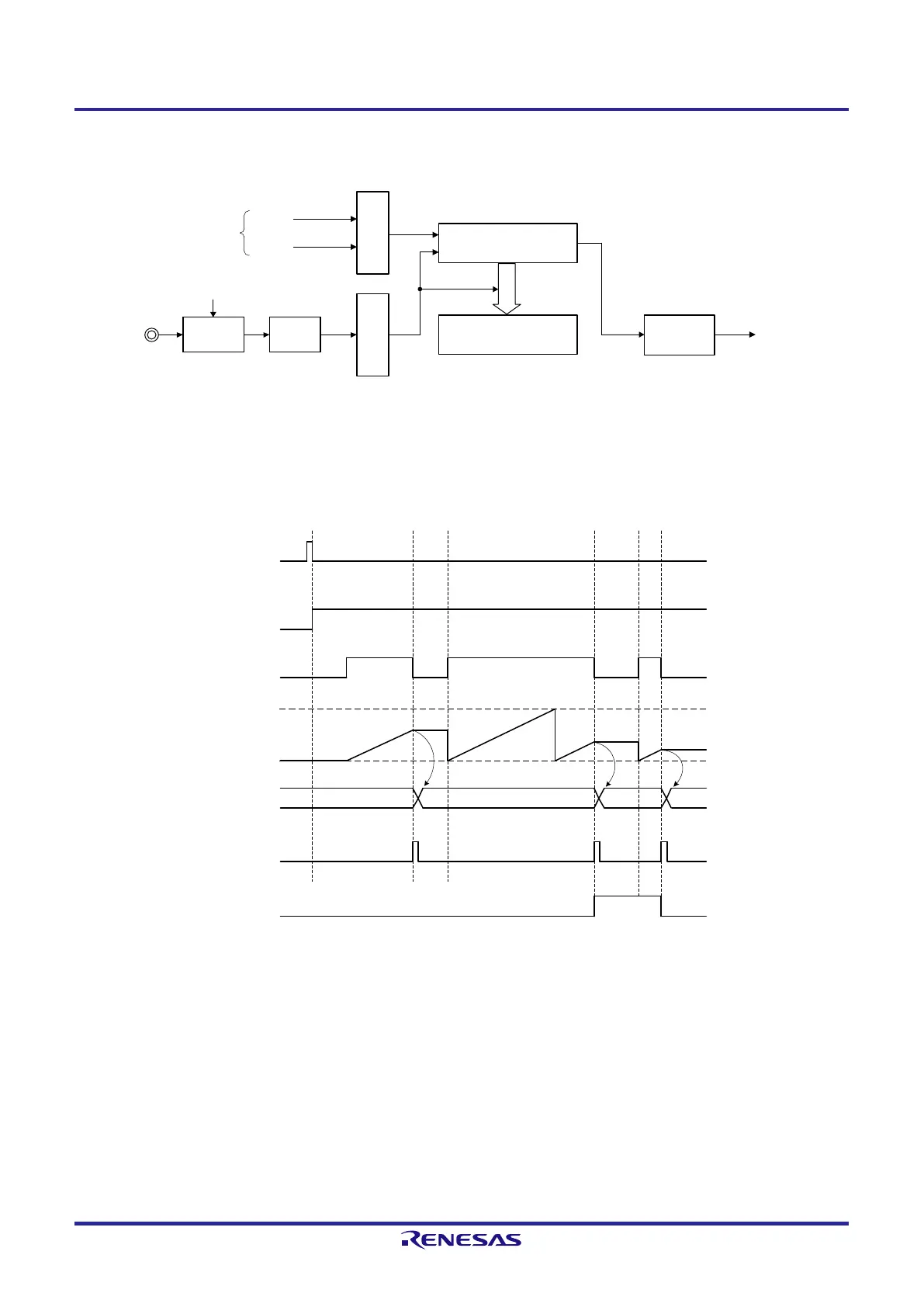

Figure 6-56. Block Diagram of Operation as Input Signal High-/Low-Level Width Measurement
Interrupt signal
(INTTMmn)
Timer data register mn
(TDRmn)
TImn pin
Timer counter register mn
(TCRmn)
Interrupt
controller
Edge
detection
Noise filter
TNFENmn
CKm0
CKm1
Operation clock
Note 1
Clock selection
Trigger
selection
Note 1. For channels 1 and 3, the clock can be selected from CKm0, CKm1, CKm2 and CKm3.
Figure 6-57. Example of Basic Timing of Operation as Input Signal High-/Low-Level Width Measurement
TSmn
TEmn
TDRmn
TCRmn
INTTMmn
OVF
0000H
0000H
TImn
FFFFH
a b
c
a
b
c
Remark 1. m: Unit number (m = 0), n: Channel number (n = 0 to 7)
Remark 2. TSmn: Bit n of timer channel start register m (TSm)
TEmn: Bit n of timer channel enable status register m (TEm)
TImn: TImn pin input signal
TCRmn: Timer count register mn (TCRmn)
TDRmn: Timer data register mn (TDRmn)
OVF: Bit 0 of timer status register mn (TSRmn)
