RL78/G15 CHAPTER 25 PACKAGE DRAWINGS

R01UH0959EJ0110 Rev.1.10 Page 757 of 765

Mar 7, 2023

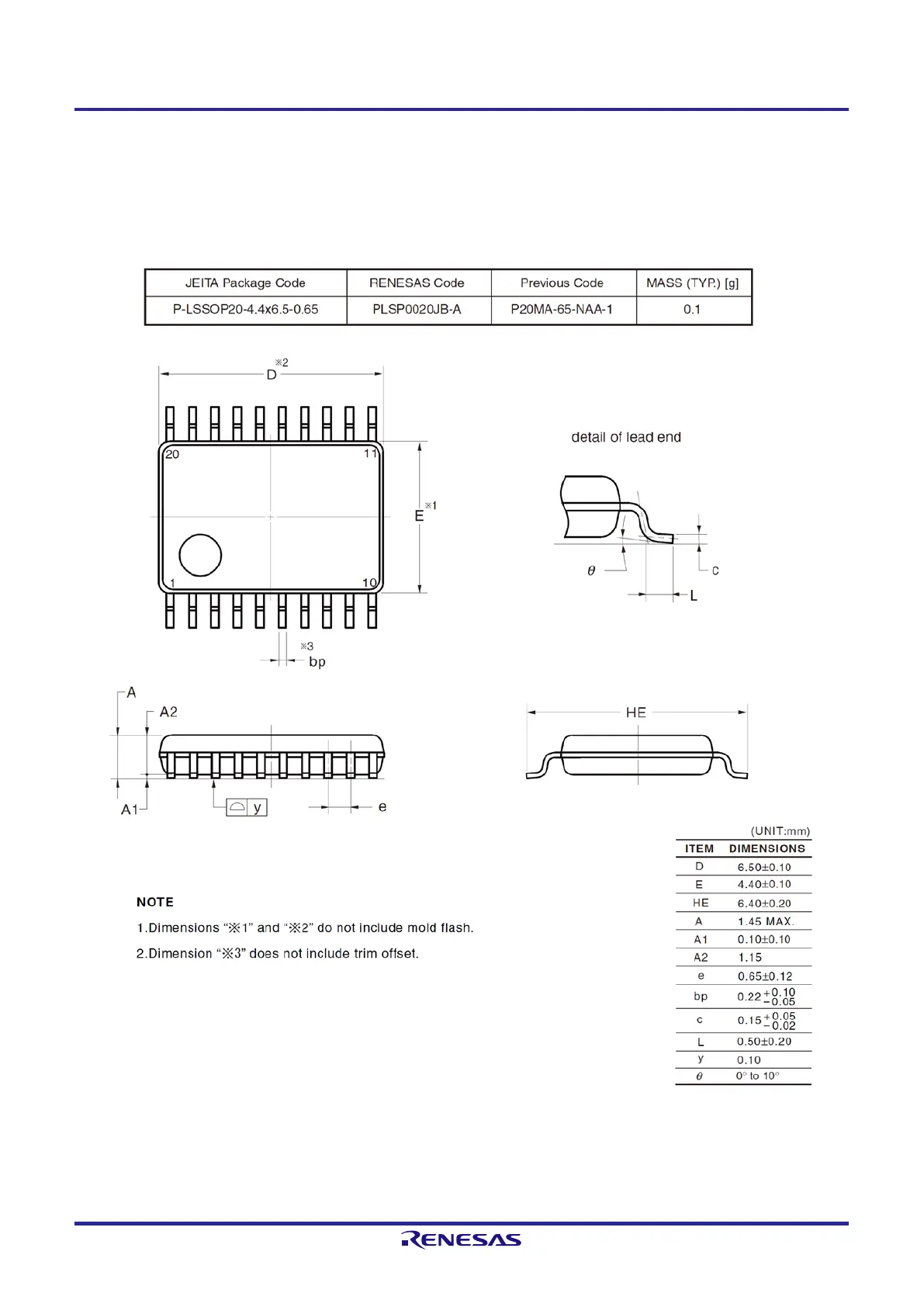

25.4 20-pin products

R5F12068MSP, R5F12068GSP, R5F12068ASP

R5F12067MSP, R5F12067GSP, R5F12067ASP
