RL78/G15 CHAPTER 6 TIMER ARRAY UNIT
R01UH0959EJ0110 Rev.1.10 Page 162 of 765
Mar 7, 2023
6.1 Functions of Timer Array Unit
Timer array unit has the following functions.
6.1.1 Independent channel operation function
By operating a channel independently, it can be used for the following purposes without being affected by the operation
mode of other channels.

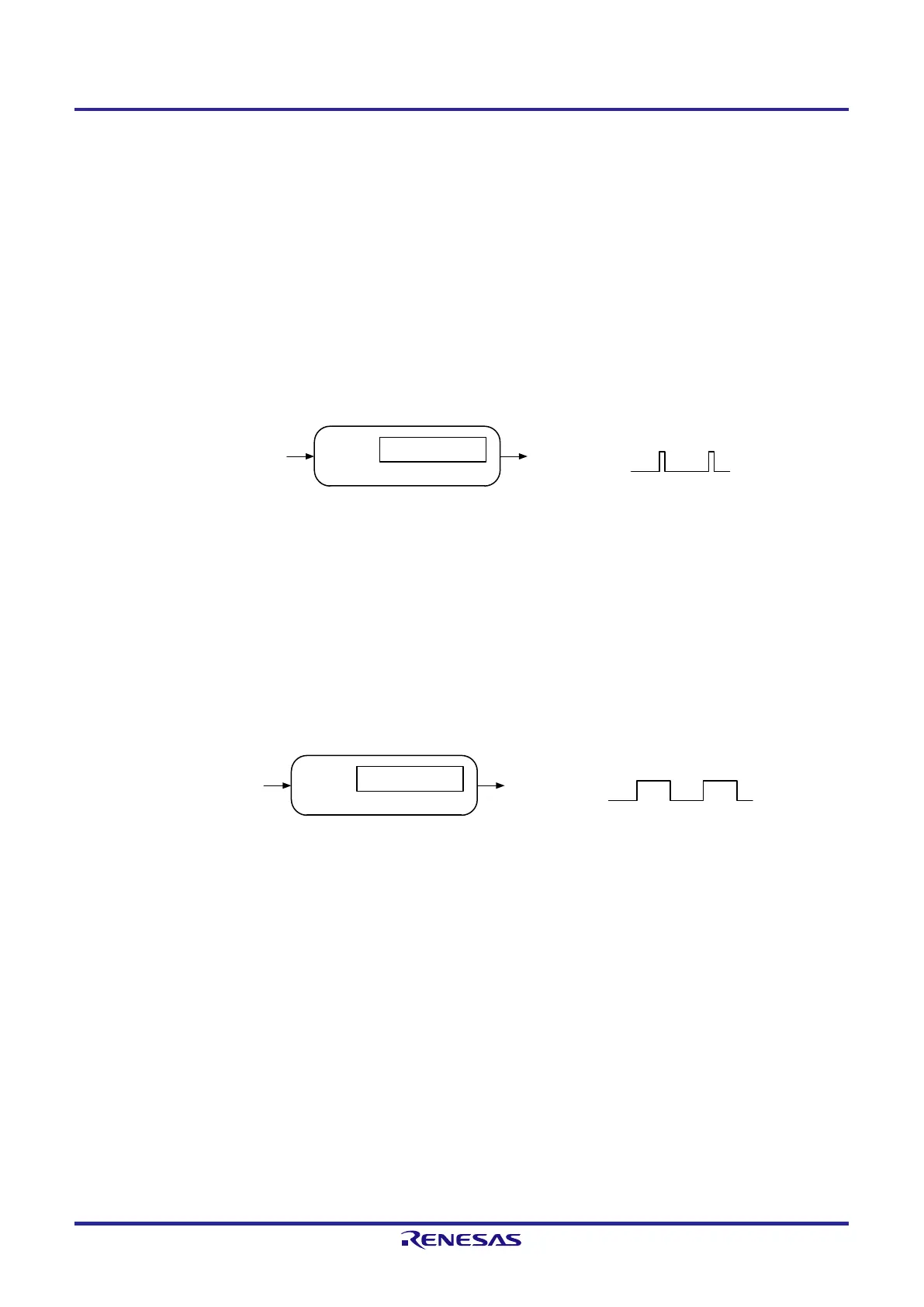

1) Interval timer
Each timer of a unit can be used as a reference timer that generates an interrupt (INTTMmn) at fixed intervals.
Channel n
Interrupt signal
(INTTMmn)
Operation clock
Compare operation
Remark 1. m: Unit number (m = 0), n: Channel number (n = 0 to 7)
Remark 2. The presence or absence of timer I/O pins of channel 0 to 7 depends on the product. See Table 6-2
Timer I/O Pins provided in Each Product for details.
2) Square wave output
A toggle operation is performed each time an INTTMmn interrupt is generated and a square wave with a duty factor of
50% is output from a timer output pin (TOmn).
Channel n
Timer output
(TOmn)
Operation clock
Compare operation
Remark 1. m: Unit number (m = 0), n: Channel number (n = 0 to 7)
Remark 2. The presence or absence of timer I/O pins of channel 0 to 7 depends on the product. See Table 6-2
Timer I/O Pins provided in Each Product for details.
