RL78/G15 CHAPTER 19 FLASH MEMORY

R01UH0959EJ0110 Rev.1.10 Page 661 of 765

Mar 7, 2023

19.2.2 Communication mode

Communication between the external device and the RL78 microcontroller is established by serial communication using

the TOOL0 pin via the dedicated UART of the RL78 microcontroller.

Transfer rate: Fixed to 115200 bps

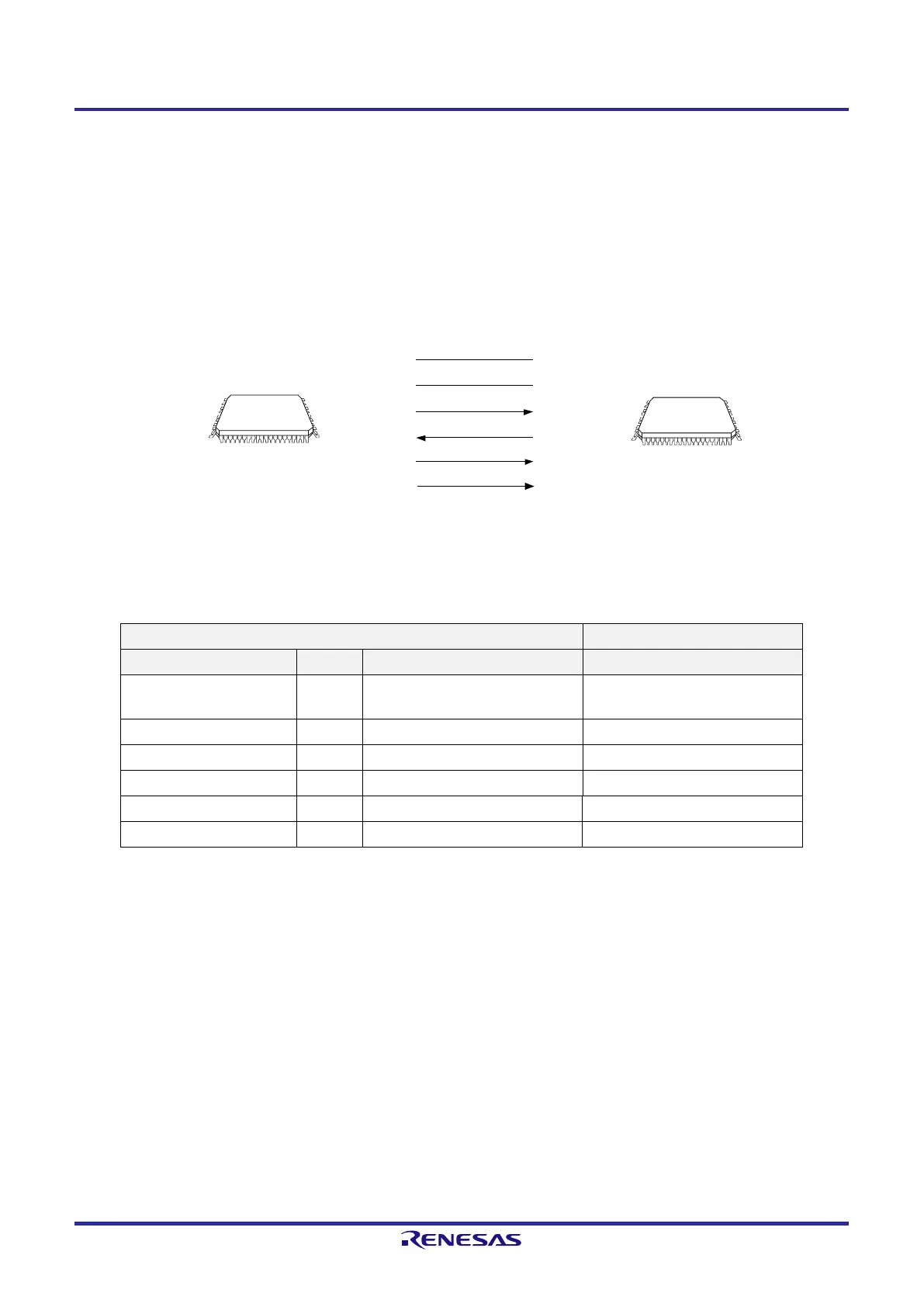

Figure 19-4. Communication with External Device

RL78 microcontroller

GND

RESET_OUT

TxD

RxD

TOOLTxD

TOOLRxD

PORT

TOOL0

External device

(such as microcontroller and ASIC)

______

RESET

The external device generates the following signals for the RL78 microcontroller.

Table 19-4. Pin Connection

External Device RL78 microcontroller

Signal Name I/O Pin Function Pin Name

I/O

voltage generation/

power monitoring

GND — Ground V

RESET_OUT Output Reset signal output RESET

¯¯¯¯¯¯

RxD Input Receive signal TOOLTxD

TxD Output Transmit signal TOOLRxD

PORT Output Mode signal TOOL0


