RL78/G15 CHAPTER 3 CPU ARCHITECTURE

R01UH0959EJ0110 Rev.1.10 Page 79 of 765

Mar 7, 2023

3.4.2 Immediate addressing

[Function]

Immediate addressing stores immediate data of the instruction word in the program counter, and specifies the program

address to be used as the branch destination.

For immediate addressing, CALL !!addr20 or BR !!addr20 is used to specify 20-bit addresses and CALL !addr16 or

BR !addr16 is used to specify 16-bit addresses. 0000 is set to the higher 4 bits when specifying 16-bit addresses.

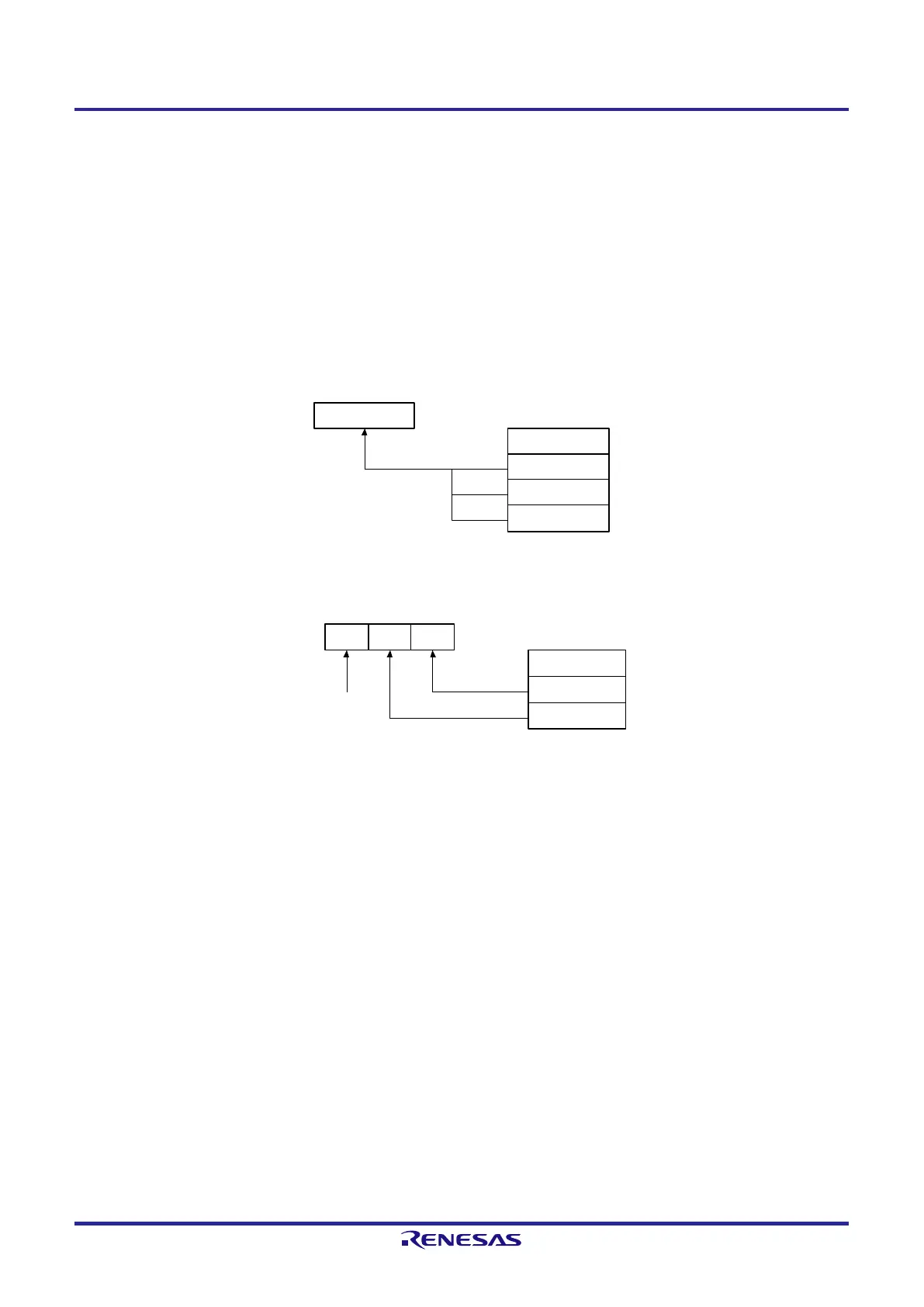

Figure 3-11. Example of CALL !!addr20/BR !!addr20

Instruction code

OP-code

Low Addr.

High Addr

Seg Addr.

Figure 3-12. Example of CALL !addr16/BR !addr16

Instruction code

OP-code

Low Addr.

High Addr.

0000
