RL78/G15 CHAPTER 1 OUTLINE

R01UH0959EJ0110 Rev.1.10 Page 27 of 765

Mar 7, 2023

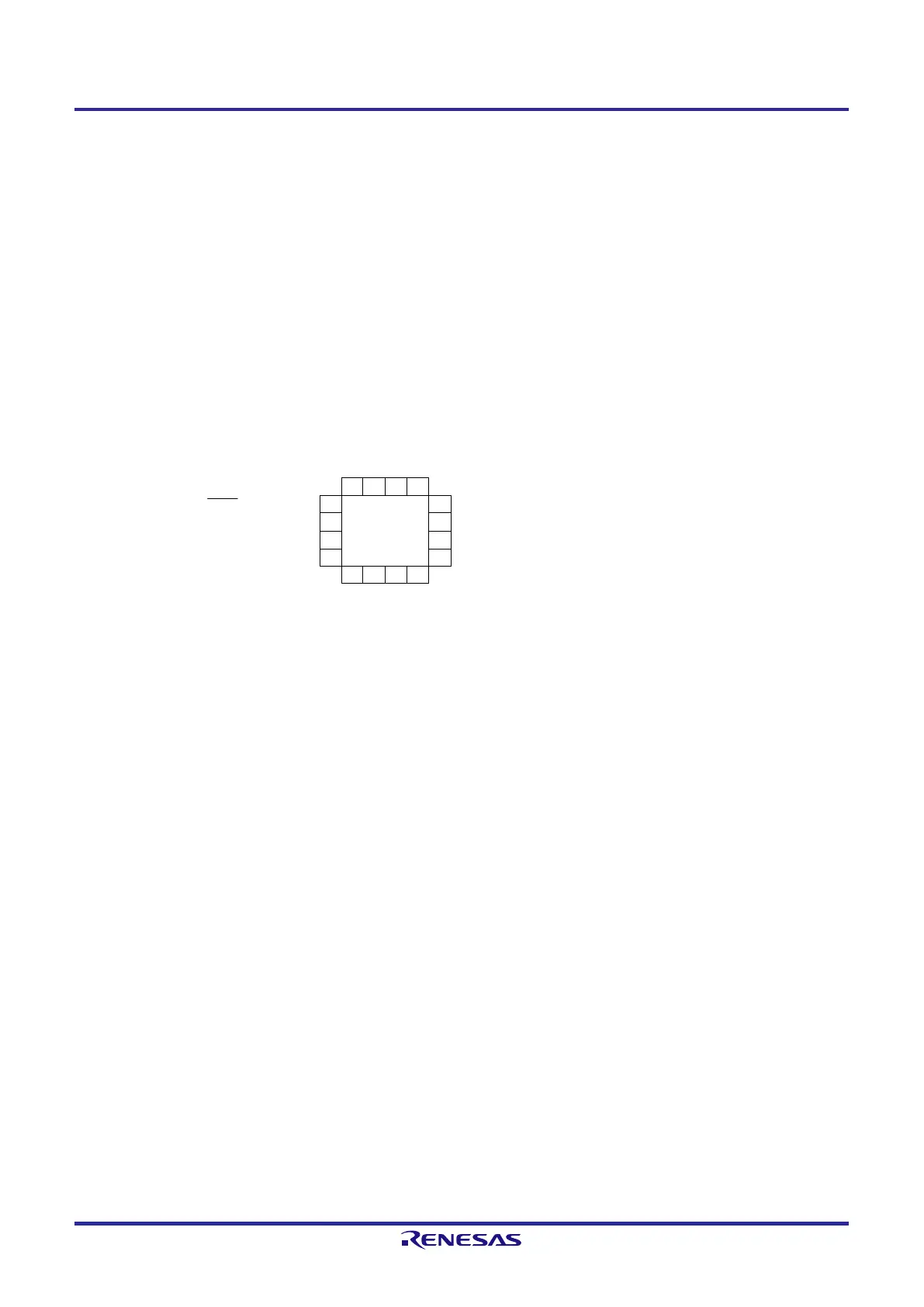

 16-pin plastic HWQFN (3 × 3 mm, 0.5-mm pitch)

RL78/G15

(Top View)

P125/RESET/INTP1/(VCOUT0)

P137/INTP0/TI00

P122/X2/EXCLK/TI05/TO05/(INTP2)

P121/X1/TI07/TO07/(INTP3)

16 15 14 13

5 6 7 8

P05/ANI4/TI02/TO02/SO01/(INTP6)/(SCK00/SCL00)/(SI00/RxD0/SDA00)

P04/ANI3/IVREF0/INTP3/TI01/TO01/(SI00/RxD0/SDA00)/(SO00/TxD0)

P03/ANI2/IVCMP0/INTP4/TO00/(TI00)/(SO00/TxD0)

P02/PCLBUZ0/ANI1/VCOUT0/INTP7/SCK00/SCL00/(TI01/TO01)/(SO01)

P41/TI03/TO03/(INTP4)/(TI02/TO02)

P07/ANI6/SCK01/SCL01/SDAA0/(INTP5)/(TO03)

P06/ANI5/SI01/SDA01/SCLA0/(PCLBUZ0)/(INTP7)/(SCK00/SCL00)

P00/TOOLTxD/INTP6/SO00/TxD0/(SCK01/SCL01)/(SCLA0)

P01/TOOLRxD/ANI0/INTP5/SI00/RxD0/SDA00/(TI02/TO02)/(SI01)/(SDA01)/(SDAA0)

P40/TOOL0/INTP2/(PCLBUZ0)/(TI01/TO01)
