RL78/G15 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0959EJ0110 Rev.1.10 Page 423 of 765

Mar 7, 2023

(3) Processing flow (in single-transmission/reception mode)

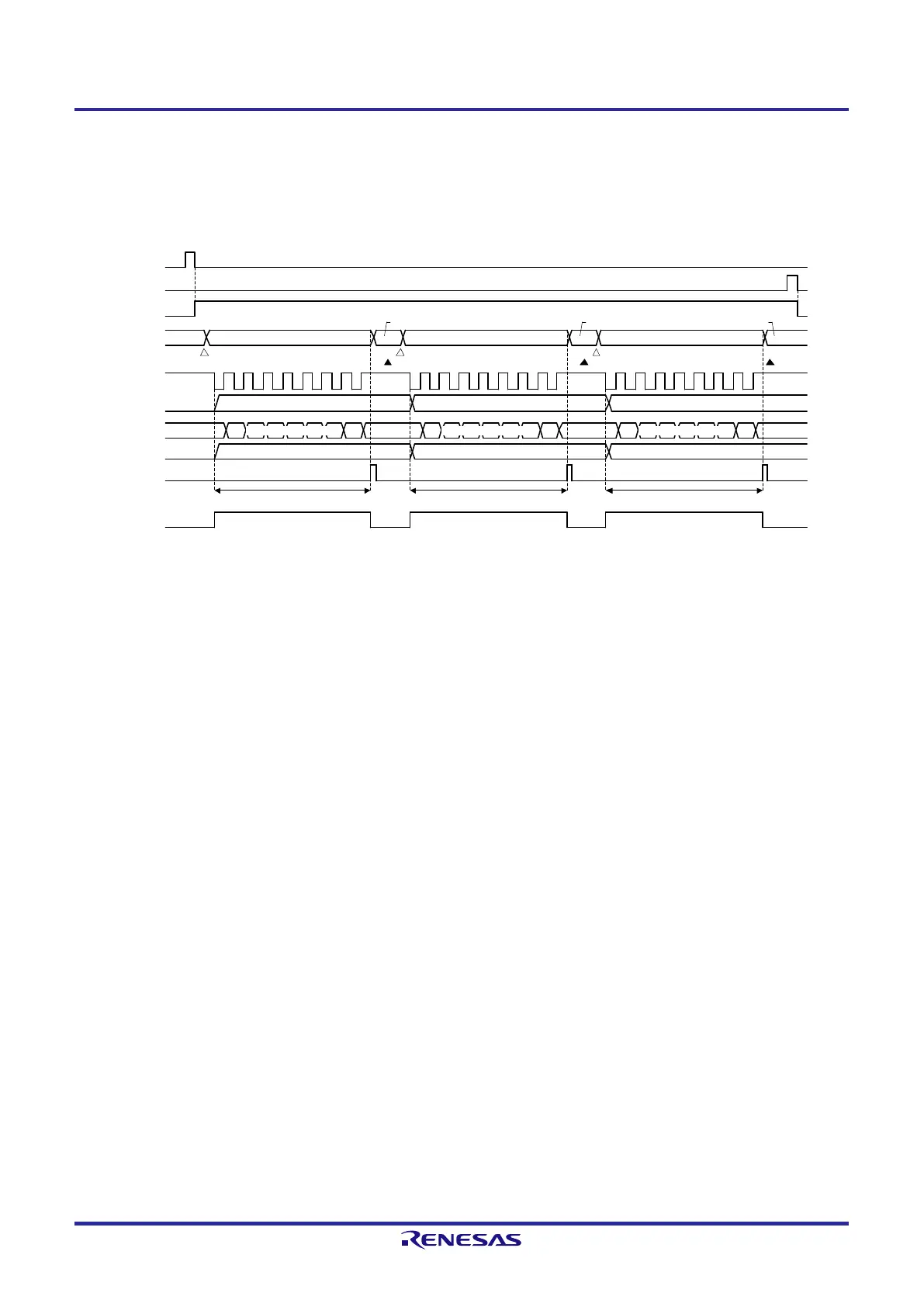

Figure 12-41. Timing Chart of Master Transmission/Reception (in Single-Transmission/Reception Mode) (Type 1:

DAPmn = 0, CKPmn = 0)

Shift

Slp pin

SCKp pin

Data transmission/receptionData transmission/receptionData transmission/reception

SSmn

STmn

SEmn

SDRmn

INTCSIp

TSFmn

Transmit data 1 Transmit data 2 Transmit data 3

Receive data

1 Receive data 2 Receive data 3

Reception & shift operation Reception & shift operation Reception & shift operation

Write Write Write

Read Read Read

Receive data

1 Receive data 2 Receive data 3

SOp pin

Transmit data 1 Transmit data 2 Transmit data 3

Remark m: Unit number (m = 0), n: Channel number (n = 0, 1), p: CSI number (p = 00, 01), mn = 00, 01
