b) STOP mode release by reset signal generation
When the reset signal is generated, STOP mode is released, and then, as in the case with a normal reset operation,
the program is executed after branching to the reset vector address.

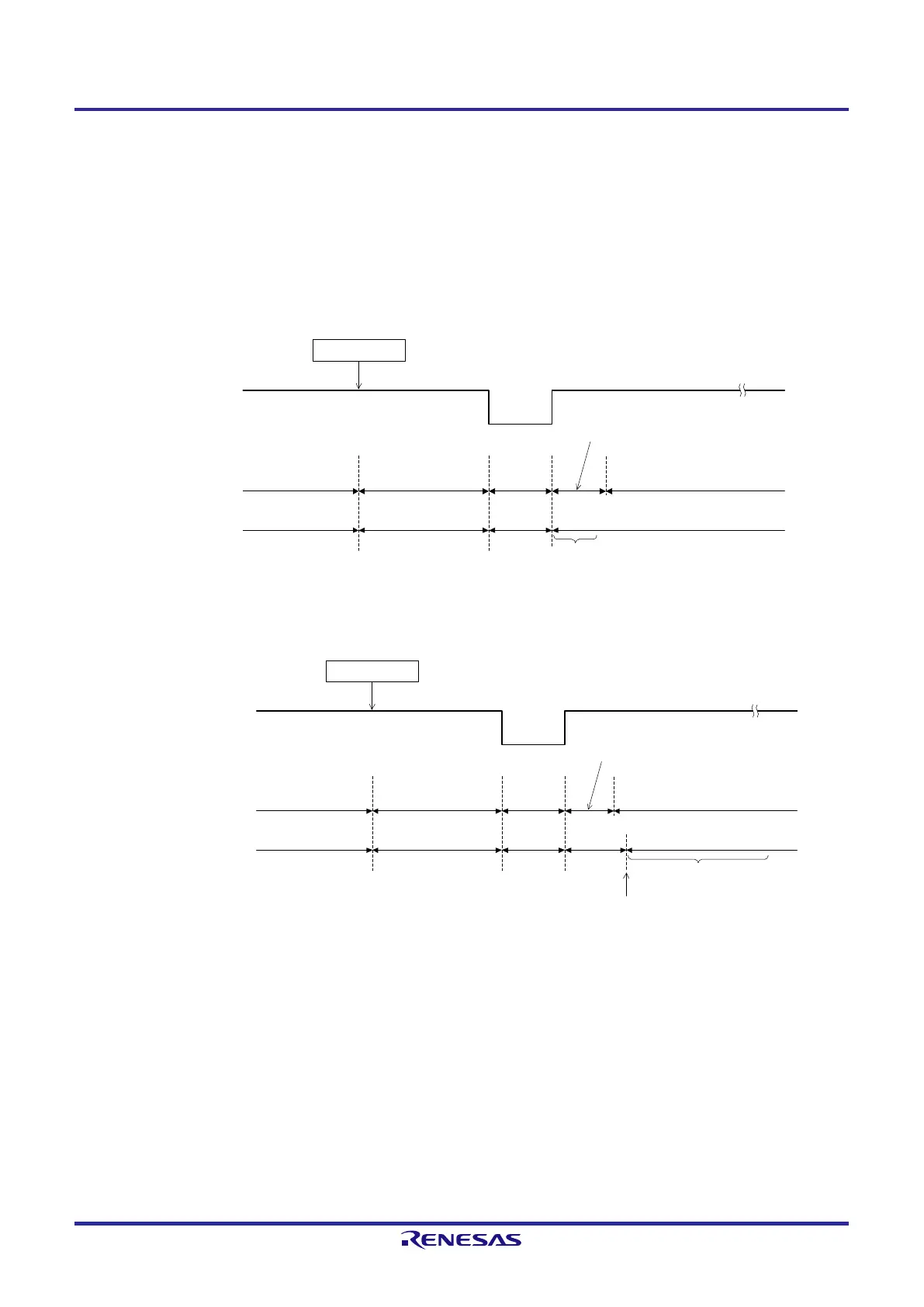

Figure 15-4. STOP Mode Release by Reset Signal Generation
(1) When high-speed on-chip oscillator clock is used as CPU clock
__________
Reset signal
Reset period
Oscillation
stopped
Oscillates
Reset processing
Note 1
Wait for oscillation
accuracy stabilization
Status of CPU
High-speed on-chip
oscillator clock
Normal operation
(high-speed on-chip
oscillator clock)
STOP mode
Normal operation
(high-speed on-chip oscillator clock)
Oscillation stoppedOscillates
STOP instruction
(2) When high-speed system clock is used as CPU clock (16-pin and 20-pin products only)
__________
Reset signal
Reset period
Oscillation
stopped
Oscillates
Oscillation stabilization time
(check by using OSTC register)
Status of CPU
High-speed system clock
(X1 oscillation)
Normal operation
(high-speed system clock)
STOP mode
Normal operation
(high-speed on-chip oscillator clock
)
Starting X1 oscillation is
specified by software.
Oscillation
stopped
Reset processing
Note 1
STOP instruction
Oscillation stoppedOscillates
Note 1. For the reset processing time, see CHAPTER 16 RESET FUNCTION. For the reset processing time of the
SPOR circuit, see CHAPTER 17 SELECTABLE POWER-ON-RESET CIRCUIT.
