4.Replacement and Adjustment
99
Exterior Covers
Front Cover Unit

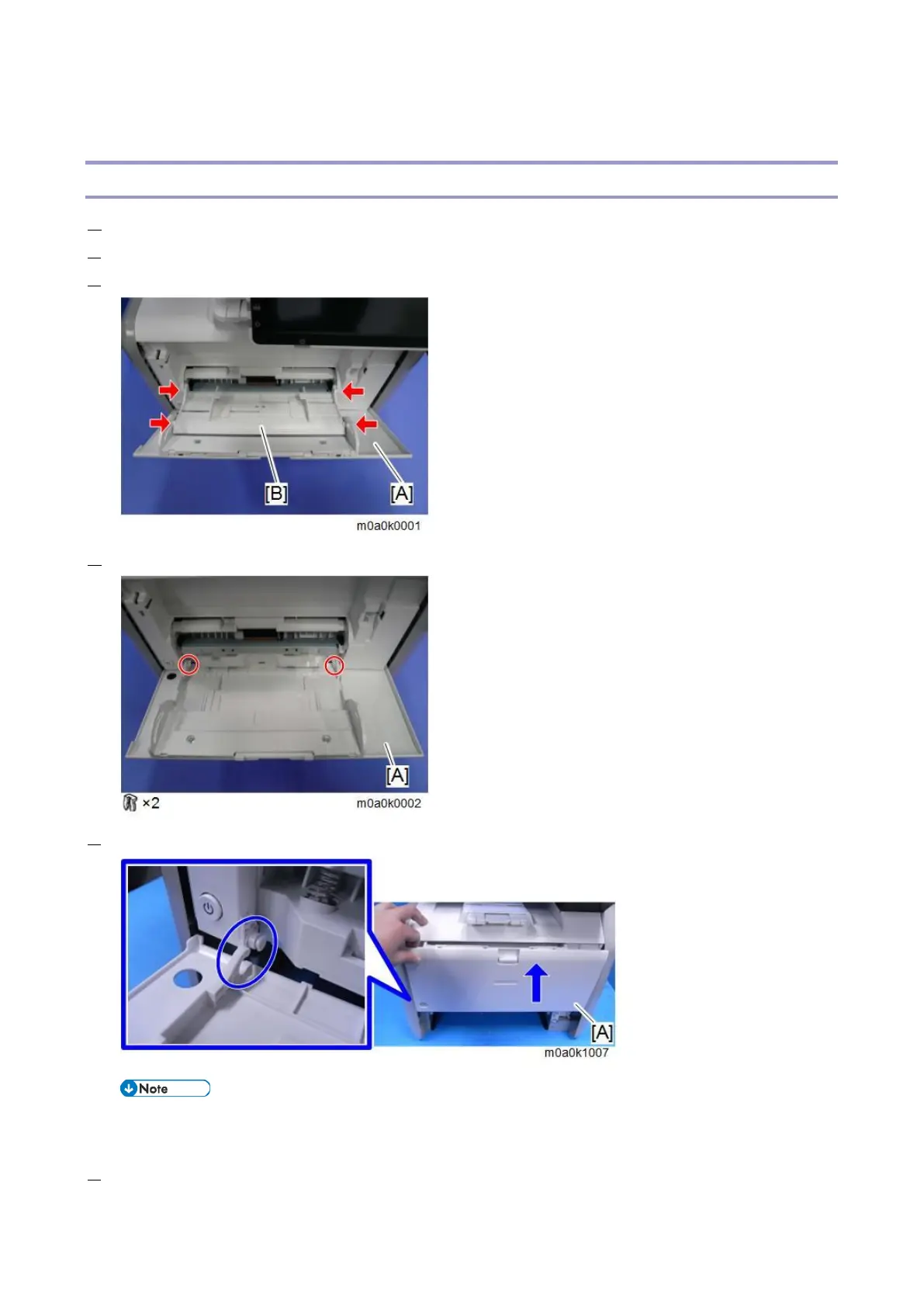

1. Remove the paper cassette
2. Open the bypass tray [A].
3. Release the four hinges indicated below to detach the paper guide plate [B].
4. Remove the clip rings on the bypass tray [A].
5. Release both end hinges of the bypass tray [A] to detach it.
ï‚· To remove the bypass tray, lift the left hinge first to release while lifting the bypass tray.
ï‚· The left hinge is C-cut.
6. Remove the screw on the front cover [A] in order to release the strap that attaches the front cover to the
