Image Position Adjustment
 Adjust the blank margin width only if it cannot be adjusted by registration (leading edge/side-to-side). First
adjust C and D; then A and B.

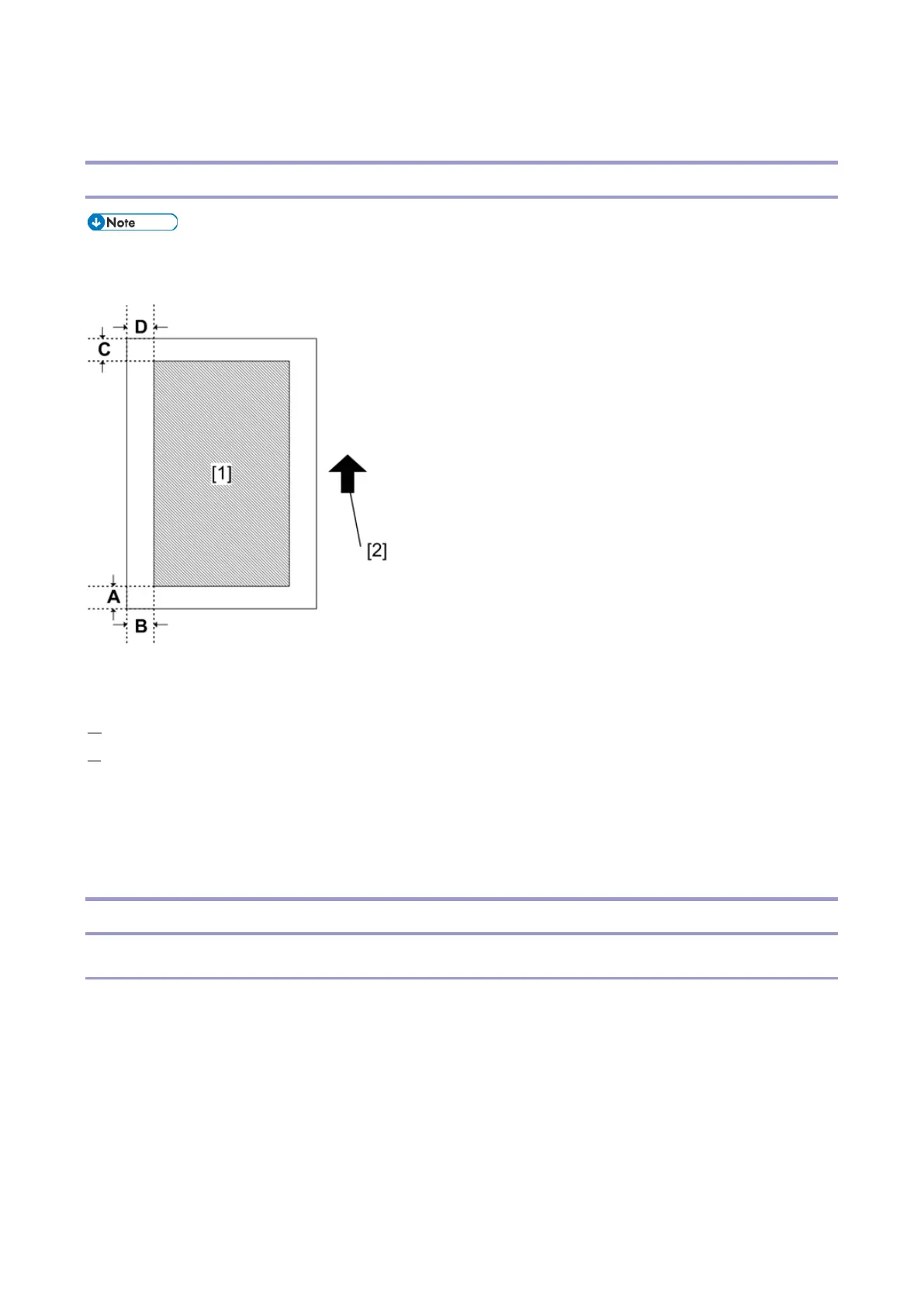

 [1]: Print area
 [2]: Paper feed direction
1. Enter the SP mode, and then print the test pattern (17: Trim Area ) with SP2-109-001.
2. Adjust the blank margin width of the image with SP2-103-(001-004).
 Leading edge: 2.7 to 9.9 mm (Default: 3.0 mm)
 Trailing edge: 0.0 to 9.9 mm (Default: 2.0 mm)
 Left: 0.0 to 9.9 mm (Default: 2.0 mm)
 Right: 0.0 to 9.9 mm (Default: 2.0 mm)
Registration Adjustment
Print Area
Check that the adjustment meets the product specification.
