Ricoh M0A0 - Paper End Detection

1.Detailed Descriptions
7
Paper End Detection

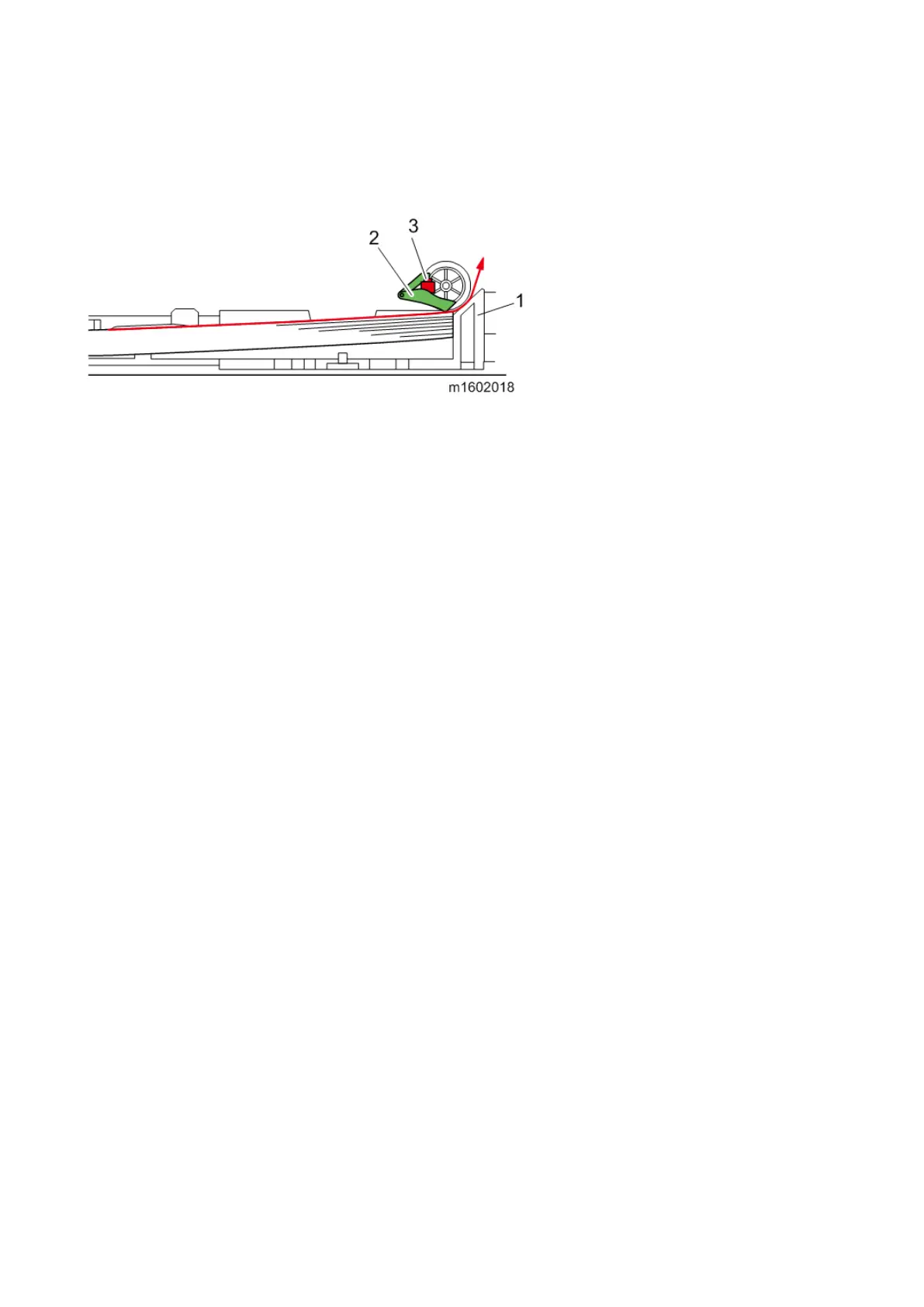

When the optional bank [1] runs out of paper, the feeler [2] drops into the cutout in the bottom plate to actuate the
paper end sensor [3].
1. Optional bank
2. Feeler
3. Paper end sensor
