6.Troubleshooting
304
SPDF Image Adjustment
Registration

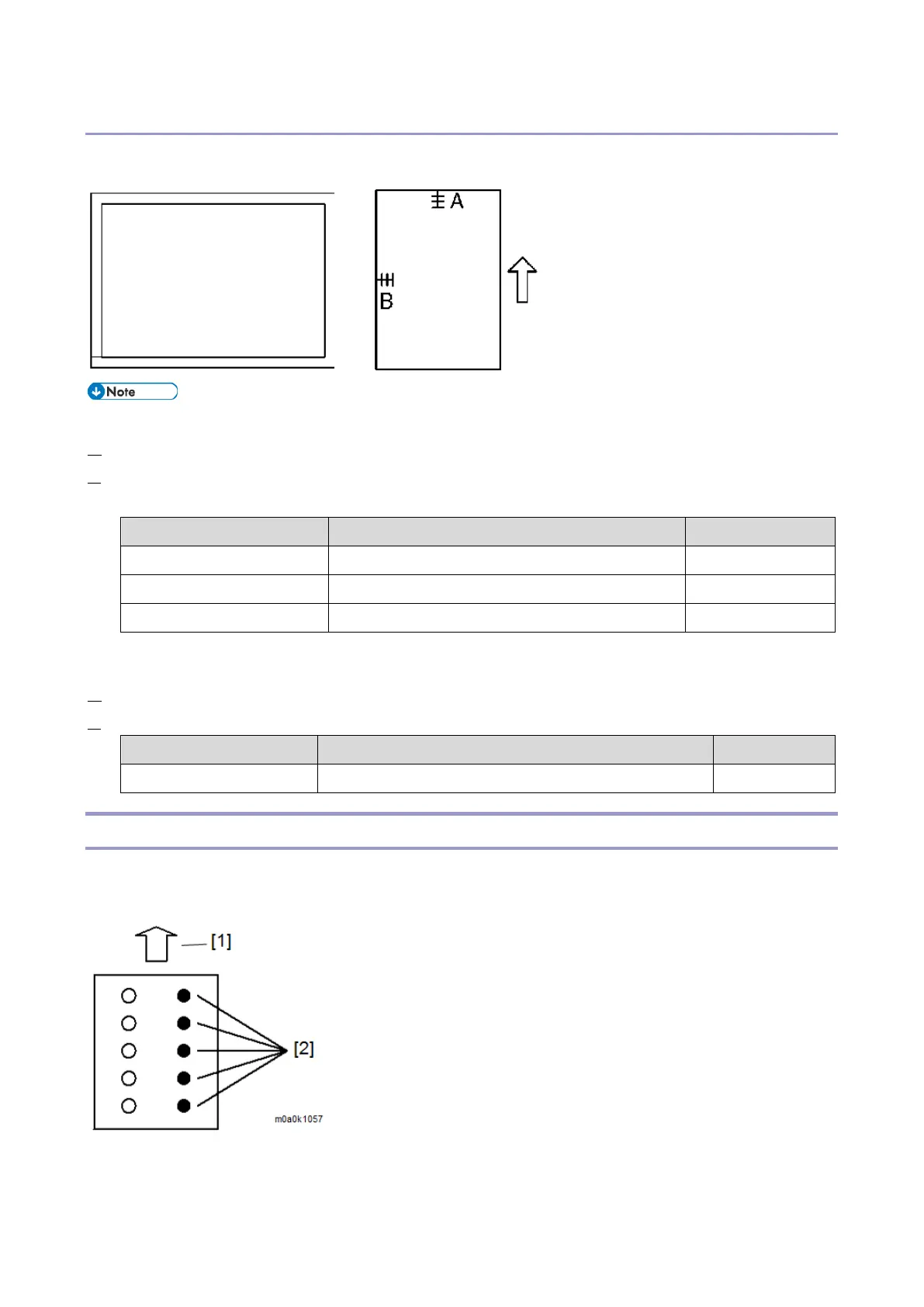

 Use the above test charts to adjust these settings.
1. Place the temporary test chart on the SPDF and make a copy from one of the paper feed trays.
2. Check the registrations, and adjust as necessary with the appropriate SP modes, as follows.
Allowable registration errors: 4.2 ± 2 mm (Leading edge) / 2 ± 1 mm (Left, right)
SP No.
Name
Range
SP6-006-001
Side-to-Side Regist: Front
± 2.0 mm
SP6-006-003
Leading Edge Regist: Front
± 5.0 mm
SP6-006-007
Rear Edge Erase
± 5.0 mm
Magnification
1. Place the temporary test chart on the SPDF and make a copy from one of the paper feed trays.
2. Check the magnification and adjust it with SP6-017-001 if necessary.
SP No.
Name
Range
SP6-017-001
SPDF Adjustment Magnification
± 5.0 %
Problem at Regular Intervals
Image problems may appear at regular intervals that depend on the circumference of certain components.
The following diagram shows the possible symptoms (black or white dots at regular intervals or other problems).
1. Paper feed direction
2. Problems at regular intervals
