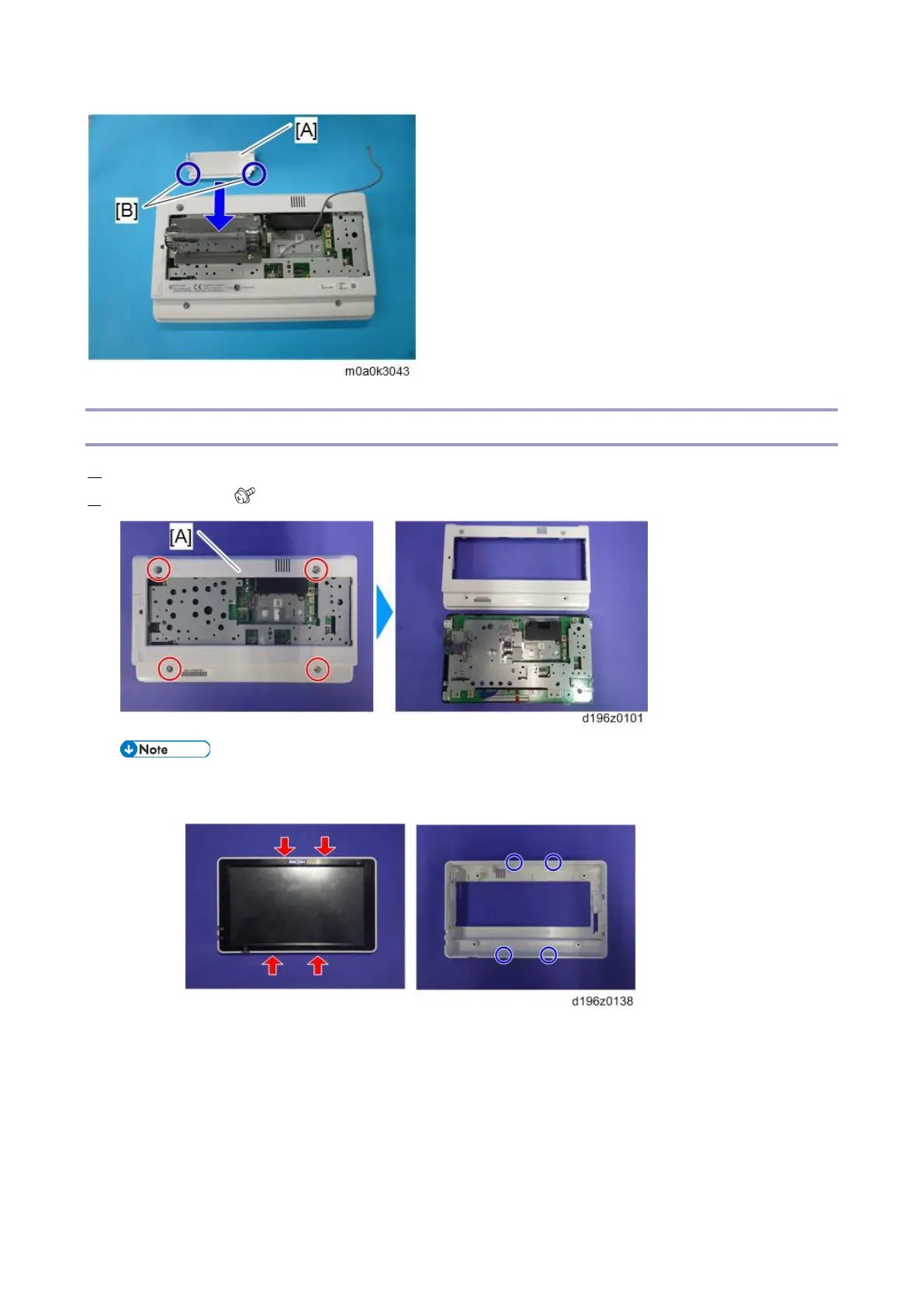

1.Replacement and Adjustment
6
CPU Board
1. Operation panel unit (Operation Panel Unit)
2. Bottom cover [A] ( ×4)
ï‚· There are four hooks inside the operation panel unit. Before removing the operation panel bottom cover,
check the photos below.
