4.Replacement and Adjustment
142
ï‚· Use pliers to pinch the link in order to release it.

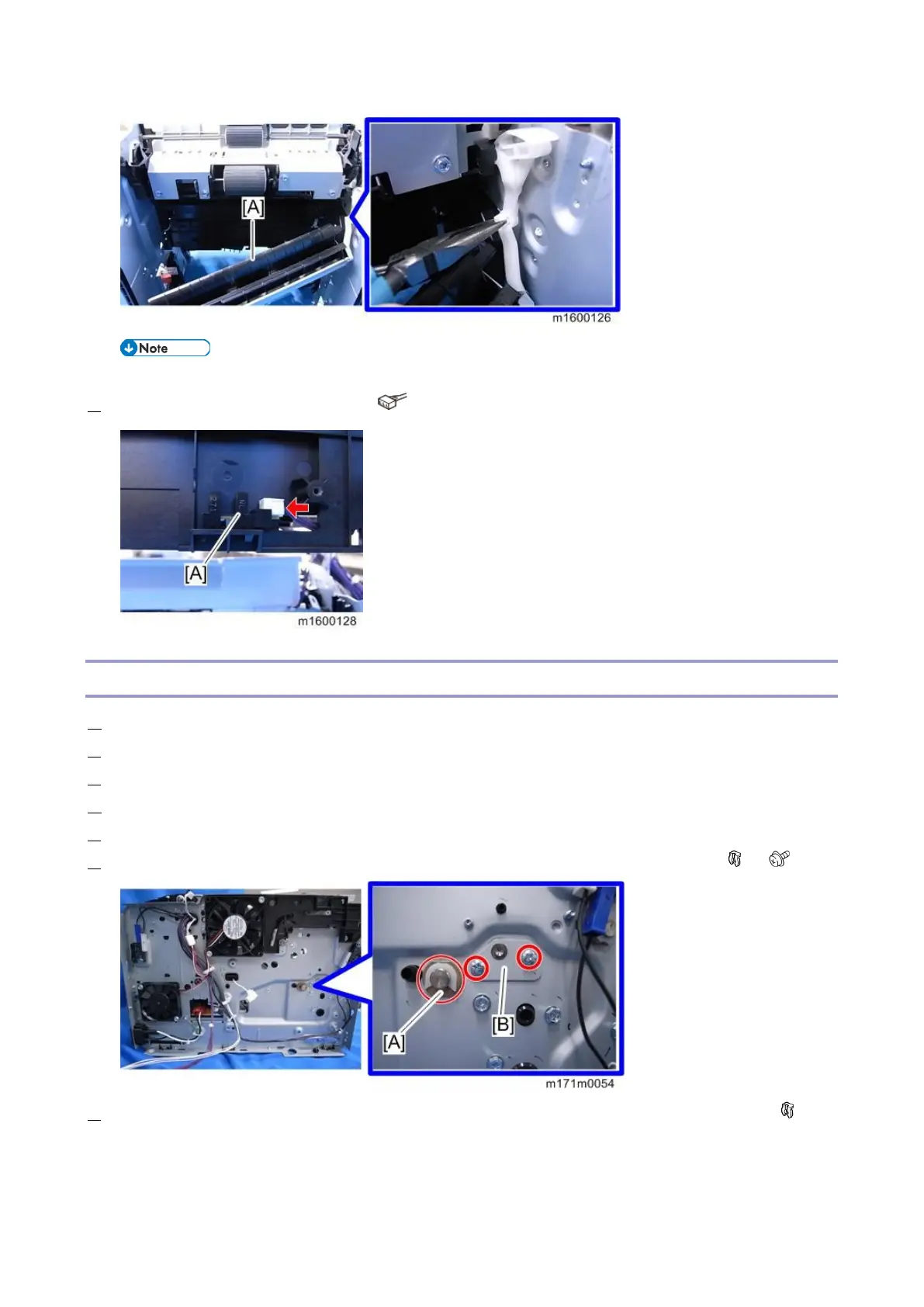

6. Remove the duplex entrance sensor [A]. ( x1, Hook)
Registration Roller (Driven)
1. Remove the drive unit. (Drive Unit)
2. Remove the gear unit. (Gear Unit)
3. Remove the paper size switch (Paper Size Switch)
4. Remove the registration sensor. (Registration Sensor)
5. Remove the HVPS with bracket. (HVPS with Bracket)
6. Release the bearing [A] ×1 at the left end of the registration roller (drive) and fixing plate [B] ×1. ( x1, ×2)
7. Release the bearing at the right end of the registration roller (drive), and remove the grounding plate [A]. ( x 1,
