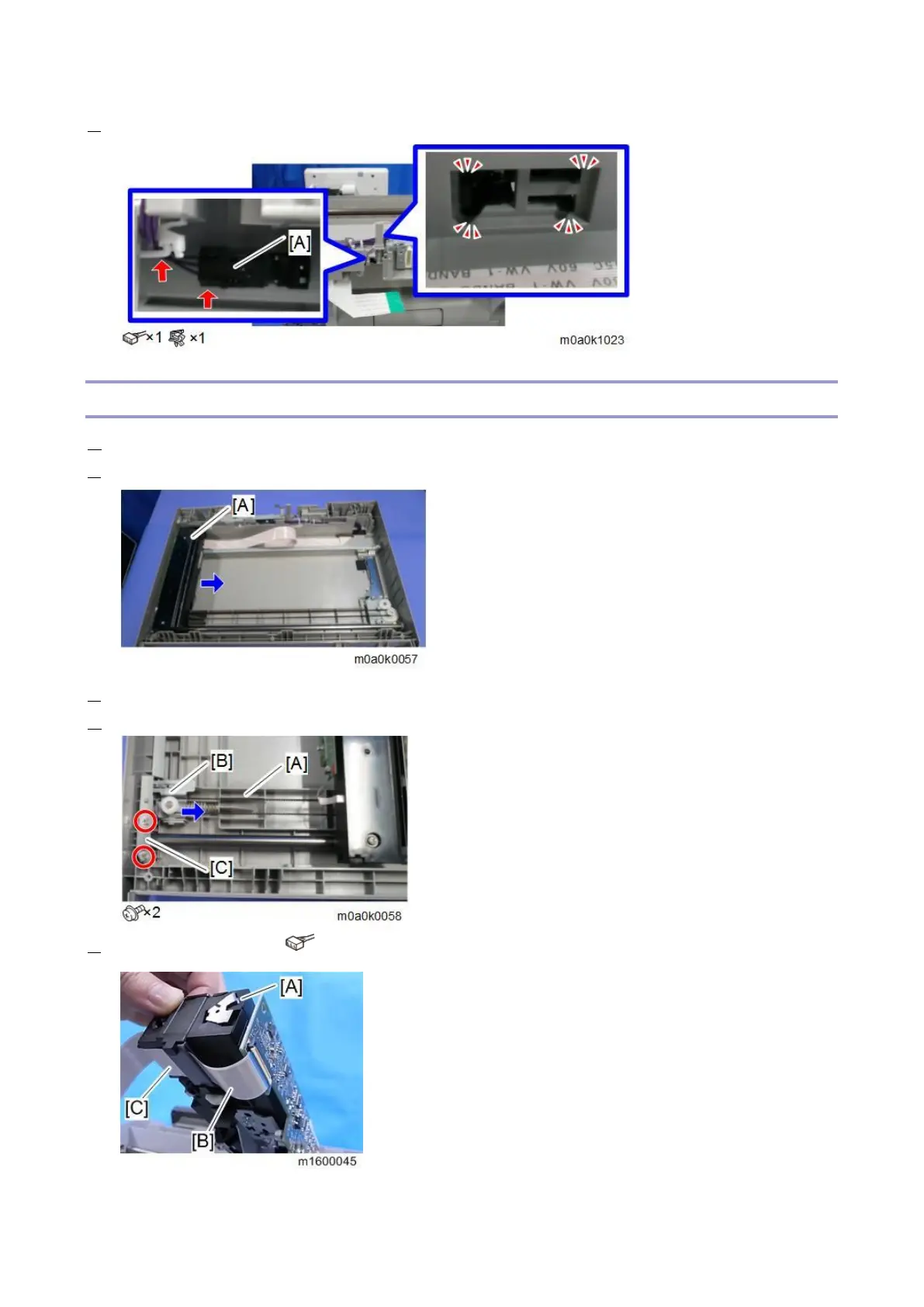

2. Remove the SPDF open/closed sensor [A].
Carriage
1. Remove the scanner upper cover. (Scanner Upper Cover)
2. Move the carriage [A] to the right.
3. Slide the bracket [B] as shown below to detach the belt [A] from the pulley.
4. Remove the bracket [C].
5. Remove the carriage [A]. ( x1)
